Copper Conductor PVC Insulated Electric Wire 2.5mm2

Copper Conductor PVC Insulated Electric Wire 2.5mm2 photo-1

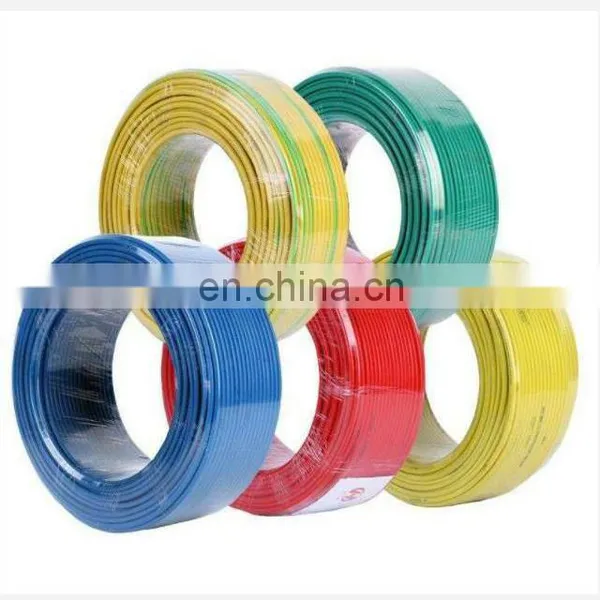

Copper Conductor PVC Insulated Electric Wire 2.5mm2 photo-2

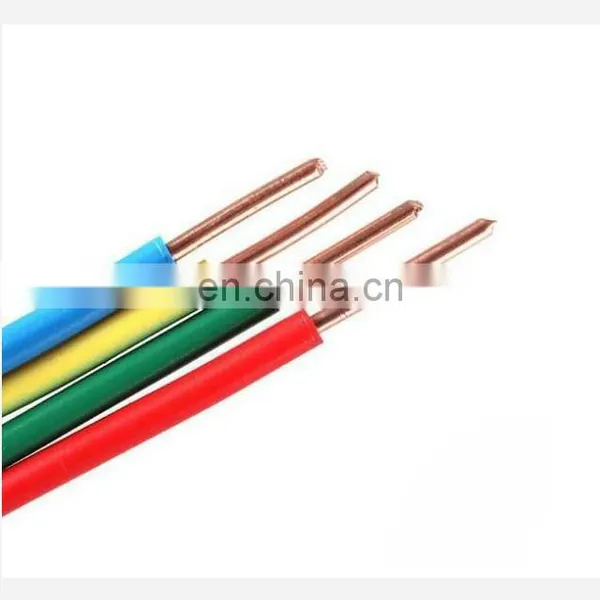

Copper Conductor PVC Insulated Electric Wire 2.5mm2 photo-3
Copper Conductor PVC Insulated Electric Wire 2.5mm2 photo-4
Copper Conductor PVC Insulated Electric Wire 2.5mm2 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.



Copper conductor PVC insulated electric wire 2.5mm2

Product Description





Product name:  Copper conductor PVC insulated electric wire 2.5mm2(BV)



Conductor:        Copper



Insulation:          RoHS 70℃ PVC,The maximum temperature of the conductor is not exceeding 70℃;



Rated voltage:  450/750V



colour:              Red,Yellow,Blue,Green,Black,White,Green/Yellow



Packing length:100m/roll



application:    Applicable to AC voltage 450/750V and the following power equipment,

                         daily electrical appliances, instruments and telecommunications equipment,

                         special flexible wire for distribution cabinet.



Detailed Size and technical specification:


Nominal section (mm²)

Number of conductors

Toplimit
of over alldiameter
(mm)

Maximum DC resistance (20℃) (Ω/km)
Minium insulation
resistance (20℃)
(MΩ·km)
1.5
1
3.2
12.1
0.011
1.5
7
3.3
12.1
0.01
2.5
1
3.9
7.41
0.01
2.5
7
4
7.41
0.009
4
1
4.4
4.61
0.0085
4
7
4.6
4.61
0.0077
6
1
5
3.08
0.007
6
7
5.2
3.08
0.0065
10
7
6.7
1.83
0.0065
16
7
7.8
1.15
0.005
25
7
9.7
0.727
0.005
35
7
10.9
0.524
0.004



We provide lowest price at high quality, for more info, please email me,  sales002(at)

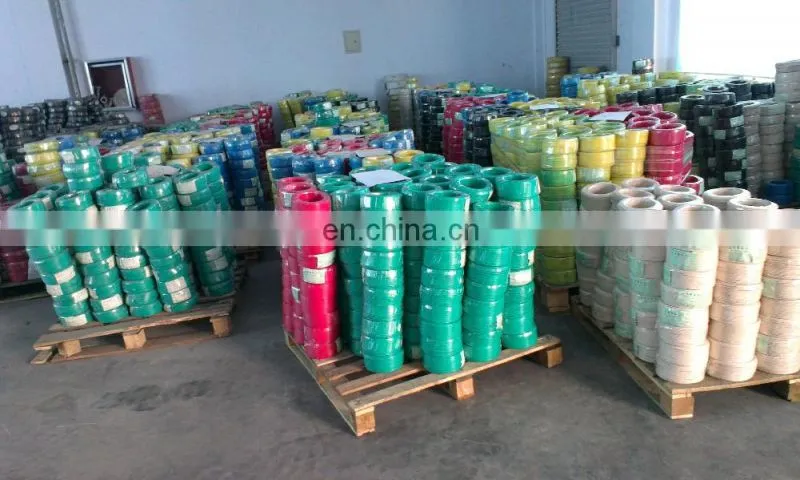

Packaging & Shipping

 Packaging: 100m/roll,or can be made as your request.

Copper conductor PVC insulated electric wire 2.5mm2

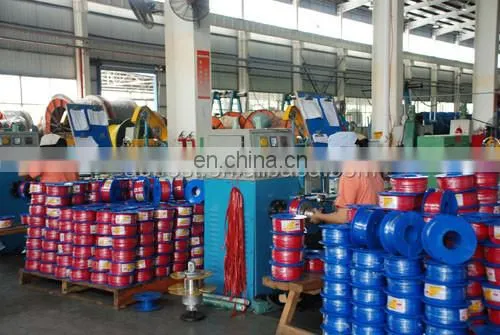

 Our production line picture:

Copper conductor PVC insulated electric wire 2.5mm2
