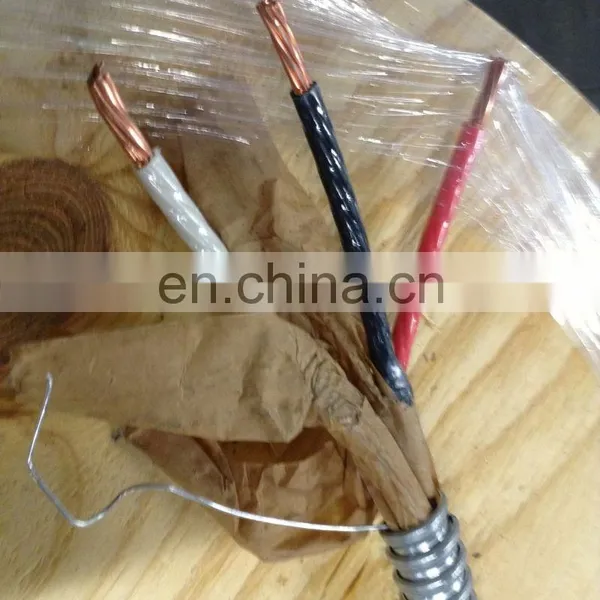

10/3 Metal Clad Cable Aluminum Armor Solid MC Wire
We focus on research&production the MC cable from 2002year, we import the advanced machine and supply only for USA market and American market for this MC cable.
We produce good quality and supply for distributors of the MC cable.
RFQ:What is the difference between AC cable and MC Cable?
Answer: AC cable is with bonding al wire, but MC cable is no bonding al wire and with all insulation.
when you have questions, welcome email us, our team will give you fast reply.
Introduction of MC cable:
The package 250 ft. 12/2 MC Cable and 12/3 Mc cable can be used for feeder and service power distribution projects in commercial and multi-residential buildings. You can also use this cable as a power, control, signal and lighting circuit.
- For feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Use in power, lighting, control and signal circuits as well as cable tray and approved raceway installations
- For indoor and outdoor use
- Can be fished or embedded in plaster for concealed or exposed installations
- Use in wet locations up to 75 degrees Celsius and 90 degrees Celsius in dry locations or 194 degrees Fahrenheit
- 600-volt maximum
- 250 ft. of cable
- Made of soft-drawn copper Type THHN/THWN conductors
- Conductors are cabled together and wrapped with a binder tape bearing the print legend
- Aluminum interlocking armor jackets
SPECIFICATION of MC cable 12/2 size :
| Air Handling Space Approved | No | Allowable Ampacities | 21 |
| Approximate Cable Dimensions (mils) | 0.494 MIL | Armor Material | Interlock Aluminum |
| Assembled Depth (in.) | 14.5 in | Assembled Height (in.) | 3.8 in |
| Assembled Width (in.) | 14.5 in | Cable/Wire Type | MC |
| Certifications and Listings | UL Listed | Conductor Material | Copper |
| Conductor Wire Type | MC | Control Circuit Use | Yes |
| Direct Burial | No | Electrical Product Type | Armored Electrical Cable |
| Exposed Location Use | Yes | Flame Retardant | No |
| Government/Mil Spec Number | NA | Ground Wire Gauge | 12 |
| Hazardous Location Use | Yes | Hospital Care Facility Use | No |
| Jacket Thickness (mils) | 0.0 | Jacketed | Yes |
| Manufacturer Warranty | NA | Neutral Conductor Gauge | 12 |
| Nominal Outer Diameter (mils) | 493 | Number of Conductors | 3 |
| Oil and Gas Resistant | No | Packaging | Coil |
| Places of Assembly Use | No | Pre-Assembled | No |
| Product Length (ft.) | 250ft per roll | Product Weight per Foot (lb.) | 0.1035 |
| conductor type | Solid | ||
| Sunlight / UV Resistant | No | Under Raised Floor Use | Yes |
| Voltage (volts) | 600 V | Wet Location Use | Yes |
| Wire/Cable Length (ft.) | 250 |
