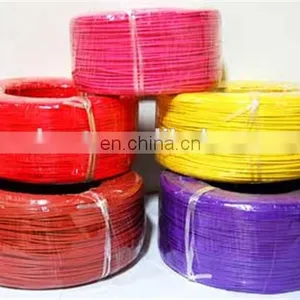

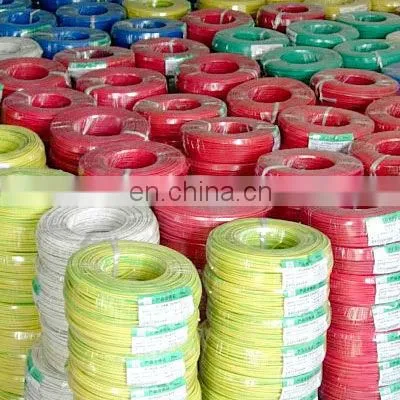

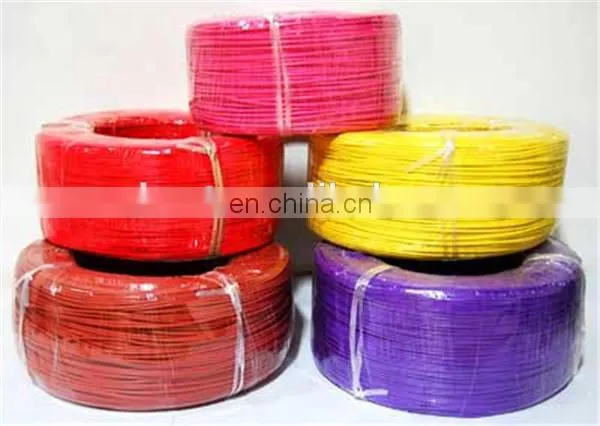

PVC Insulated and Nylon Sheathed Wire THHN, THWN, THNN, Wire
1)Conductor: Bare Copper, Soft Drawn
2)Insulation: PVC
3)Jacket: NYLON
|
Part No. |
Conductor |
Insulation |
Jacket |
Max Dia- meter (mm) |
Ref.W
(kg/km) |
|||||
Type |
Size (AWG) |
Construction (No./mm) |
Dia- Meter (mm) |
Nominal Thickness (mm) |
Nominal Diameter (mm) |
Minimum Thickness At any point (mm) |
Nominal Diameter (mm) |
|||
THHN-14B |
Stranded Conductor
|
14 |
7/0.62 |
1.86 |
0.38 |
2.66 |
0.10 |
2.90 |
3.3 |
25 |
THHN-14B1 |
14 |
19/0.38 |
1.90 |
0.38 |
2.70 |
0.10 |
2.94 |
3.4 |
25 |
|
THHN-12B |
12 |
7/0.78 |
2.34 |
0.38 |
3.14 |
0.10 |
3.38 |
3.8 |
38 |
|
THHN-12B1 |
12 |
19/0.47 |
2.35 |
0.38 |
3.15 |
0.10 |
3.39 |
3.8 |
38 |
|
THHN-10B |
10 |
7/0.98 |
2.94 |
0.51 |
4.00 |
0.10 |
4.24 |
4.8 |
59 |
|
THHN-10B1 |
10 |
19/0.60 |
3.00 |
0.51 |
4.06 |
0.10 |
4.30 |
4.8 |
59 |
|
THHN-8B |
8 |
7/1.23 |
3.69 |
0.76 |
5.25 |
0.13 |
5.55 |
6.2 |
97 |
|
THHN-8B1 |
8 |
19/0.75 |
3.75 |
0.76 |
5.31 |
0.13 |
5.61 |
6.3 |
96 |
|
THHN-6B |
6 |
7/1.56 |
4.68 |
0.76 |
6.24 |
0.13 |
6.54 |
7.3 |
147 |
|
THHN-6B1 |
6 |
19/0.95 |
4.77 |
0.76 |
6.33 |
0.13 |
6.63 |
7.4 |
146 |
|
THHN-4B |
4 |
7/1.96 |
5.88 |
0.76 |
7.44 |
0.13 |
7.74 |
8.7 |
135 |
|
THHN-4B1 |
4 |
19/1.19 |
5.95 |
0.76 |
7.51 |
0.13 |
7.81 |
8.7 |
135 |
|
THHN-3B |
3 |
7/2.20 |
6.60 |
1.02 |
8.68 |
0.15 |
9.02 |
10.0 |
292 |
|
THHN-3B1 |
3 |
19/1.33 |
6.65 |
1.02 |
8.73 |
0.15 |
9.07 |
10.0 |
291 |
|
THHN-2B |
2 |
7/2.47 |
7.41 |
1.02 |
9.49 |
0.15 |
9.83 |
11.0 |
361 |
|
THHN-2B1 |
2 |
19/1.50 |
7.50 |
1.02 |
9.58 |
0.15 |
9.92 |
11.0 |
361 |
|
THHN-1B |
1 |
19/1.68 |
8.40 |
1.02 |
10.48 |
0.18 |
10.88 |
12.1 |
457 |
|
THHN-1/0B |
1/0 |
19/1.89 |
9.45 |
1.27 |
12.03 |
0.18 |
12.43 |
13.8 |
585 |
|
THHN-2/0B |
2/0 |
19/2.12 |
10.60 |
1.27 |
13.18 |
0.18 |
13.58 |
15.1 |
724 |
|
THHN-3/0B |
3/0 |
19/2.38 |
11.90 |
1.27 |
14.48 |
0.18 |
14.88 |
16.5 |
900 |
|
THHN-4/0B |
4/0 |
19/2.67 |
13.35 |
1.27 |
15.93 |
0.18 |
16.33 |
18.1 |
1118
|
|
THHN-14A |
Solid Conductor |
14 |
1/1.63 |
1.63 |
0.38 |
2.43 |
0.10 |
2.67 |
3.1 |
22 |
THHN-12A |
12 |
1/2.05 |
2.05 |
0.38 |
2.85 |
0.10 |
3.09 |
3.5 |
36 |
|
THHN-10A |
10 |
1/2.59 |
2.59 |
0.51 |
3.65 |
0.10 |
3.89 |
4.4 |
57 |
|
THHN-8A |
8 |
1/3.26 |
3.26 |
0.76 |
4.82 |
0.13 |
5.12 |
5.7 |
94 |
|
Please contact me freely; maybe I’ll give you a big surprise. ^.^
