Help CenterCE Certificate Cu/Al Building Wire for Euro
Related Products
Building Wire,PVC Electric Wire Technical Information:
Standards:
227IEC52/53, equivalent to VDE0281 BS6500 BS6004, VDE 0281-3, IEC227, TS9758
Conductor:
bare stranded copper--class 5 IEC228
Insulation/sheath:
PVC
Voltage rating:
300/300V,300/500V, 450/750V 600/1000V
Temperature range:
0 ºC to 120ºC,
Main colors:
HAR color code
Minimum bending radius:
7.5x overall dia
Application:
used for installations&connections electrical apparatus, static or dynamic
Remark:
the cable can be of Low smoke free halogen, flame retardance and other enhanced features

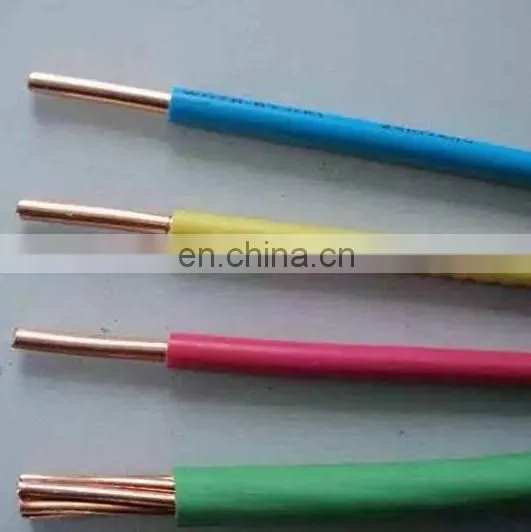

PVC Insulated Electric Building Wire,
We can manufacturer different type of pvc electric wire:
H07V-U, H07V-R, H07V-K, H05V-k, H03VV-F, H05VV-F, H03VVH2-F, H05VVH-2F
H03VH-H, H05VH-H, H05V2-K, H07V2-K, H03V2V2-F, H05V2V2-F, H03V2V2H2-F
H05V2V2H2-F, H03V3V3-F, H05V3V3-F
Standards of the electric wire(or building wire):
Construction of the electrical wiring(or pvc insulated wire):
1- Flexible Copper Conductor, Solid or stranded
Class 1, Class 2, Class 5 Conductor
2- PVC Insulation
3. PVC filling
4- PVC outer sheath
Application of the electrical wire( building cable):
Installation indoors, in cable ducts and in industrial plants or switching stations, underground installation
|
Type |
Name |
Laying place and requirement |
Long term working temperature |
|
227IEC01/05 |
Copper conductor PVC insulated wires |
Fixed laid indoors,conduits etc. |
70 |
|
Aluminum Conductor PVC insulated wires |
|||
|
227IEC07 |
Heat resistant copper conductor PVC insulated wires at 90 |
Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. |
90 |
|
BVR |
Copper conductor PVC insulated flexible wire |
Be for laying permanent place where flexible required |
70 |
|
227IEC10 |
Copper conductor PVC insulated PVC sheathed round wires |
Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. |
70 |
|
BLW |
Aluminum conductor PVC insulated PVC sheathed round wires |
||
|
BWB |
Copper conductor PVC insulated PVC Sheathed flat wires |
||
|
BLWB |
Aluminum conductor PVC insulated sheathed flat wires |
||
|
227IEC02RV |
Copper conductor PVC insulated flexible connector |
Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required. |
70 |
|
227IECC42 |
Copper conductor PVC insualted flat flexible connector |
||
|
RVS |
Copper conductor PVC insulated flexible twisting connector wire |
||
|
227IEC52 |
Copper conductor PVC insulated PVC sheated round flexible connector(light and common type) |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
