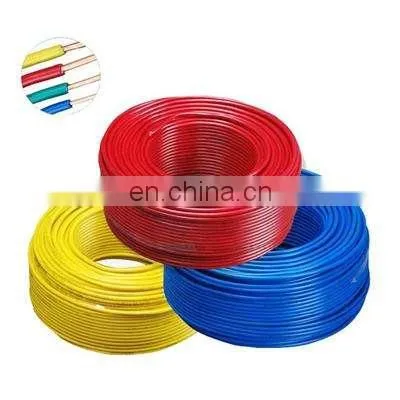

Help Center99.9% Pure Copper 0.75mm 1.5mm 2.5mm SOLID ENVIRONMENT-FRIENDLY Electric PVC INSULATED COPPER WIRE
Related Products
PVC HALOGEN-FREE Insulated Copper Wire
--------------------------------------------------------------------------------------------------------
1. Good quality & nice packing
2. Small MOQ & competitive price
3. Delivery on time
--------------------------------------------------------------------------------------------------------
1. Standard of copper wire :
BS6004, IEC227
2. Application of copper wire: These cables are used for general purpose, as building wire for power, lighting and control wiring. They can be place into trucking and conduit.
3. Construction: Solid or stranded, annealed copper conductor, PVC insulated.
4. Voltage: 300/500V, 450/750V
5. Core Color: Red, brown, green, yellow/green, black, blue, yellow
--------------------------------------------------------------------------------------------------------
PVC INSULATED SINGLE COPPER WIRE | ||||
| SIZE/MM2 | STRUCTURE/MM | OVERALLDIAMETER/MM | WEIGHT(KG/KM) | CODUCTOR TYPE |
| 0.5MM2 | 1X0.8 | 2.40 | 8.50 | SOLID |
| 0.75MM2 | 1X0.97 | 2.60 | 11.10 | SOLID |
| 7X0.37 | 2.80 | 12.00 | STRANDED | |
| 1.0MM2 | 1X1.13 | 2.80 | 13.90 | SOLID |
| 7X0.43 | 3.00 | 15.00 | STRANDED | |
| 1.5MM2 | 1X1.38 | 3.30 | 20.30 | SOLID |
| 7X0.52 | 3.50 | 21.60 | STRANDED | |
| 2.5MM2 | 1X1.78 | 3.90 | 31.60 | SOLID |
| 7X0.68 | 4.20 | 34.80 | STRANDED | |
| 4.0MM2 | 1X2.25 | 4.40 | 47.10 | SOLID |
| 7X0.85 | 4.80 | 50.30 | STRANDED | |
| 6.0MM2 | 1X2.76 | 5.00 | 66.00 | SOLID |
| 7X1.04 | 5.40 | 71.20 | STRANDED | |
| 10MM2 | 7X1.35 | 7.00 | 119 | STRANDED |
| 16MM2 | 7X1.7 | 8.00 | 179 | STRANDED |
| 25MM2 | 7X2.14 | 10.00 | 281 | STRANDED |
| 35MM2 | 7X2.52 | 11.50 | 381 | STRANDED |
| 50MM2 | 19X1.78 | 13.00 | 521 | STRANDED |
| 70MM2 | 19X2.14 | 15.00 | 734 | STRANDED |
| 95MM2 | 19X2.52 | 17.50 | 962 | STRANDED |
| 120MM2 | 37X2.03 | 19.00 | 1180 | STRANDED |
| 150MM2 | 37X2.25 | 21.00 | 1470 | STRANDED |
| 185MM2 | 37X2.52 | 23.50 | 1810 | STRANDED |
| 240MM2 | 61X2.25 | 26.50 | 2350 | STRANDED |
| 300MM2 | 61X2.52 | 29.50 | 2930 | STRANDED |
| 400MM2 | 61X2.85 | 33.00 | 3870 | STRANDED |
We have the most professional manufactory of cables.
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
