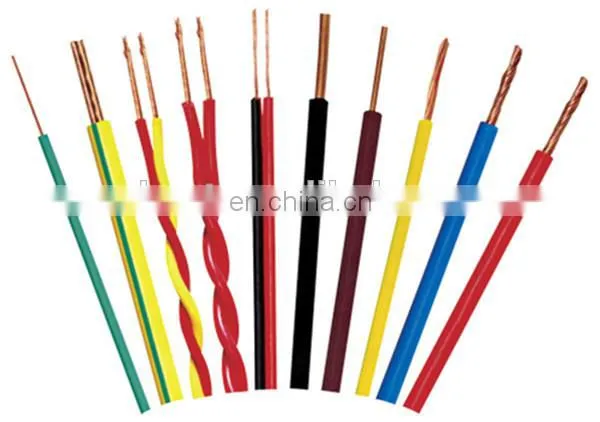

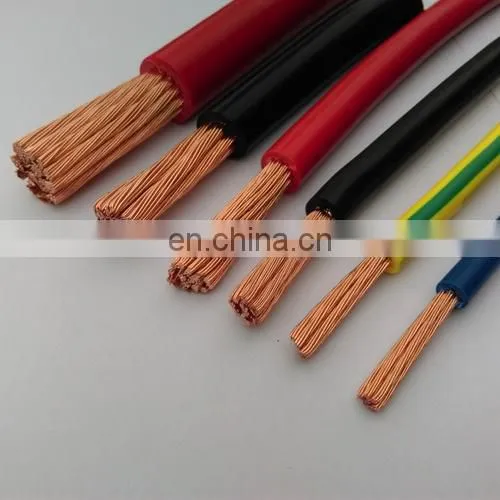

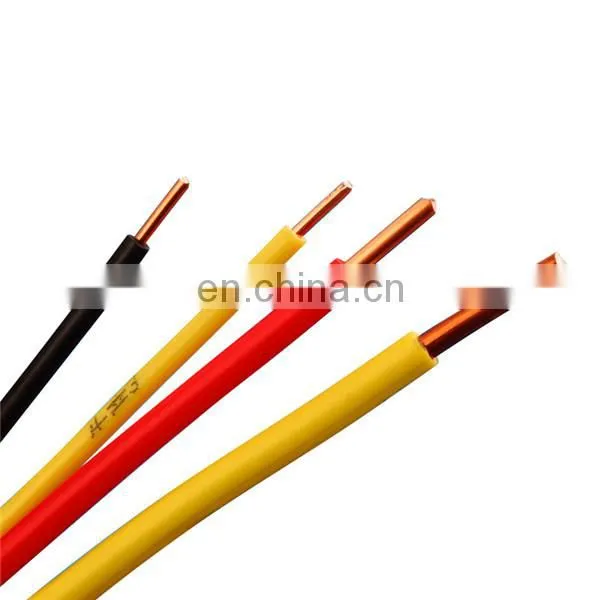

low voltage house wire for building
We can supply a range of solid and stranded cables which are used for fixed wiring, house / domestic wiring / project & industrial plants and others. Further, these are also used for fixed wiring, house/ domestic wiring/ Project & Industrial Plants and others.
Specifications:
- Standards: 227IEC01/02, equivalent to VDE 0281 BS6004
- Conductor: Single Core solid & stranded bright annealed copper conductor --class 2 IEC228
- Insulation: PVC
- Voltage rating: 450/750V for above 1.5mm2, 300/500V for below 1mm²
- Temperature range: 0 ºC to 70ºC
- Main colors: black-blue-red-green/yellow-brown-grey-orange-violet-white-dark blue
- Minimum bending radius:
Up to 10mm² , 3 x overall dia;10mm² to 25mm², 4 x overall dia;Above 25mm², 5 x overall dia
- Application: suitable for use in conduit and for fixed, protected installation
- Remark: the cable can be of Low smoke free halogen, flame retardance and other enhanced features
The data sheets below show partial technical characters:
|
Area in Sq. mm |
Strands “mm” |
Insulation Thickness “mm” |
Overall Diameter “mm” |
Insulation Thickness “mm” |
Sheath Thickness”mm” |
Overall Diameter “mm” |
Resistance at 20 Degree C “Ohm/ Km) |
Current Rating “Amps.” |
|
1 |
01/01/12 |
0.7 |
2.6 |
0.6 |
0.8 |
4.15 |
18.1 |
11 |
|
1.5 |
01/01/38 |
0.7 |
2.9 |
0.6 |
0.8 |
4.4 |
12.1 |
13 |
|
2.5 |
01/01/78 |
0.8 |
3.5 |
0.7 |
0.8 |
5 |
7.41 |
20 |
|
2.5 |
03/01/04 |
0.8 |
3.9 |
0.7 |
0.8 |
5.1 |
7.41 |
20 |
|
4 |
01/02/24 |
0.8 |
4 |
0.8 |
0.9 |
5.85 |
4.61 |
26 |
|
4 |
7/0.85 |
0.8 |
4.2 |
0.8 |
0.9 |
5.9 |
4.61 |
26 |
|
6 |
01/02/76 |
0.8 |
4.5 |
0.8 |
0.9 |
6.4 |
3.08 |
35 |
|
6 |
07/01/04 |
0.8 |
5 |
0.8 |
0.9 |
6.65 |
3.08 |
35 |
|
10 |
07/01/35 |
1 |
6.2 |
1 |
0.9 |
8.05 |
1.83 |
45 |
You may also be interested in:
- PVC jacket PVC insulated Power cable ( armored or not)
- PVC jacket XLPE insulated power cable( armored or not)
- Single core insulated copper wire
- Single core double insulated copper wire
- Flexible Single core insulated cable
- Flexible Multi-cores insulated cable
- Flat Twin + Earth cable
- Control cable
- Cat5e Lan cable
- Aluminum (alloy) conductor (AAC & AAAC)
- ACSR conductor
- (ABC)Aerial Bundle Cable
- LSZH flame retardant cable
- Medium/High voltage power cable
All products could be with additional features, LSHZ fire resistant or others.
Main Export Markets:
Eastern Europe
Australasia
Mid East
Africa
Central/South America
Asia
Western Europe
Package:
- In rolls for cables with cross section<10mm, wooden or iron drums for heavy cable in large quantity.
- As per client's special request.
Our advantage:
- 10 years professional experience since 1988
- Better competitive price and standard quality.
- Experienced engineering team work, latest tech R&D in cables.
- Standardized qulity control and operation system under ISO9001-2000.
- Market-oriented management, OEM, OBM,ODM acceptable.
