bare conductor ACSR AWG4 Swan for transmission and distribution power line
- 1000 per Month
- T/T Credit Card
Product Description
bare conductor (AAC, ACCR, AAAC, ACSR)
Generally Confirming to IS 398 (Part-I,II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS : 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1:1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS:398-II:1976 & IS:398-V:1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
Detailed Product Description

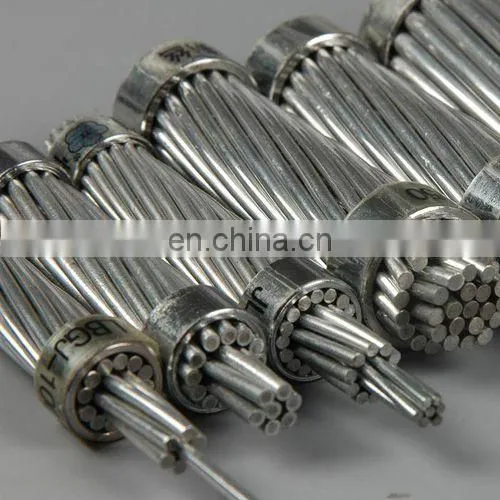

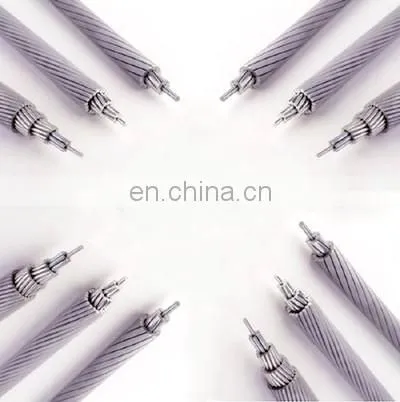

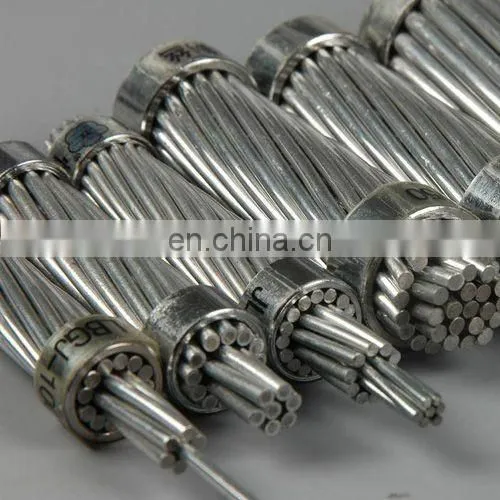

ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction

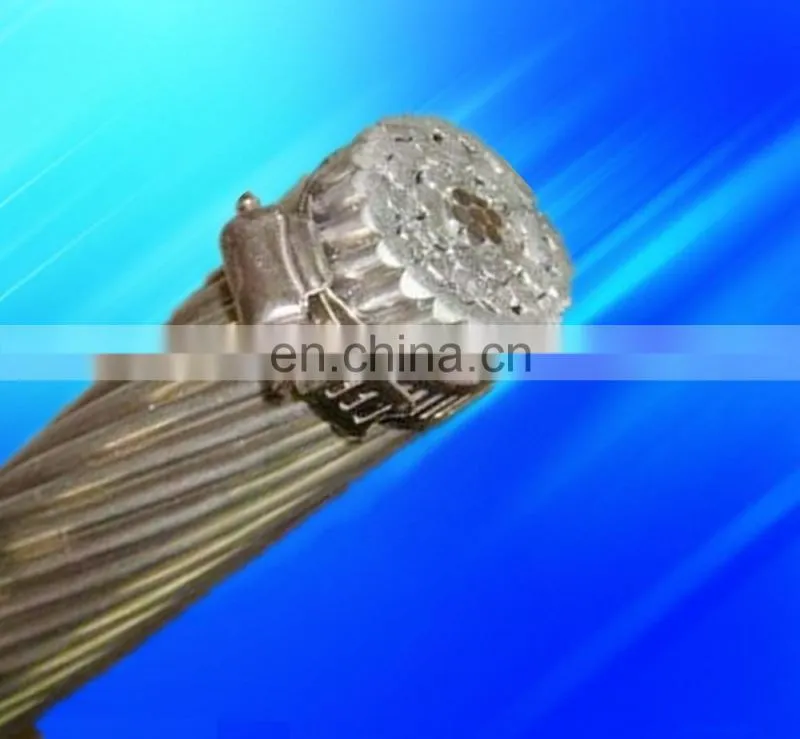

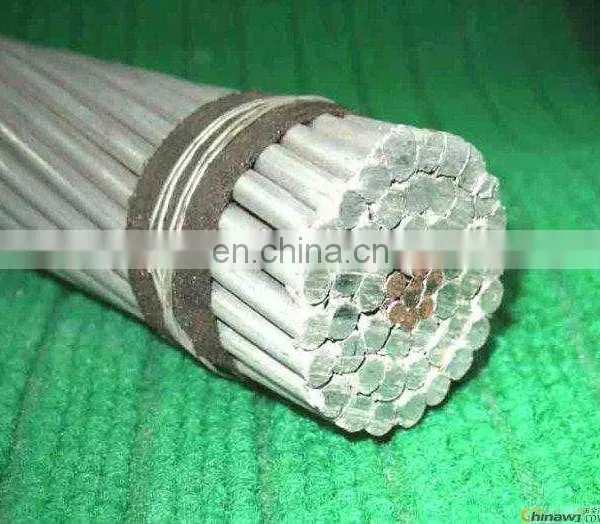

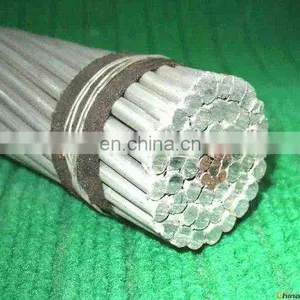

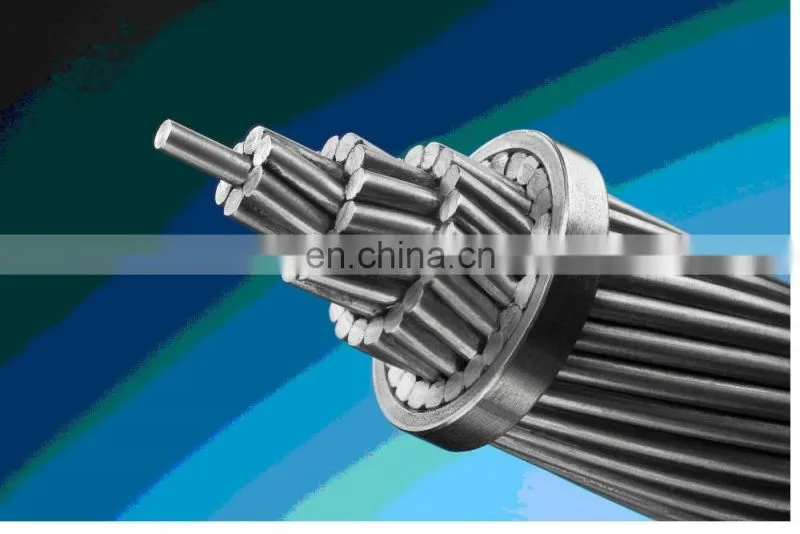

Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Notes
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq.ft sun, 0.5 coefficients of emissivity and absorption.
Code Name | Code Name | Code Name | Code Name | High Strength Strandings |
Turkey | Ibis | Egret | Curlew | Grouse |
Swan | Lark | Flamingo | Bluejay | Petrel |
Swanate | Pelican | Gannet | Finch | Minorca |
Sparrow | Flicker | Stilt | Bunting | Leghorn |
Sparate | Hawk | Starling | Grackle | Guinea |
Robin | Hen | Redwing | Bittern | Dotterel |
Raven | Osprey | Tern | Pheasant | Dorking |
Quail | Parakeet | Condor | Dipper | Cochin |
Pigeon | Dove | Cuckoo | Martin | Brahma |
Penguin | Eagle | Drake | Bobolink | |
Waxwing | Peacock | Mallard | Plover | |
Partridge | Squab | Ruddy | Nuthatch | |
Ostrich | Wood Duck | Canary | Parrot | |
Linnet | Teal | Rail | Lapwing | |
Oriole | Kingbird | Cardinal | Falcon | |
Chickadee | Rook | Ortlan | Chukar | |
Brant | Grosbeak |

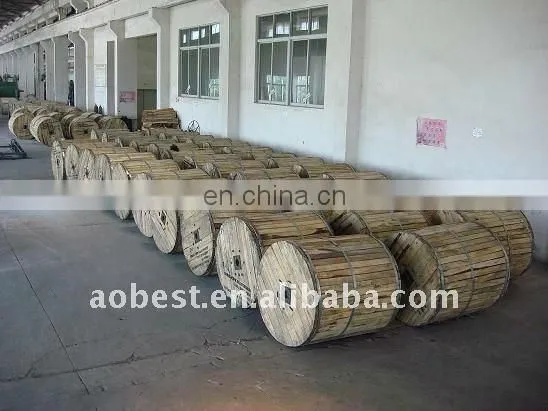

packing:export standard by wooded drum or as your requ
shipping:Shipped in 10 days after payment
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cable
we provide products with high quality at a reasonable price,if more info,please email me,sales009(at)
- Any inquiries will be replied within 24 hours.
- OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
- High quality, reasonable and competitive price, fast lead time.
- Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
- Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
- Q: Could you offer the Type Test Report?
- A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What's the tolerance of delivery length for each coil?
- A: -±0.005m.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
