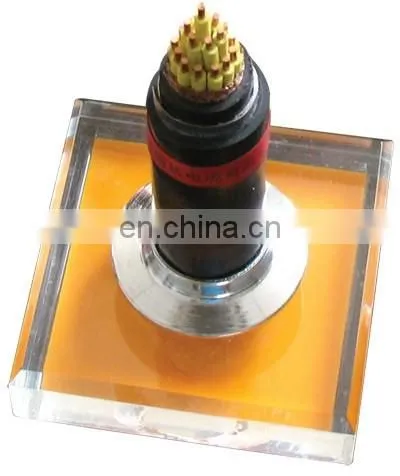

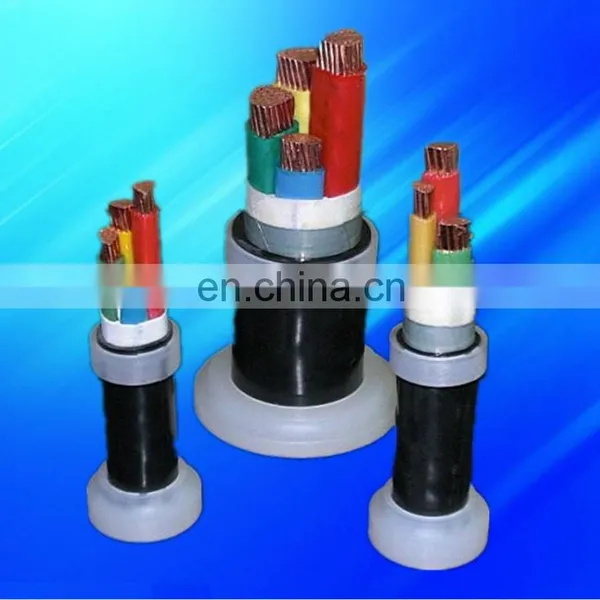

Help CenterChina 0.6/1kv Aluminum Core Pvc Insulation Armored Cable for Africa
Related Products
-
Sensible Choice!!! Solid Copper Conductor PVC Insulated WireNegotiableMOQ: 1 -
China PVC Outer Sheathed NYKFGBY Swa /sta Armoured Power CableNegotiableMOQ: 1
-
Fire-retardnat Copper Conductor 4 Core Vvg Power CableNegotiableMOQ: 1
-
Professional Pvc Insulated Aluminum Electric Build CablesNegotiableMOQ: 1
-
Home Appliance Low Voltage Pvc Insulated Electric WireNegotiableMOQ: 1
About Company:
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cable
Cable production with 30 years' experience
- High quality & prompt delivery
- Quick response & good and sincere service
1.Using Feature:
(1.) The long-time working temperature of cable should not be highter than 70 oC
(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 oC
a.For single no-armored cable, it is not less than 20 times of outer diameter
b.For single-core armored cable, it is not less than 15 times of outer diameter
c.For multi-core no-armored cable, it is not less than 15 times of outer diameter
d.For multi-core armored cable, it is not less than 12 times of outer diameter
2. The description:
|
Type |
Name |
Application |
|
|
CU |
AL |
||
|
VV |
VLV |
PVC insulation&sheathed Power cable
|
For laying indoors, in tunnel and in ducts, unable to bear extarnal mechanical forces |
|
VV22 |
VLV22 |
PVC insulation&sheathed steel tape armour power cable |
Laying in the ground, afire-resistant, unable to bear extarnal mechanical forces |
3. Specification Size and Technical Data:
|
Core number |
Nominal Section(mm²) |
D.C.Resistance in 20 oC(Ω/km) |
O.D.(mm) |
Reference Weight(Kg/km) |
||
|
CU |
AL |
Cu |
Al |
|||
|
1 core |
1.5 |
24 |
- |
6.1 |
49.2 |
46.6 |
|
2.5 |
34 |
25 |
6.5 |
61.6 |
61.5 |
|
|
4 |
44 |
33 |
7.4 |
85.4 |
74.3 |
|
|
6 |
57 |
44 |
8.0 |
109 |
90.1 |
|
|
10 |
76 |
58 |
9.6 |
151 |
116 |
|
|
16 |
103 |
78 |
10.2 |
223 |
173 |
|
|
25 |
129 |
108 |
12.0 |
331 |
212 |
|
|
35 |
172 |
131 |
13.1 |
432 |
272 |
|
|
70 |
268 |
207 |
16.0 |
780 |
472 |
|
|
150 |
435 |
335 |
22.1 |
1609 |
821 |
|
|
185 |
493 |
380 |
24.2 |
1966 |
1028 |
|
|
240 |
585 |
451 |
26.9 |
2513 |
1265 |
|
|
2 core |
1.5 |
802 |
624 |
33.5 |
4108 |
|
|
2.5 |
20 |
|
10.2 |
116 |
117 |
|
|
4 |
27 |
21 |
11.0 |
148 |
159 |
|
|
6 |
36 |
27 |
12.8 |
207 |
194 |
|
|
10 |
46 |
35 |
13.8 |
262 |
228 |
|
|
16 |
62 |
48 |
15.4 |
351 |
301 |
|
|
25 |
83 |
63 |
18.5 |
532 |
456 |
|
|
50 |
131 |
101 |
24.3 |
1017 |
573 |
|
|
70 |
164 |
127 |
22.4 |
1201 |
735 |
|
|
95 |
208 |
160 |
25.2 |
1615 |
956 |
|
packing:export standard by wooded drum or as your requ
shipping:Shipped in 10 days after payment
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design3) Any your idea on cable, packing box are available.
High quality, reasonable and competitive price, fast lead time.
Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
Strong technical support (technical data, drawing, etc.)
Free sample is available with economic express fee.
Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.
Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.
Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.
Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.
Q: What are your main products?
