U1000 R2V Cable and RVFV CABLE 3G 35mm2

U1000 R2V Cable and RVFV CABLE 3G 35mm2 thumbnail-1
U1000 R2V Cable and RVFV CABLE 3G 35mm2 thumbnail-2
U1000 R2V Cable and RVFV CABLE 3G 35mm2 thumbnail-3
U1000 R2V Cable and RVFV CABLE 3G 35mm2 photo-1
U1000 R2V Cable and RVFV CABLE 3G 35mm2 photo-2
U1000 R2V Cable and RVFV CABLE 3G 35mm2 photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Aobest Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Company Information



Our main products include as belows:

1: AAC, ACSR, AAAC, guy wire

2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cablesU1000 R2V cable and RVFV CABLE 3G 35mm2

Product Description

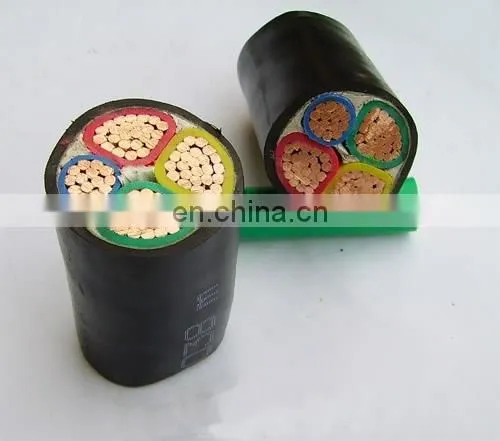

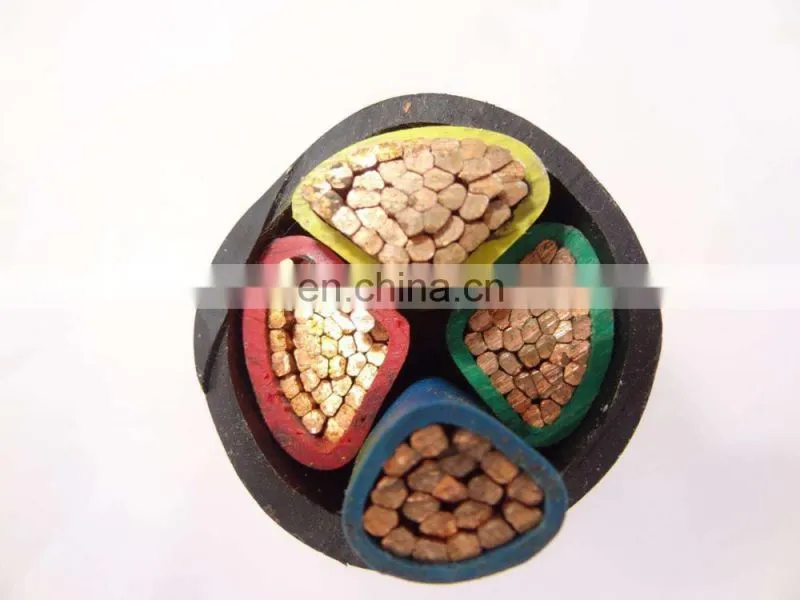

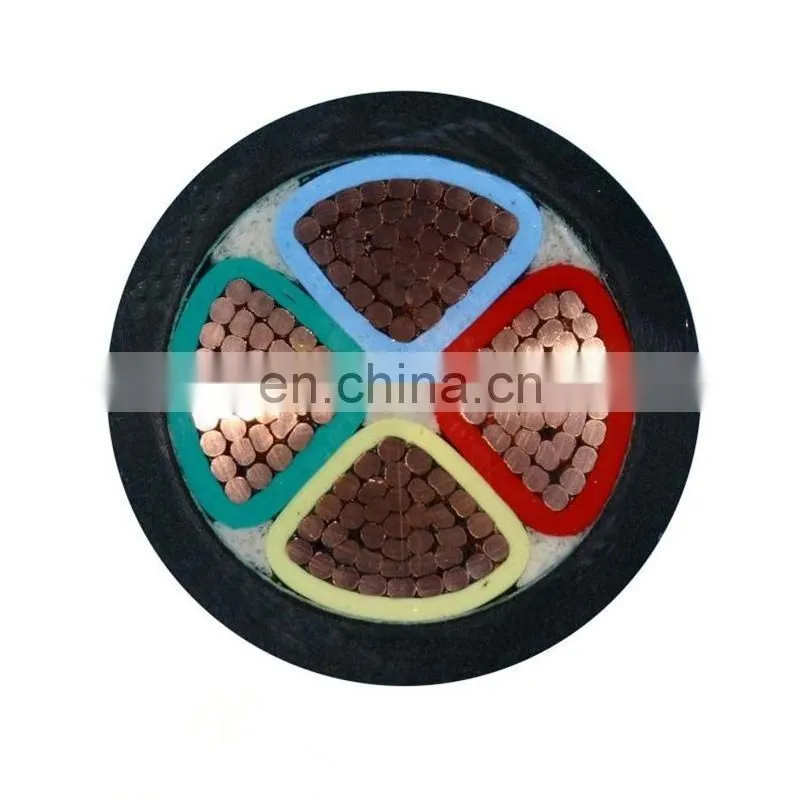

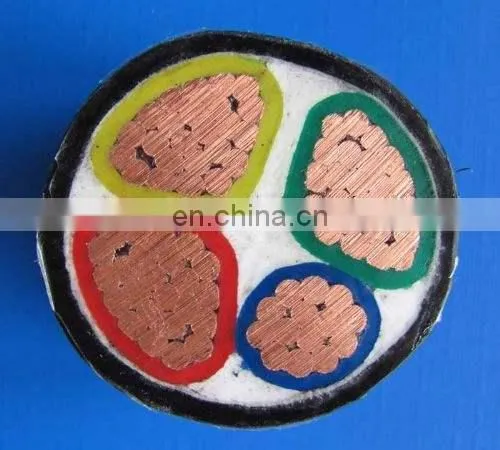

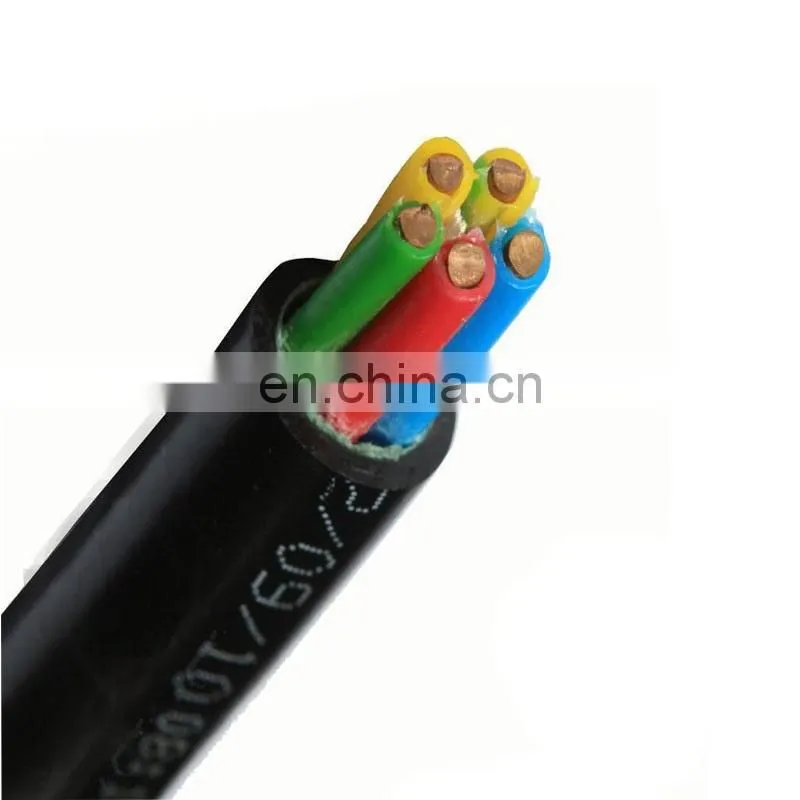

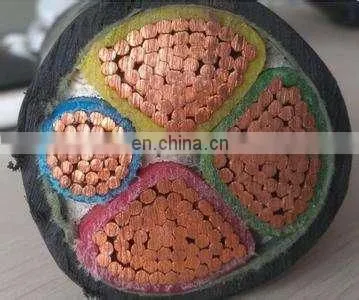

 R2V cable, RVFV cable  picture:

U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2

VV32 SWA armored  PVC insulated power cable 0.6/1KV

1.Using Feature:

(1.)  The long-time working temperature of cable should not be highter than 70 °c

(2.)  When core is in short-circuit(max 5s) the temperature should not exceed 160 °c.

(3) While installation the ambient temperature should not be lower than 0 °c, bending radius of the cable;

For single no-armored cable, it is not less than 20 times of outer diameter

For single-core armored cable, it is not less than 15 times of outer diameter

For multi-core no-armored cable, it is not less than 15 times of outer diameter

For multi-core armored cable, it is not less than 12 times of outer diameter.

3. Specification Size and Technical Data:

Core number

Nominal Section(mm²)

D.C.Resistance in 20 °c(Ω/km)



O.D.(mm)

Reference Weight(Kg/km)

CU

AL

Cu

Al





 4core

1.5

17

—

10.93

166

—

2.5

23

17

11.9

218

155

4

30

23

14.0

315

214

6

39

30

15.3

410

259

10

54

41

18.3

616

 362

16

71

55

20.9

879

477

25

99

76

21.9

1242

618

35

120

92

24.1

1632

766

50

186

143

27.6

2187

1015

70

227

175

31.3

3084

1358

95

262

203

36.0

4150

1799

120

352

272

39.2

5125

2160

150

420

324

43.3

6320

2661





U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2U1000 R2V cable and RVFV CABLE 3G 35mm2

U1000 R2V cable and RVFV CABLE 3G 35mm2





Packaging & Shipping

1:standard export  wooden drum/steel wooden drum

2: upon your requestU1000 R2V cable and RVFV CABLE 3G 35mm2

Our Services

 1) Printing your logo on the cable.

 2) Printing your logo on the pull box, wooden drum according to your design

 3) Any your idea on cable, packing box are available.

 1) All products will have been strictly Quality Checked in house before packing.

 2) All products will be well packed before shipping.

  •  Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
  • Strong technical support (technical data, drawing, etc.)
  •  Free sample is available with economic express fee.
  • Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
FAQ



  • Q: Could you offer the Type Test Report?
  • A  -Yes, we could offer the Type Test Report issued by Chinese laboratories.
  • Q:Have you ever supplied the cables to our country?
  • A:  -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
  • Q: According to which standards can you produce cables?
  • A:   -GB/T, IEC, EN.
  • Q: What is your MOQ?
  • A:    -The MOQ is different, as the different cable type.
  • Q: Do you have ready cables?
  • A:  -Some normal cables have the inventory, most cables are produced according to your requirements.
  • Q: What's the tolerance of delivery length for each coil?
  •  A:   -±0.005m.
  • Q: What are your main products?
  • A:  -Our main products are the PVC insulated cable, power cable, and electric wire.
