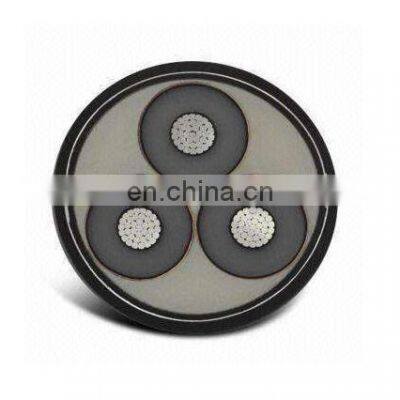

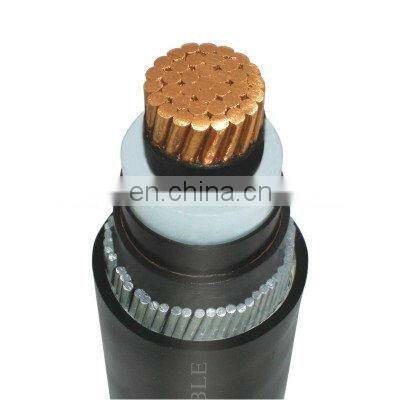

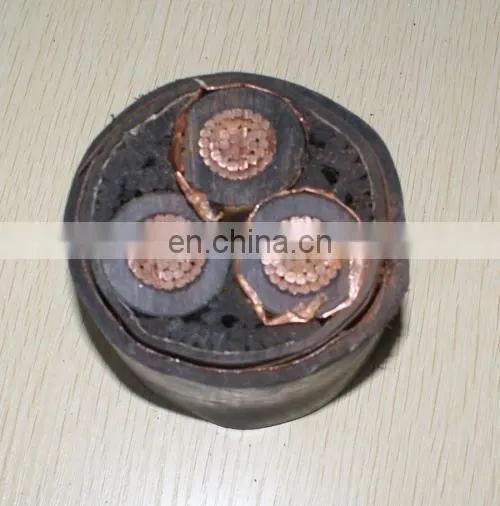

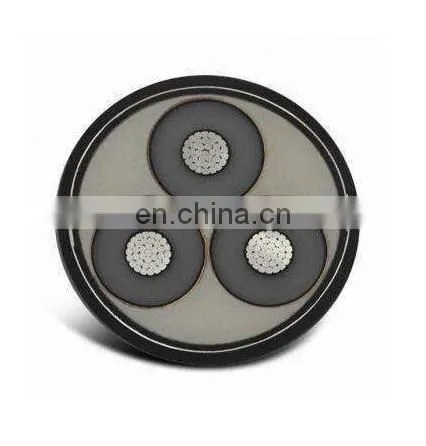

Help Center18/30kv XLPE Insulated High Voltage Power Cable
Related Products
-
Professional Xlpe Insulation Power Cable Electric WireNegotiableMOQ: 1 -
3 Cores 35mm2 0.6 to 1kv Steel Tape Armored Power CableNegotiableMOQ: 1
-
AVVG, VVG, XLPE Insulated PVC Sheathed 3x Cores Power CableNegotiableMOQ: 1
-
0.6/lKV Voltage 1*6 Mm2 YJV XLPE/PVC Insulated Power CableNegotiableMOQ: 1
-
YJV Type 0.6/lKV Voltage 1*630mm2 XLPE Insulated Power CableNegotiableMOQ: 1
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.

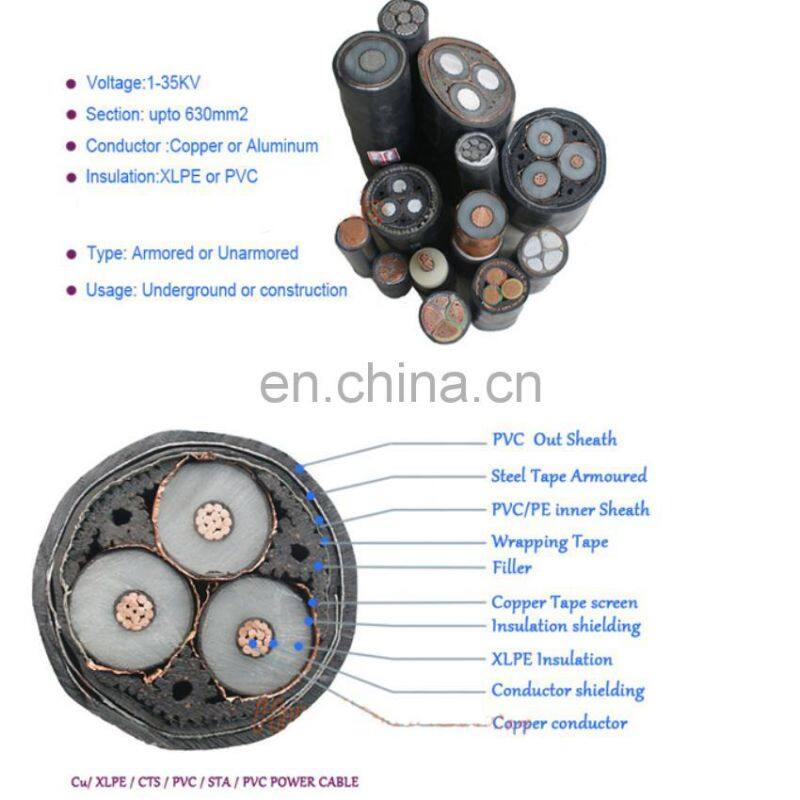

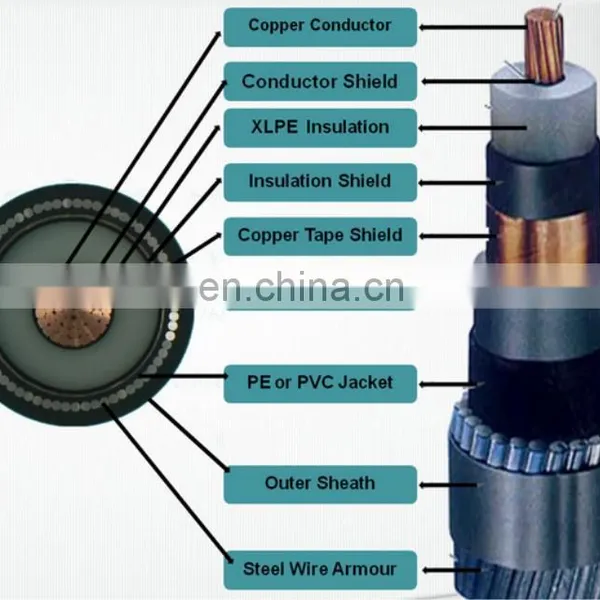

Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
3. Some common use model
|
China Model |
Name
|
Uses |
Cores |
Conductor nominal cross section mm2
|
|
YJV |
Copper core XLPE insulated PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
1 |
1.5~800
|
|
YJY |
Copper core XLPE insulated PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
2 |
1.5~800
|
|
YJV22 |
Copper core XLPE insulated Galvanized steel Tape armoured PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY . |
3 |
1.5~400
|
|
YJLV23 |
Copper core XLPE insulated Galvanized steel Tape armoured PE sheathed |
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
4 |
1.5~400 |
|
YJV32 |
Copper core XLPE insulated Galvanized steel wire armoured PVC sheathed power cable
|
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
3+1 |
1.5~400
|
|
YJV33 |
Copper core XLPE insulated Galvanized steel wire armoured PE sheathed power cable |
Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
|
4+1 |
+ 1.5~400
|
Note: ZR means flame retardent
About Us:Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
