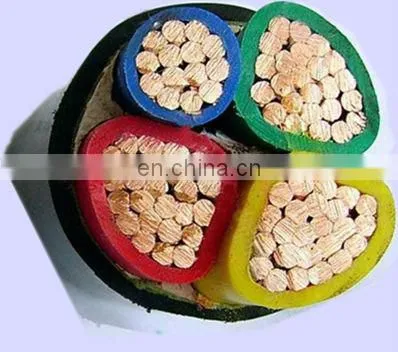

25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 stranded XLPE insulated U1000 RO2V cable
Application
U-1000 R2V cables can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations. In case of high ambiant temperature, use correction coefficient. Installation
These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection. Cross sections 1,5 - 2,5 and 4 mm² have to be of class 2 flexiblility, if the cable is connected to equipment subject to vibration. |
| Characteristics | ||
| Construction characteristics | ||
| Conductor material | Bare copper | |
| Insulation | XLPE (chemical) | |
| Outer sheath | PVC | |
| Sheath colour | Black | |
| Electrical characteristics | ||
| Rated Voltage Uo/U (Um) | 0.6/1 kV | |
| Mechanical characteristics | ||
| Mechanical resistance to impacts | Good | |
| Cable flexibility | Rigid | |
| Usage characteristics | ||
| Max. conductor temperature in service | 85°C | |
| Short-circuit max. conductor temperature | 250°C | |
| Operating temperature, range | -10 .. 60°C | |
| Weather resistance | Very good | |
| Flame retardant | C2, NF C 32-070 | |
| Chemical resistance | Accidental | |
| Bending factor when laying | 6(xD | |
Type |
Description |
Application |
|
Cu core |
Al core |
||
|

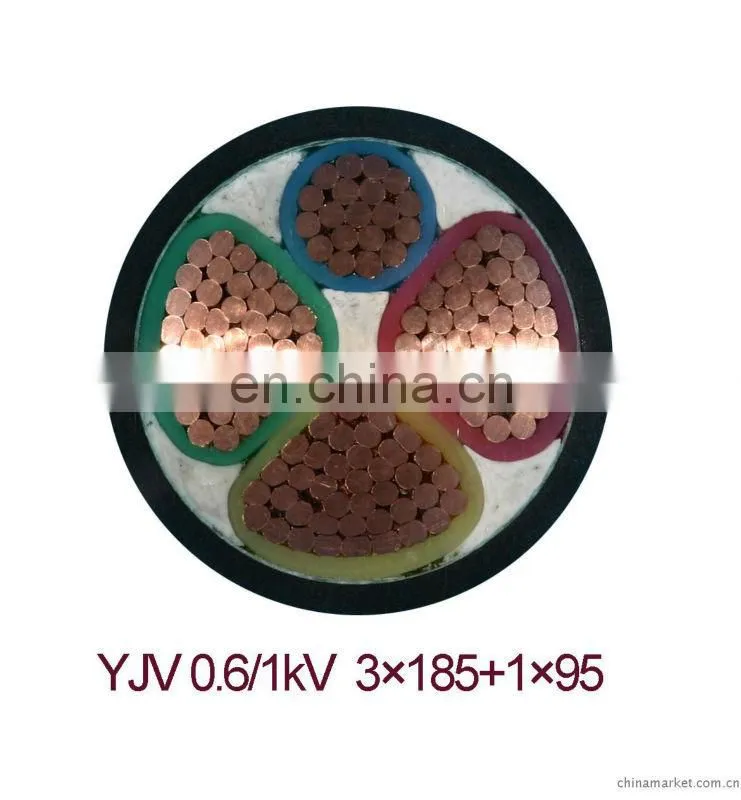

YJV YJY |
YJLV YJLY |
XLPE insulated,PVC or PE sheathed power cable |
For laying indoor, tunnel, channel and underground. Unable to bear external mechanical forces,but bear the traction force during laid |
|
YJLV22 YJV23 |
YJV22 YJV23 |
XLPE insulated, steel tape armored, PVC or PE sheathed power cable |
For laying indoor, tunnel, channel and underground. Able to bear external mechanical forces, but unable to bear large pulling force |
|
YJLV32 YJLV33 |
YJV32 YJV33 |
XLPE insulated, fine steel wire armored, PVC or PE sheathed power cable |
For laying in shaft, with large difference of level.able to bear external machinery forces and moderate pulling force. |
|
YJLV42 YJLV43 |
YJV42 YJV43 |
XLPE insulated, thick steel wire armored, PVC or PE sheathed power cable |
Able to bear positive pressure and pulling force |
