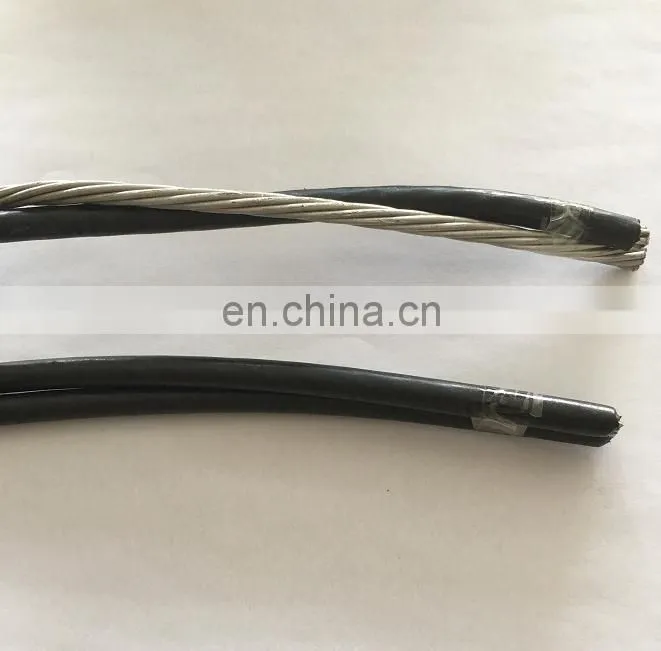

Help CenterAluminium Triplex URD Cable ABC Cable
Related Products
-
Top Quality Low Price 5Core 25mm Copper Conductor Steel Tape Armoured VAV CableNegotiableMOQ: 1 -
Top Quality Lowest Price 4mm 6mm 10mm Airdac CNE CableNegotiableMOQ: 1
-
High Voltage XLPE Insulated NA2XS2Y CableNegotiableMOQ: 1
-
High Voltage N2XSY Single Core Xlpe Insulated and Pvc Sheathed Power Cable 33KVNegotiableMOQ: 1
-
Wire VCTFK Conductor 1.25 Mm2 -2coresNegotiableMOQ: 1
Aluminium Underground Secondary 600voltage Cables provide outstanding performance and reliability.
URD cable
1.Product Application and Features:
used for secondary distribution and underground service either direct burial or in ducts with fully insulated.
• Designed for use in electric distribution circuits not exceeding 600voltage phase to phase and may be directly buried or installed in ducts.
• Maybe used in et or dry locations at conductor temperatures not exceeding 90ºC for normal operation . 130ºC for emergency overloads and 250ºC under short circuit conditons.
2.Construction:
Concentric strand or compressed 1350-H19 conductor,polythylene or crosslinked polyethylene insulation.
3.URD cable covers mainly 3 types of the service drop cable:Duplex service drop cable.triplex service drop cable,quadruplex service drop
Aluminium Conductor Cross-linked polyethylene(XLPE) insulation,600V Three phase with neutral
|
Code name |
Phase conductor |
Neutral |
Diameter |
Approx. Weight |
Allowable Ampacities Raceway (cable in ducts)
|
|||||
|
Size |
Number Of wires |
Insulation Thickness |
Size |
Number Of wires |
Insulation Thickness |
Single Phase conductor |
Complete cable |
|||
|
AWG or kcmil |
mm |
AWG |
mm |
mm |
Kg/km |
|||||
|
QUADRUPLEXED WITH TRIPLE SOLID YELLOW STRIPES NEUTRAL |
||||||||||
|
Tulsa |
4 |
7 |
1.52 |
4 |
7 |
1.52 |
8.7 |
21.1 |
385 |
85 |
|
Dyke |
2 |
7 |
1.52 |
4 |
7 |
1.52 |
10.2 |
24.7 |
518 |
110 |
|
Wittenberg |
2 |
7 |
1.52 |
2 |
7 |
1.52 |
10.2 |
24.7 |
562 |
110 |
|
Notre Dame |
1/0 |
19 |
2.03 |
2 |
7 |
1.52 |
13.2 |
32 |
810 |
150 |
|
Purdue |
1/0 |
19 |
2.03 |
1/0 |
19 |
2.03 |
13.2 |
32 |
892 |
150 |
|
Syracuse |
2/0 |
19 |
2.03 |
1 |
19 |
2.03 |
14.3 |
34.6 |
998 |
165 |
