Help CenterChina VV32 PVC Insulated Power Cable 25mm2
Related Products
-
China High Quality 0.6/1kv VV Pvc Insulated Cable 50mm2NegotiableMOQ: 1 -
China High Quality VV 120mm2 PVC Insulated Power Cable 0.6/1KVNegotiableMOQ: 1
-
Pvc Insulated Pvc Sheathed Power Cable 95mm2NegotiableMOQ: 1
-
Copper Conductor 4 x 120 mm Steel Tape Armored Power Cable to KenyaNegotiableMOQ: 1
-
50mm2 vv PVC Insulated Power Cable 0.6/1KV With ASTM StandardNegotiableMOQ: 1
VV power cable
1.Using Feature:
(1) The long-time working temperature of cable should not be highter than 70 oC
(2) When core is in short-circuit(max 5s) the temperature should not exceed 160 oC
(3) While installation the ambient temperature should not be lower than 0 oC, bending radius of the cable;
a.For single no-armored cable, it is not less than 20 times of outer diameter
b.For single-core armored cable, it is not less than 15 times of outer diameter
c.For multi-core no-armored cable, it is not less than 15 times of outer diameter
d.For multi-core armored cable, it is not less than 12 times of outer diameter.
---------------------------------------------------------------------------------------------------------
1. Standard: IEC 60502 BS 6346
2. Application: For laying outdoors underground be able to bear external mechanical forces.

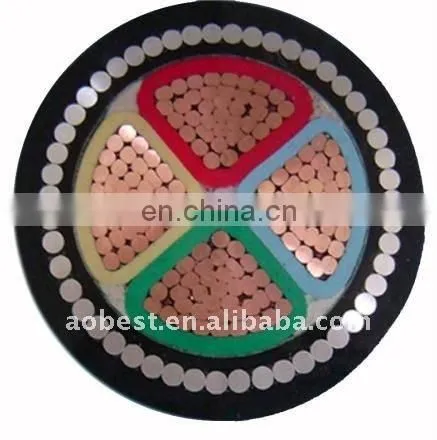

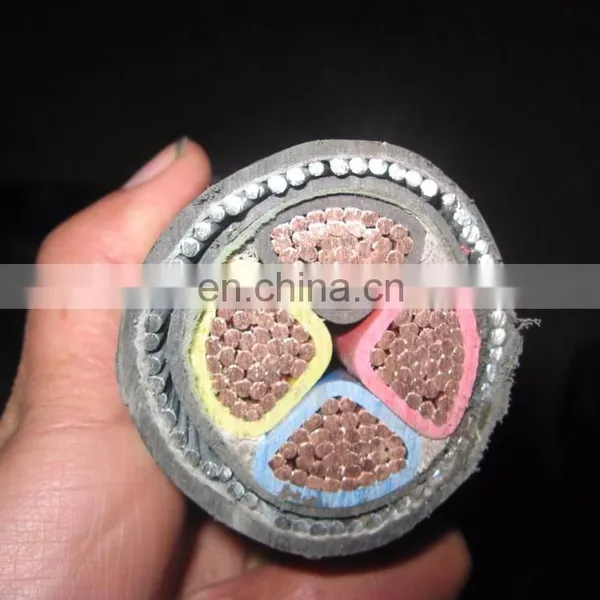

3. Construction: Stranded copper conductor for single and shaped conductors for multi-core cables, PVC insulated, PVC bedding, zinc plating steel wire armored and PVC sheathed cables.
4. Voltage: 0.6/1KV
---------------------------------------------------------------------------------------------------------
|
Type |
Name |
Application |
|
|
CU |
AL |
||
|
VV |
VLV |
PVC insulation&sheathed Power cable
|
For laying indoors, in tunnel and in ducts, unable to bear extarnal mechanical forces |
|
VV22 |
VLV22 |
PVC insulation&sheathed steel tape armour power cable |
Laying in the ground, afire-resistant, unable to bear extarnal mechanical forces |
| PVC/SWA/PVC ARMORED POWER CABLE 0.6/1KV | ||
| SIZE | DIA.OF CONDUCTOR | APPROX. OVERALL DIA. |
| MM2 | MM | MM |
| 2X25 | 7X2.14 | 25.2 |
| 2X35 | 7X2.52 | 27.3 |
| 2X50 | 10x2.52 | 29.2 |
| 2X70 | 14x2.52 | 30.4 |
| 2X95 | 19X2.52 | 34.8 |
| 2X120 | 24x2.52 | 38.3 |
| 2X150 | 30x2.52 | 41.4 |
| 2X185 | 37X2.52 | 45.3 |
| 2X240 | 37x2.88 | 14.8 |
| 2x300 | 37x3.23 | |

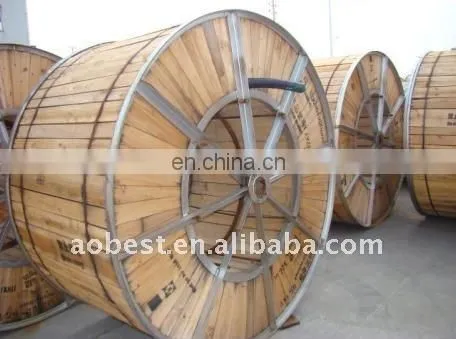

packing:export standard by wooded drum or as your requ
shipping:Shipped in 10 days after payment
We provide products with high quality at reasonable price, if more info, please email me , sales009(at).
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
- Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation
About Company:
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cable
Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.
Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.
Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.
Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.
Q: What are your main products?
