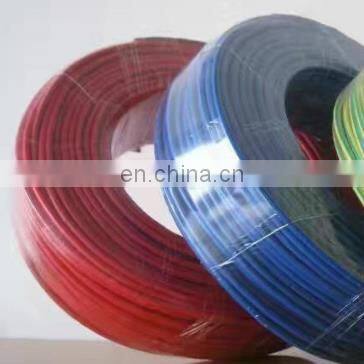

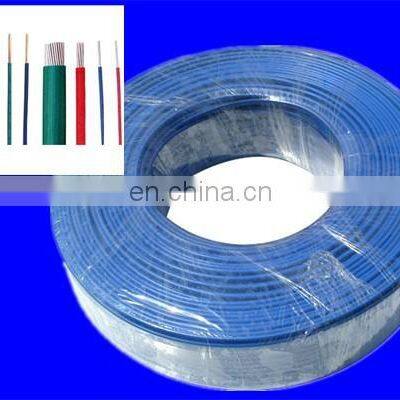

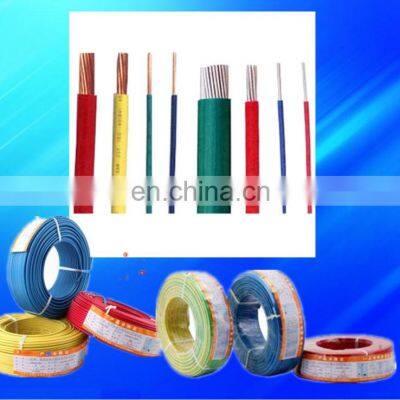

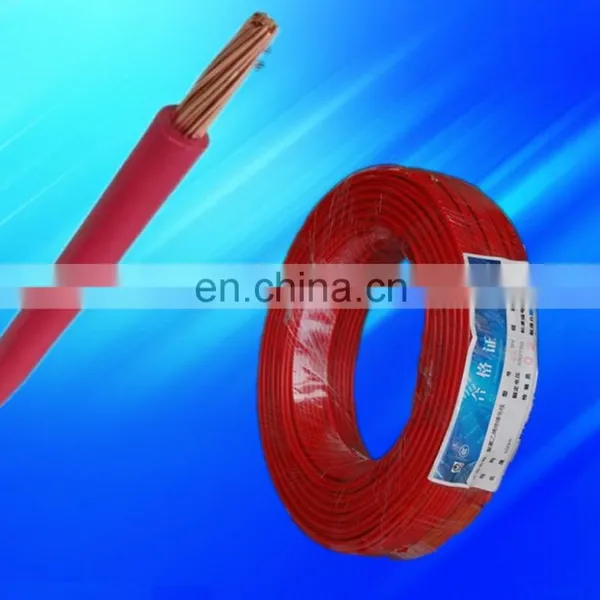

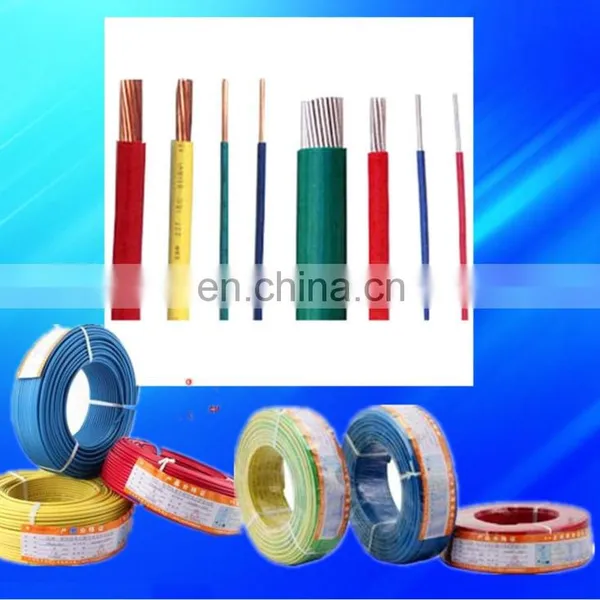

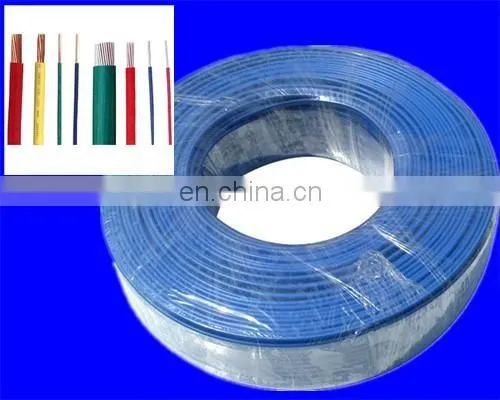

1.5mm Electrical Wire 2.5mm Home Use Electric Wire
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality! Thick Copper Conductor Pvc Insulated WireNegotiableMOQ: 1 -
Best Choice--copper Stranded Electric WireNegotiableMOQ: 1
-
Most Competitive Price PRODUCT BVR Cable/PVC WireNegotiableMOQ: 1
-
NHXMH-J 3*2.5mm2 Electric CableNegotiableMOQ: 1
-
High Quality Stranded Copper Conductor PVC Insulated CableNegotiableMOQ: 1
Details for electrical wire cable and electric wire
450/750V copper PVC insulated flexible wire
2.ISO9001 SGS SONCAP CIS
3.Ten years experience
4.OEM offer
Type BVR 450/750V copper conductor PVC insulated flexible wire
1.Standard:IEC60227
2.Certificate:ISO/CE/CCC
3.Voltage:450/750V,300/500V,300/300V
4.Working Temperature:
BV-105 model not more than 105°C, others not more than 75°C installation temperature not lower than 0°C.
Model and Name
|
Model |
Name |
|
BV |
Copper core PVC insulation power line |
|
BLV |
Aluminium core PVC insulation power line |
|
BVR |
Copper core PVC insulation flexible power line |
|
BVV |
Copper core PVC insulation PVC sheath round power line |
|
BVVB |
Copper core PVC insulation PVC sheath parellel power line |
|
BLVVB |
Aluminium core PVC insulation PVC sheath parellel power line |
| Type | Name | Laying place and requirement | Long term working temperature |
| 227IEC01/05 BV BLV |
Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
| Aluminum Conductor PVC insulated wires | |||
| 227IEC07 BV-90 |
Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible wire | Be for laying permanent place where flexible required | 70 |
| 227IEC10 BW |
Copper conductor PVC insulated PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLW | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BWB | Copper conductor PVC insulated PVC Sheathed flat wires | ||
| BLWB | Aluminum conductor PVC insulated sheathed flat wires | ||
| 227IEC02RV 227IEC06RV |
Copper conductor PVC insulated flexible connector | Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required. | 70 |
| 227IECC42 RVB |
Copper conductor PVC insualted flat flexible connector | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 227IEC52 RW 227IEC53 RW |
Copper conductor PVC insulated PVC sheated round flexible connector(light and common type) |
Comprehensive Data table of BV BLV Type PVC insualted wire
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Type BVR 450/750V copper conductor PVC insulate flexible wire
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.6 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
