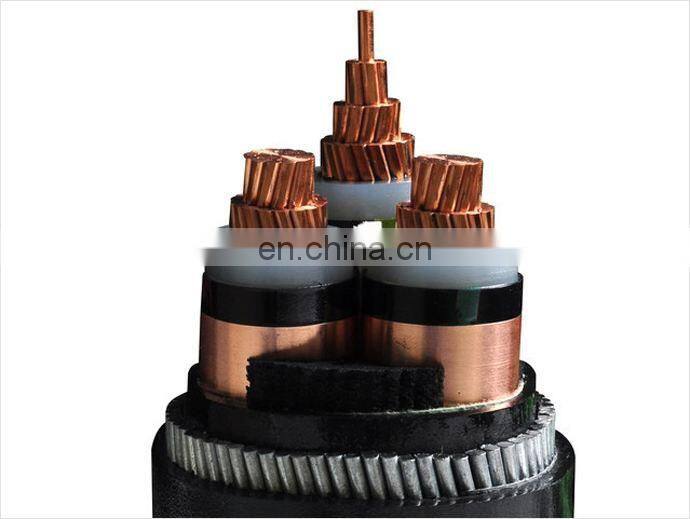

Gold Supplier 110KV High Voltage Cu/XLPE/STA/PVC Power Cable for Palestine

XLPE/PVC High Voltage Power Cable

Application:

Power cables for power networks, underground, outdoors and in cable ducting.

Standards:

ASTM, BS6622, IEC etc.

Conductor:

Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor screen:

Semi-conducting material

Insulation:

XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Insulation Screen:

Semi-conducting material

Metallic Screen:

Individual and overall copper tape screen to BS6622

Filler:

PETP (Polyethylene Terephthalate) fibres

Separator:

Binding tape

Bedding:

PVC (Polyvinyl Chloride) Type TM1 to BS7655

Armouring:

Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA)

Sheath:

PVC (Polyvinyl Chloride) Type TM1 to BS7655

Colour:

Red or Black or as clients' request

Voltage Rating:

19000/33000V

Temperature Rating:

0°C to +90°C

Minimum Bending Radius:

Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

We can provide more info than above data, if needed.The above are just some examples.

Customer's specifications are available upon request.
