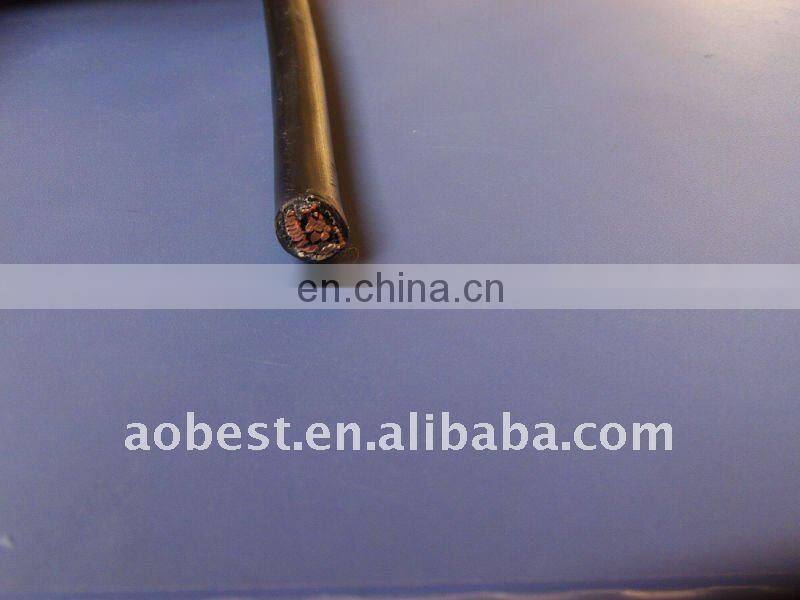

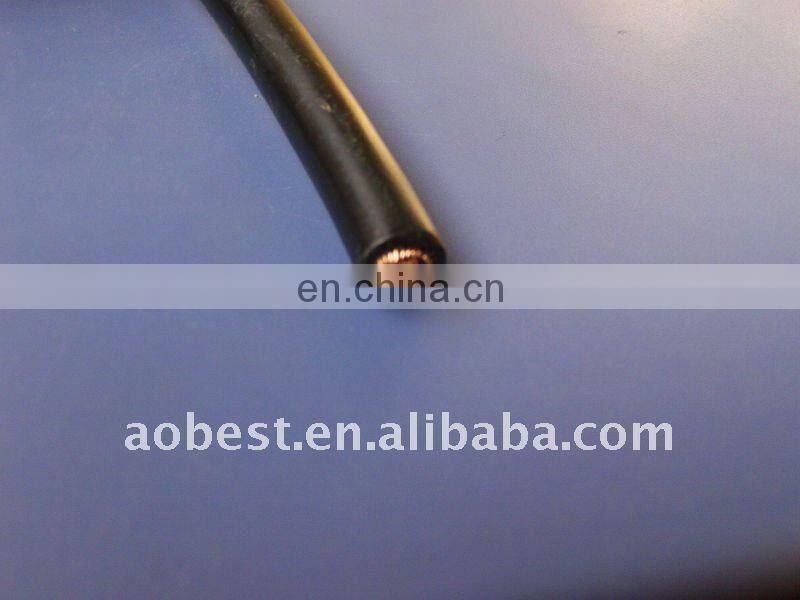

China Best Price BS7870 PVC Concentric Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price Single Phase Concentric CableNegotiableMOQ: 1 -
China Best Price 4mm 6mm 10mm 12mm 25mm Concentric CableNegotiableMOQ: 1
-
2x16mm Weather Dac Cable From AobestNegotiableMOQ: 1
-
SER/SEU Concentric Cable 6+6AWG for South AmericaNegotiableMOQ: 1
-
Concentric Cables With Communication Wire for South AfricaNegotiableMOQ: 1

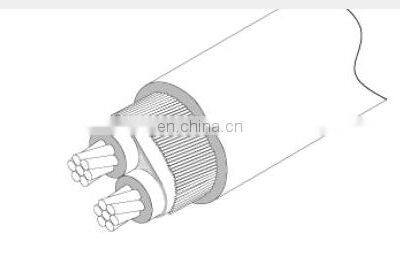

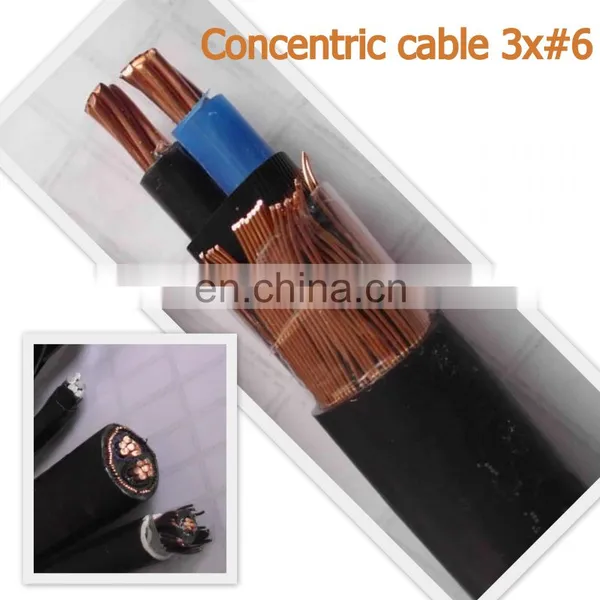

Concentric Split single phase service cable, 4mm to 35mm
Plain annealed stranded copper phase conductor,
XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.
XLPE insulated and plain annealed solid strand bare copper earth conductors,
PVC outer sheath. Black.
600/1000 volts
grade to BS7870.
Choose a cable type
| CCC Code | Conductor size (MM2) |
Stranding | Cores | Weight (KG/KM) |
Overall Diameter (MM) |
Gland Size |
Cleat | Trefoil Cleat |
|---|---|---|---|---|---|---|---|---|
| 4SPLITCON | 4 | 7/0.85 | 1 | 206 | 9.6 | 20S | - | - |
| 6SPLITCON | 6 | 7/1.04 | 1 | 281 | 11.4 | 20 | - | - |
| 10SPLITCON | 10 | 7/1.35 | 1 | 394 | 12.7 | 20 | - | - |
| 16SPLITCON | 16 | 7/1.70 | 1 | 583 | 14.6 | 25 | - | - |
| 25SPLITCON | 25 | *7/2.14 | 1 | 843 | 18.7 | 32 | - | - |
| 35SPLITCON | 35 | 7/2.52 | 1 | 1300 | 23 | 40 | - | - |
Conductor identification :
Brown live/Blue neutral.
Should not be installed at temperatures below 0oc or above + 60oc.
Also available in Violet outer sheath in 6mm, 10mm, 16mm & 25mm.
* Stranding of neutral is the same as phase conductor except 25 sq mm which has 11 x 1.70mm.
Please contact me freely; maybe I’ll give you a big surprise. ^_^
