FLAT CABLE
Flexible copper wire cooper insulation flat electrical cable suitable for mobile electrical equipment
Flat cable is produced by standard organization. It is suitable for mobile electrical equipment with rated AC voltage of 450V/70V or less. Flat cable structure is especially suitable for frequent bending occasions. It does not twist and folds neatly, such as driving. YB, YBF, YBZ three categories of products can meet the needs of various occasions. It is suitable for electrical connection between mobile electrical equipment in harsh environment such as power generation, metallurgy, chemical industry, port and so on.
Applications:
The cable with a special structural design, long life, the maximum increase in the elevator production enterprises operating efficiency. The elevator control cable provides overall electrical control with long suspension length and mechanical stress. Elevator cable for the use of steel cable core, can be used for long-range suspension use occasions.
Cable features:
the use of new oil-resistant special jacket, can be -15 degrees low temperature is still soft, flame retardant.
Polyester flattened cable with copper shield
Weathering cables are resistant to harsh environmental conditions
The flat cable requires less space than the round cable
The radius of curvature is smaller
Copper wire braided shield, anti-electromagnetic interference

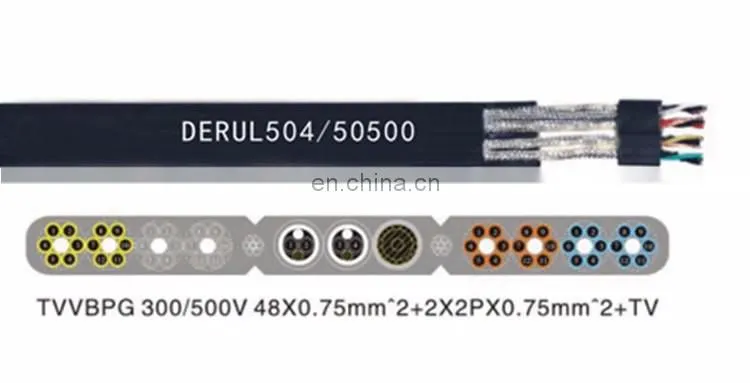

Cable structure:
Conductor: multi-stranded stainless steel wire, in line with VDE0295 standards
Insulation: special oil, flame retardant, mixed insulation
Sheath: oil, fire retardant, flexible special sheathing material, can be applied to outdoor occasions
*We can according to customer needs, programs or samples, custom all kinds of special cables,any cable request,please feel free to contact us.
the use of the crane is as follows:
When the lifting cables are arranged in a line
1, free to use more than 35 meters in length
2, the running speed is greater than 1.6m / s
It should be considered to add bearing components to the cable. The bearing components are generally galvanized soft steel wire rope or fiber rope such as aramid yarn.
Lifting cable in the plum-shaped twisted arrangement
1. Free suspension length is more than 80 meters
2, the running speed is 4m / s ~ 10m / S
Consideration should be given to adding load-bearing elements to the cable, which are typically galvanized soft steel wire ropes.
product manual
Elevator accompanying optical fiber elevator accompanying optical cable elevator audio and video fiber
Product Features:
The flexible flexible traveling cable adopts multi-mode fiber and reinforced steel core structure, which solves the technical problem that the quartz fiber is easy to stretch and break during the movement of the elevator, and promises a bending life of 1.5 million times in the normal use environment. The cable product can be suspended between the machine room, the hoistway and the car, thereby realizing the real-time transmission of high-bandwidth audio, video and other digital content between the elevator and the control room, and constructing a 100-megabit high-speed motion network in the elevator car. It is an excellent technical solution for elevator multimedia and dynamic liquid crystal display.
Our product features include:
A. Transmission bandwidth up to 155M, real-time transmission of video and audio without delay
Stalled demand
B. The signal has no attenuation transmission distance of 2 kilometers, and realizes the elevator of high-rise and super high-rise buildings.
High definition quality communication
C. The product successfully passed the 300,000 bending test and the 3000N tensile test. In practice
Service life up to 1.5 million bends (dynamic bending radius)
More than 400mm) - (click on the test name to view the test process animation)
D. Adopting reinforced steel core and PVC sheath design to ensure the actual long-term operation of the cable
Safe and durable in the environment
E. Flat structure design, more suitable for elevator shaft operating environment
Dimensions (width × thickness): 28 × 5.2mm
Product weight: 320 kg/km
Voltage level: 300/500V
Operating temperature: -25 ° C ~ 40 ° C
Sheath material: cold-resistant lead-free PVC elastic material
[Optical cable mechanical parameters]
Minimum bending radius: long-term 30 X D
Short term 20 X D
Bending fatigue life: >1500000 times (dynamic bending radius is greater than 400mm)
[fiber parameters]
Multimode fiber (62.5/125 um) (850/1300 nm)
Transmission distance: 2000 meters
Transmission bandwidth: window 850nm >160MHZ/km
Window 1300nm >200MHZ/km
Single mode fiber (8/125um) (1310/1550 nm)
Transmission distance: >2000 meters
Transmission bandwidth: window 1310nm >500MHZ/km
Window 1550nm >500MHZ/km
FLAT CABLE |
||||||
No. |
DERUL00002 |
Vlotage |
300/500V |
|||
Spec. |
4 cores |
Application |
Industrial |
|||
Cable diameter. |
28mm±1mm |
Certification |
CE, ISO9001 |
|||
Conductor material |
Bare copper |
Torsional |
High torsional |
|||
Color |
Yellow/blue/green/white/black and TBD |
Shield |
Aluminum foil shielding /tin - plated copper shield |
|||
Insulation |
Special PVC |
Inner sheath |
||||
Tensile structure |
High tensile strength of Kevlar fiber/Stainless steel |
Wrapping material |
Quality non-woven |
|||
Outer sheath |
Special PVC |
Temperature range |
Fixed laying: -40℃~+90℃. Move installment: -30℃~+80℃ |
|||
