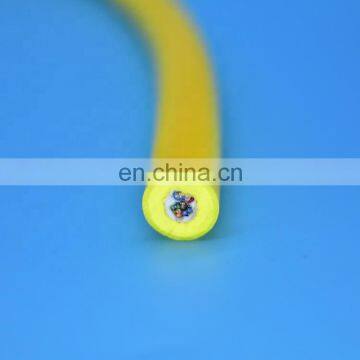

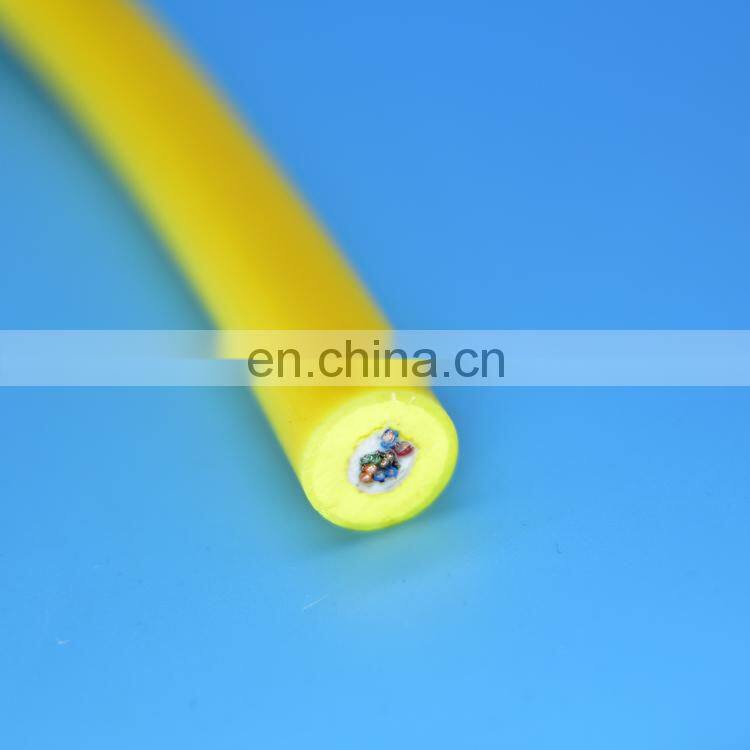

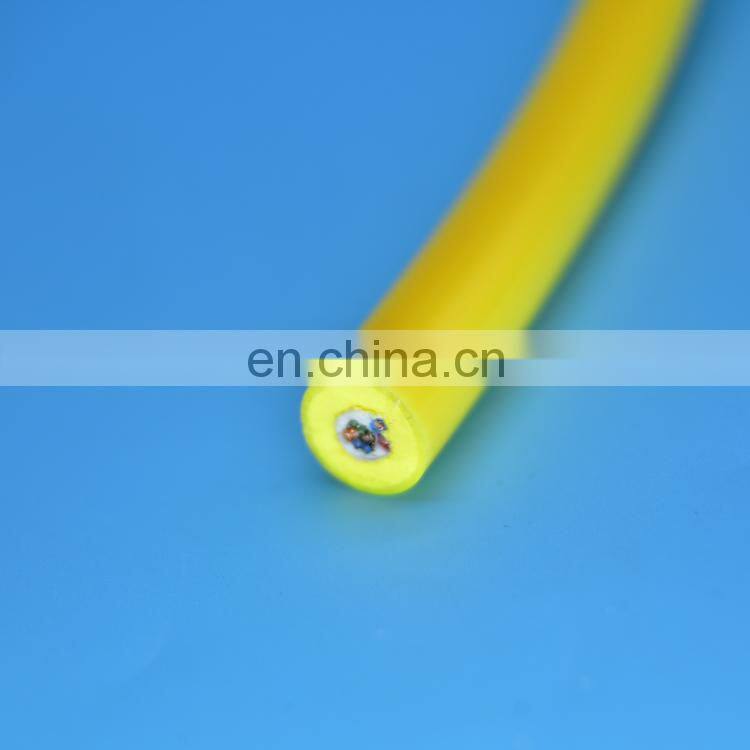

ROV cable 4 twisted pair signal cat5 neutral buoyancy floating cable
- 1000 per Month
- T/T Credit Card
- Zero/Neutrally Buoyancy Umbilical Robot Submersible Fathom Tether Cable ROV
- ROV Tether Floating Underwater ROV Cable For Small ROV Tools
- 3 core underwater floating cable rov robot cable
- 3 core optic fiber neutrally buoyant cable underwater rov tether
- Neutrally buoyant cable cat5 cat6 submersible ROV drone tether
- ROV Cable with Power lines and Signal wires
Product Description
Neutral buoyancy cable
With the development of marine resources, the more the use of the underwater robot, the complex movement of the underwater robot requires the use of a flexible or three-dimensional flexible cable, and requires that these cables have similar service life as those used in the linear drag chain system. the core, strand, shield and sheath material must be capable of withstanding the compressive forces produced upon bending and the change in the radial pressure produced by the torsional motion. The underwater robot cable uses the high wear-resisting property and the PU sheath material, and can effectively protect the twist-optimized twisted-in element from being damaged.
Neutral buoyancy cables are mostly used for underwater vehicle or underwater equipment control signal lines. Conventional (sea) hydroelectricity cables will sink in the (sea) water because the density is greater than the underwater density, and the floating cable density for buoys will have a certain buoyancy if the density of the floating cable is small, This seriously affects the operating accuracy of underwater equipment. The zero-buoyancy cable, however, can be kept at the same density in water, neither sinking nor rising. Reduce the impact on equipment operation.
Product characteristics
The water-tight network cable can be used in deep water, especially in deep water, with longitudinal water-tight characteristics, and the sea water does not penetrate into the deep-water electric cable for ships inside the cable
1.Stable signal transmission, strong conductor toughness: multiple fine twisted oxygen free copper wire as a conductor to ensure the flexibility of the line body
2. Excellent anti-jamming ability: 1. Aluminum foil shield 2. Tin plated copper mesh braided to effectively resist external low frequency and high frequency electromagnetic interference
3. Excellent bending resistance: optimized cable pitch special structure design meticulous material selection, suitable for high-frequency bending situation continuous core
4. Excellent tensile strength: kafla fiber filling can increase tensile strength according to customer requirements. Flexible wrap material-non-woven wrapped wire body with anti-tension filler, bending motion of cable back and forth is an effective buffering effect
5. Good temperature tolerance: 1. The PVC special underwater network wire is -15 ℃ ~ 70 ℃, and the underwater special network wire is -40 ℃ ~ 70 ℃.
6. Good wear resistance: special production technology and high quality outer sheath materials, wear-resistant, oil-resistant, anti-aging-special flexible special sheath materials (color can be selected by the customer) bending life of more than 5 million sheathing does not break.

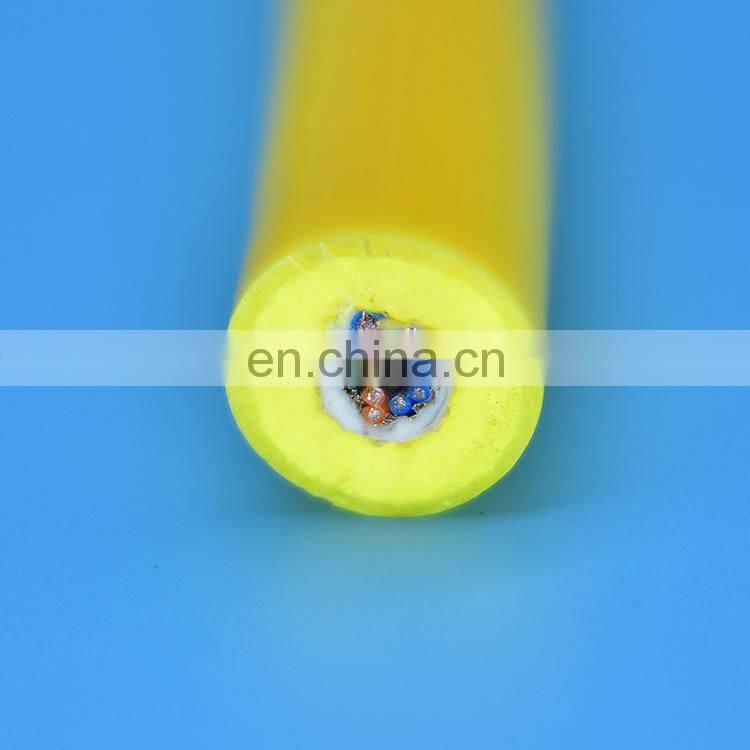

Cable structure:
1.Conductor: High-flexibility (90.9%) oxygen-free copper wire (or changed to tinned copper conductor)
2.Insulation: foamed thermoplastic elastomer/ TPE/ TPV material as the insulation material of the cable;
3.Core structure: torsional delamination structure, grouping gap filling, twisting structure after stratification cluster;
4.Core color: black digital distinction, or color line core color discrimination
5.Shielding: aluminum foil wrapped in Mala, braided shield with high-flexible tin-plated copper mesh
6.Shielding structure: split screen (single layer or double layer) main screen (single layer or double layer); total screen (single layer or double layer)
7.Winding: flexible nonwoven / polyester tape wrapped
8.Tensile fill: Kafla center or gap filling, as well as Kafla tensile fabric layer (customized as required);
9.Outer sheath: high flexible foamed polyurethane material, wear resistance, tensile resistance, waterproof, oil resistance, cold resistance, corrosion resistance
10.Inner sheathing: low viscosity strong extrusion type inner sheath (can be customized according to need);
11.Color: orange, yellow, blue, etc.
Technical parameters
Rated voltage: 300 / 500V,600/1000V
Test voltage: 2500V
Temperature range: -40 ℃ to 70 ℃
Small bend radius: 6-meter cable outer diameter
Water pressure grade 4. 5MPa 6. 0MPa 10. 0MPa 10. 0MPa 70. 0MPa
Scope of application
Cable composition: optoelectronic composite cable, 485 communication, CAN communication, signal control and power supply.
Suitable for all kinds of land robot (crawler, crawling, hoisting, etc.) with towing, lighting, control, television camera, signal transmission, power supply and other special cable
CCTV pipeline inspection crawling robot cable, pipeline endoscope robot cable, pipeline detection and salvage robot cable, pipeline overhaul machine human cable, mechanical arm land robot cable, sewage system silt suction robot cable, etc.
As downhole measuring cable, monitor. Underground geophysical cables, mining cables, exploration cables, etc. Especially suitable for all kinds of special geological cables in hydropower, coal, engineering and other departments,
Special cables such as downhole lighting and equipment power supply, signal transmission of angle of vertex and azimuth measurement of borehole, etc.
What we can offer?
Our materials are known for their excellent chemical and mechanical strength and good electrical properties. The variety and special requirements in the field of manufacturing industry have also made very high requirements for the high-level conductors, insulation and sheath materials used by the cable. The flexible cable provides you with a wide range of solutions for all applications.
The more complex the application system of the customer, the more necessary to customize the cable. Our field of expertise is the production of custom cables and corresponding systems based on the customer's special requirements. From R & D to production up to logistics, all are one-stop service.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. 24 hours service
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
