Help CenterROTARY TABLE SHOT BLASTING MACHINE
Related Products
-
SERVO CNC TURRET PUNCHING MACHINECNY 7660 - 30650MOQ: 100 Pieces -
SERVO CNC TURRET PUNCHING MACHINESHOT PEENING MACHINECNY 7660 - 30650MOQ: 100 Pieces
-
AIR BLAST ROOMCNY 7660 - 30650MOQ: 100 Pieces
-
ANCHOR CHAIN SHOT BLASTING MACHINECNY 7660 - 30650MOQ: 100 Pieces
-
BARREL TYPE SHOT BLASTING MACHINECNY 7660 - 30650MOQ: 100 Pieces
Rotary shot blasting machine or table type shot blasting machine is suitable for various shapes and dimensions, casts, forged parts, pressed parts, steel, and non-ferrous metal parts and parts made from fragile materials, cleaning surface, removing casting sand and filings, consolidating the surface (micro handling), roughing the surface before colouring, etc.
Rotary shot blasting machines are split into single rotary table shot blasting machine and swing table shot blasting machine. swing table shot blasting machine efficiency is much higher than the single rotary table shot blasting machine.
Rotary table blasting machine Basic Specification
ITEM |
RT1000/900 |
RT1200/900 |
RT2000/1500 |
Maximum dimension of chamber (mm) |
Φ1350×560 |
Φ1350×860 |
Φ2654×560 |
Maximum workpiece weight (kg) |
400 |
400 |
1000 |
Diameter of Turn Table(mm) |
Φ1200 |
Φ1200 |
Φ2500 |
Number of blast wheels and power (kw) |
11 |
2×7.5 |
2×15 |
Overall dimension (mm) |
1500×3450×3780 |
1900×3450×4160 |
4260×3647×5366 |
Material of table |
Manganese |
Manganese |
Manganese |
Ventilation requirements (m3/h) |
4000 |
6000 |
8000 |
Material of Protective lining |
Manganese/Cast alloy |
Manganese/Cast alloy |
Manganese/Cast alloy |
Material of blast chamber |
Mild steel |
Mild steel |
Mild steel |
Swing Tables Shot Blasting Machines Basic Specification
ITEM |
RTD1000 |
RTD1200 |
RTD2000 |
Maximum Diameter of Rotary table (mm) |
Φ1000 |
Φ1200 |
Φ1500 |
Maximum workpiece weight (kg) |
400 |
400 |
1000 |
Number of blast wheels and power (kW) |
11 |
2×7.5 |
3×11 |
Material of table |
Manganese |
Manganese |
Manganese |
Ventilation requirements (m3/h) |
4000 |
6000 |
8000 |
Material of Protective lining |
Manganese/Cast alloy |
Manganese/Cast alloy |
Manganese/Cast alloy |
Material of blast chamber |
Mild steel |
Mild steel |
Mild steel |

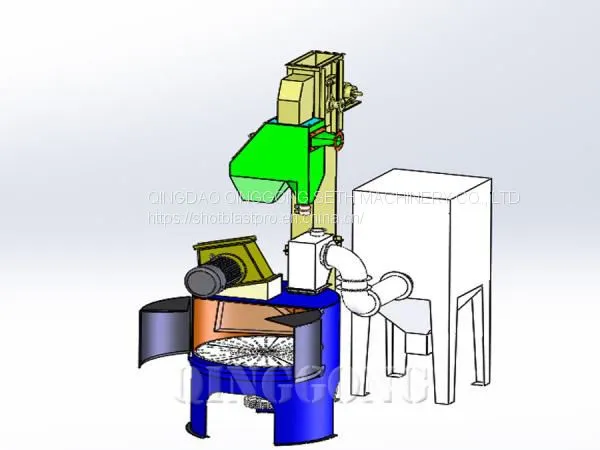

Treated objects are loaded on a perforated rotating table. A big door, provide simple and fast loading. The machine can have the table fitted to the machine's door, which enables loading with a hoist or fork-lift truck to the entire surface of the table. The machine also can be equipped with two tables, enabling simultaneous shot blasting of treated objects inside the machine and loading or turning treated objects in front of the machine.
The machine’s housing is robust and protected by wear-resistant materials. High efficiency of the machine is enabled by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials. Standard equipment of larger machines includes PLC Siemens, display, timer automatic or manual mode, automatic start-up of turbines, working-hours counter, etc. For shot blasting cast containing larger quantities of casting sand, a magnetic sand cleaner may be installed.
QINGGONG MACHINERY is a professional shot blasting machine manufacturers. We provide Roller Conveyor Shot Blasting Machine, sand blasting machine parts, blastpro shot blaster, rotary table shot blasting machine for sale, rotary shot blast machine, table blast machine, rotary table blast machine, used rotary table shot blasting machine and so on. Want to know about shot blasting machine specifications and rotary blast table? Please contact us.
