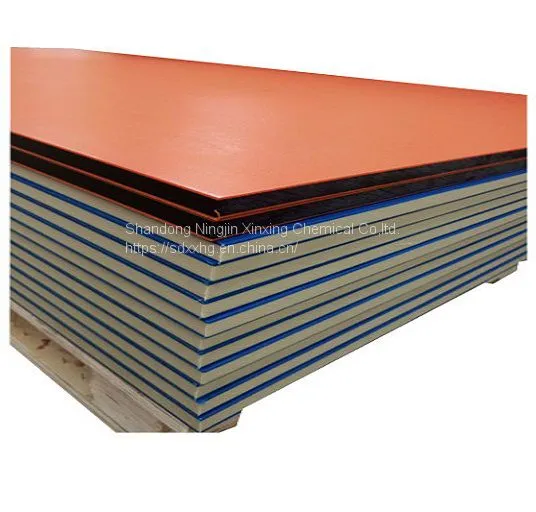

HDPE ColorCore is a versatile multi-color engravable high-density polyethylene sheet with multiple layers of contrasting colors. It is a superior homogeneous sheet, a product of a unique state-of-the-art continuous process, and manufactured to the highest standards in the industry. hdpe color core has a matte finish on both sides of the sheet. It is environmentally stabilized to withstand the harshest outdoor conditions. hdpe color core will not rust, delaminate or rot when exposed to UV, humidity or water. hdpe color core is made with high-impact-resistant polymer to handle more abuse than conventional sign materials. Its thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with hdpe color core. The polymer sheet never needs painting or refinishing, works like wood and it is easy to fabricate using common woodworking tools and techniques. The material is easy to engrave and machine, as the cap is approximately .050” thick. hdpe color core is upgradable to Xinxing with an advanced antimicrobial technology for protecting the product surface against stain and odor causing bacteria, algae and fungi.
Key Properties
High Impact Strength
UV Stabilized
Polyfusion Co-Extruded Cap
Will Not Warp, Rot or Delaminate
FDA & USDA Compliant
Limitations
High Coefficient of Thermal Linear Thermal Expansion
Low Heat Defection & Continuous Use Temp
Relatively Low Mechanical Properties
SIZE
Standard Sheet Size
in: 48” x 96”
mm: 1219 mm x 2438 mm
Standard Gauges
in: 1/4” 1/2” 3/4”
mm: 6.4 mm 12.7 mm 19 mm
Thickness .250” (6.4 mm) to .750” (19 mm) Width & Length 48.000” (1219 mm) x 96.000” (2438 mm)
COLOR
Blue / White / Blue
White / Blue / White
Red / White / Red
White / Red / White
Red / Black / Red
Black / Red / Black
Green / White / Green
White / Green / White
Green / Tan / Green
Tan / Green / Tan
Yellow / Black Yellow
Black / Yellow / Black
Brown / Tan / Brown
Tan / Brown / Tan
Brown / White / Brown
White / Brown / White
Black / White / Black
White / Black / White
APPLICATIONS
Architectural Applications
Carnival Games
Children’s Furniture
Furniture
Marine Applications
Museums
Picnic Tables
Point-of-Purchase Displays
Signage and Wayfinding
DATA SHEET
Description
Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name XINXING
Additives Proprietary Additives
Color Multiple Colors
Manufacturer Xinxing
PHYSICAL
Property
Test
Unit of Measure
Value
Density ASTM D792 g/cm³ 0.955
ASTM D792 lb/in³ 0.035
MECHANICAL
Property
Test
Unit of Measure
Value
Tensile Strength ASTM D638 psi 4,100
Tensile Modulus ASTM D638 psi 255,000
Tensile Elongation at Break ASTM D638 % 600
Flexural Modulus ASTM D790 psi 185,000
Compressive Strength ASTM D695 psi 4,950
Hardness ASTM D785 NA Shore D68
IZOD Impact-Notched ASTM D256 ft-lb/in 1.1
THERMAL
Property
Test
Unit of Measure
Value
Heat Deflection Temp ASTM D648 °C at 264 psi 75
ASTM D648 °F at 264 psi 167
Max Continuous Operating Temp °C 82
°F 180
Minimum Operating Temp °C -60
°F -76
Flammability Rating UL94 NA HB
COMPLIANCE
Description
Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description
Value
ASTM Shape Spec ASTM D4976
UV Resistant Yes
Relative Cost $$
Machinability 1
