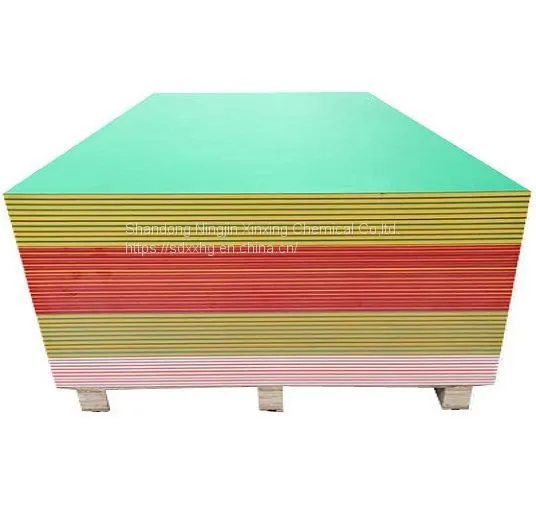

colorcore hdpe sheet with 3 layer and orange peel texture surface

HDPE color core Sheet is environmentally stabilized high-density polyethylene which has been developed to withstand the harshest outdoor conditions. It can be used in wet areas that need to be washed often for cleaning, or are regularly exposed to moisture. It can be fabricated using common woodworking tools and techniques. Its thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with Xinxing color board. We have improved Xinxing Color core so it is now easier than ever to engrave. We have made the cap consistent in thickness for all three gauges of xinxing color core, for a very uniform appearance. So when your project calls for different gauges of material, you can be confident the at your engravings will have the same quality look from sheet to sheet. Base materials are FDA approved as are most pigments. It is made with high-impact-resistant polymer to handle more abuse than conventional sign materials. hdpe ColorCore is a superior homogeneous sheet, made with a unique state-of-the-art continuous process. It is manufactured to the highest standards in the industry.

Xinxing color core is upgradable with our exclusive antimicrobial additive. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99% and killing the microbes on contact.

HDPE Colorcore Have Many Different Qualities Including

Abrasion-Resistant

Scratch Resistant

High Tensile

High Stiffness

Tank Applications

Stress-Resistant

Crack Resistant

NSF Approved

Food Grade

Features of Xinxing HDPE Sheets:

Environmentally stabilized high-density polyethylene

Developed to withstand the harshest outdoor conditions.

Can be used in wet areas that need to be washed often for cleaning, or are regularly exposed to moisture.

Can be fabricated using common woodworking tools and techniques.

Thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications.

Available with antimicrobial additives.

1/4 in    8 in × 12 in

1/4 in    12 in × 24 in

1/4 in    12 in × 12 in

1/2 in    8 in × 12 in

1/2 in    12 in × 12 in

2440x1220mm

2400x1200mm

96''x48''

8'x4'

96inch x 48inch

8feet x 4feet

Thickness .250” (6.4 mm) to .750” (19 mm) Width & Length 48.000” (1219 mm) x 96.000” (2438 mm)

Blue / White / Blue

White / Blue / White

Red / White / Red

White / Red / White

Red / Black / Red

Black / Red / Black

Green / White / Green

White / Green / White

Green / Tan / Green

Tan / Green / Tan

Yellow / Black Yellow

Black / Yellow / Black

Brown / Tan / Brown

Tan / Brown / Tan

Brown / White / Brown

White / Brown / White

Black / White / Black

White / Black / White

Architectural Applications

Carnival Games

Children’s Furniture

Furniture

Marine Applications

Museums

Picnic Tables

Point-of-Purchase Displays

Signage and Wayfinding

Playground Equipment

Signals and Park Benches

Quality Lockers and Cabinets

Density (ASTM D1505)

0.96 g/cc

Tensile strength at yield (ASTM D638)

> 4100 psi

Tensile modulus (ASTM D638)

225,000 psi

Elongation at yield (ASTM D638)

9.8%

Elongation at break – % (ASTM D638)

600

Flexural modulus (ASTM D790)

185,000 psi

Heat deflection temp. 66 – psi (ASTM D648)

167° F

Screw and nail withdrawal (ASTM D1761)

657 lbs and 63 lbs

Cut tolerance

+/- 1/8"

Color

Black

Color

White

Surface Finish

Textured

Type

Two-color engravable

Top and Bottom Layer Thickness

0.050"
