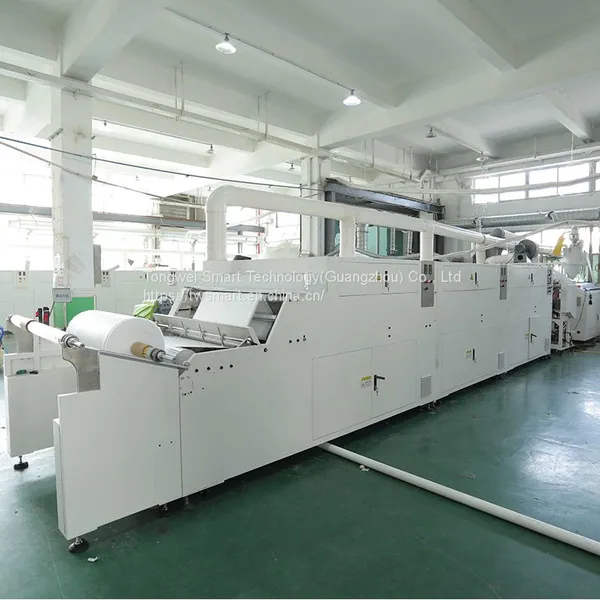

N95 N99 Standard Full Automatical 880mm Online Water Electret Melt Blown Fabric Producion Line V.0
Product Details:
The PP meltblown nonwoven production line is a polymer melt extruded from a screw extruder. The polymer is extremely stretched by high-speed hot air or other means to form very fine short fibers, which are aggregated to A web is formed on a roller or a screen curtain, and is finally reinforced by self-adhesion or thermal bonding. Its unique properties are widely used in mask filter materials, thermal insulation filling materials, medical health materials, wiping materials, etc.
Applications of Tongwei Meltblown Fabric
● Medical supplies
surgical masks, disposable surgical drapes, surgical drapes, shoe covers, etc.
● Sanitary materials
Baby diapers, adult incontinence pads, women's sanitary napkins, other cleaning applications, etc.
● Packaging supplies
Shopping bags, rice bags, tea bags, clothing packaging, etc.
● Household products
Spring cloth, bedding, seat products, etc
● Sanitary materials
Baby diapers, adult incontinence pads, etc.
● Technical engineering
Civil engineering, construction engineering, agricultural field, automobile field, etc.
Technical Parameters:
Model No. |
MY-880 |
Total Power |
260kw |
Power Supply |
380VAC |
Width of Nozzle |
820mm |
Mechanical Line Speed |
4-20m/min |
GSM Range |
20-80g/m² |
Workers Needed |
20-80g/m² |
Production Capacity |
500-800kg/day |
Water Consumption |
500kg/h |
Total Weight |
2500kg |
Total Size |
12m*2m*2.8m |
Components:
① Meltblown Host
② Electronic Control System
③ Roots Blower
④ Filter
⑤ Metering Pump
⑥ Spinneret
⑦ Meltblown Die
⑧ Suction Fan
⑨ Pure Water System
⑩ Vacuum Pump
⑪ Web Former
⑫ Drier
⑬ Slitter-rewinder
