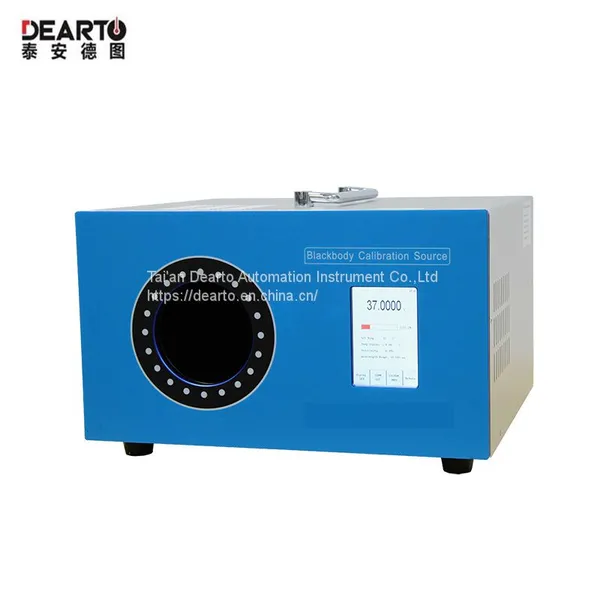

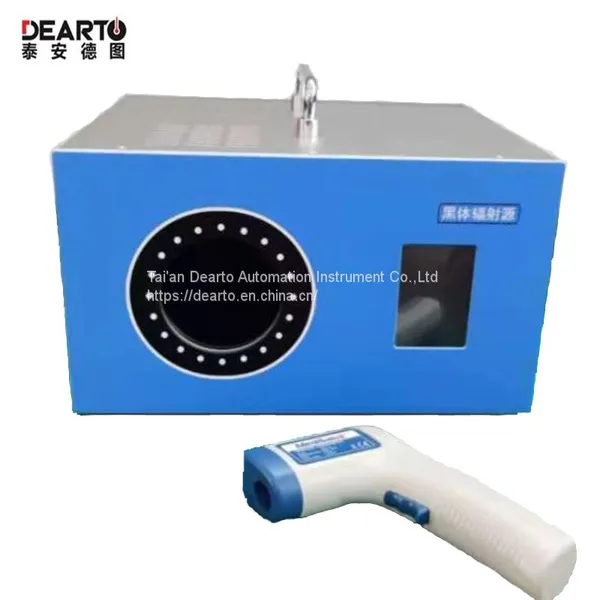

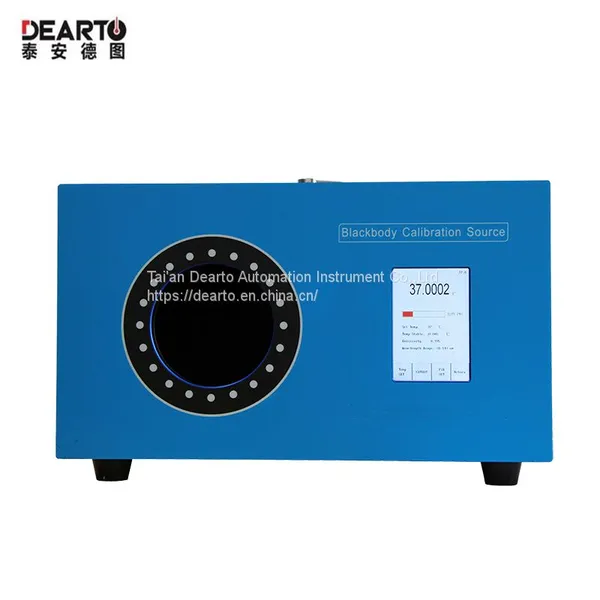

With isothermal cavity, the DTR-20 is a portable blackbody calibration source utilizing a digital indicating temperature ambient 20℃ to 50℃ (68F to 122F). The 80 mm diameter end closed tube is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provide readout.
APPLICATION

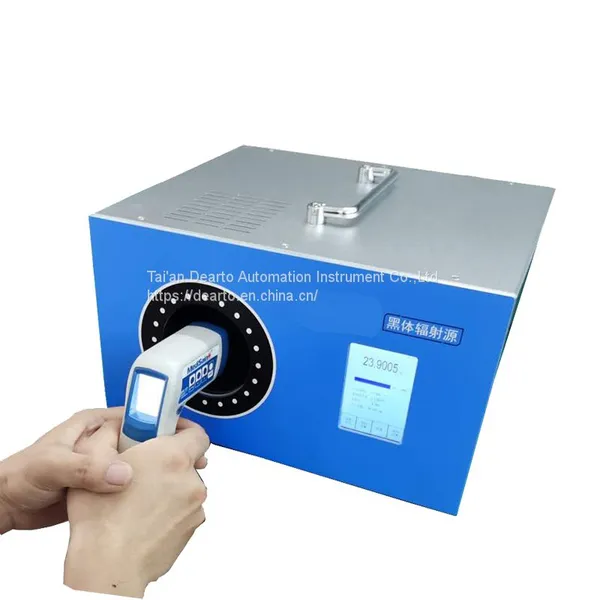

l Calibrate ear infrared thermometer
l Calibrate forehead infrared thermometer
l Calibrate thermal camera
l Calibrate infrared screening instrument
l Calibrate infrared sensor
l The isothermal cavity
l Better than 0.995 emissivity
l 80mm diameter aperture
l 0.05°C high stability
l Calibrate from 20°C to 50°C
l Built-in temperature correction function
l Portable and easy operate
Temperature Range |
20℃ to 50℃ (68F to 122F) |
Aperture size |
80 mm diameter |
Emissivity |
> 0.995 |
Cavity type |
Isothermal Cavity |
Display resolution |
0.001℃ |
Control stability |
± 0.05℃ after 10 minutes |
Blackbody uniformity |
± 0.05℃ |
Heat cavity shape |
End closed tube |
Heat up time |
10 min. from amb. to 20℃, 10 min. from amb. to 50℃ |
Control method |
Digital PID controller with readout |
Temperature sensor |
AAA Precison platinum RTD |
Power supply |
110-220V AC, 50Hz, 350W |
Interface |
RS232 |
Dimension |
320 mm(D) x 195 mm(W) x 275mm(H) |
Net weight |
Appr. 9 kg |
