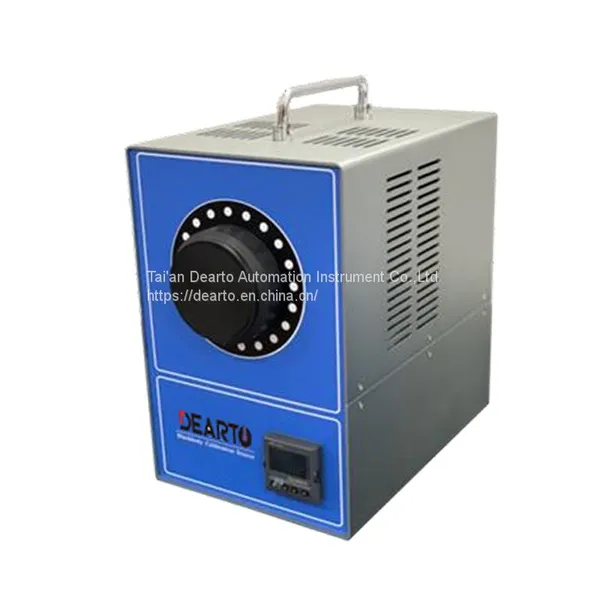

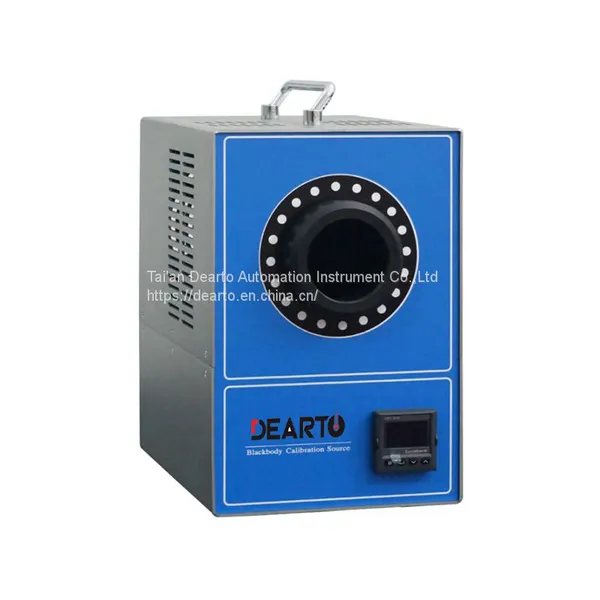

DTR-23 is a portable blackbody calibration source utilizing a digital indicating temperature from -23℃ to 150℃. A precision platinum RTD temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within 0.01℃ of the set points.
The black body emitter mechanism uses a resistive heating device that provides a long life, short stabilization times, and stable temperature control.
APPLICATION
l Infrared temperature sensors
l Infrared thermal imaging systems
l Spectrographic analyzers
l Radio meters
l Flux meter
l Ideal for most of IR Guns!
l Temperature range -23 to 150℃
l 65 mm aperture diameter end closed tube
l Emissivity is better than 0.995
l Fast Heat Up & Cool Down Times
l 0.15℃ high temperature stability
l Built-in temperature correction function
l Simple to Use
l Rugged & Light weight
Temperature range | -23℃ to 150℃ |
Aperture diameter | 65 mm |
Heated emitter shape | End closed tube |
Emissivity | better than 0.995 |
Resolution | 0.01℃ (<100℃);0.1℃ (>100℃) |
Stability (10min) | 0.1℃ |
Uniformity | 0.15℃ |
Display accuracy | 0.5℃ |
Cool down time | 30 minutes from ambient to -20℃ |
Heat up time | 30 minutes from ambient to 150℃ |
Control method | Digital PID controller with readout |
Temperature sensor | Precision Platinum RTD |
Power supply | 220VAC, 350VA (110VAC is option) |
Interface | RS485 |
Calibration band | 8um-14um spectral band |
Dimension | 300mm(H)x 200mm(W)x 280mm(D) |
Net weight | Approx. 8.3 kg |
