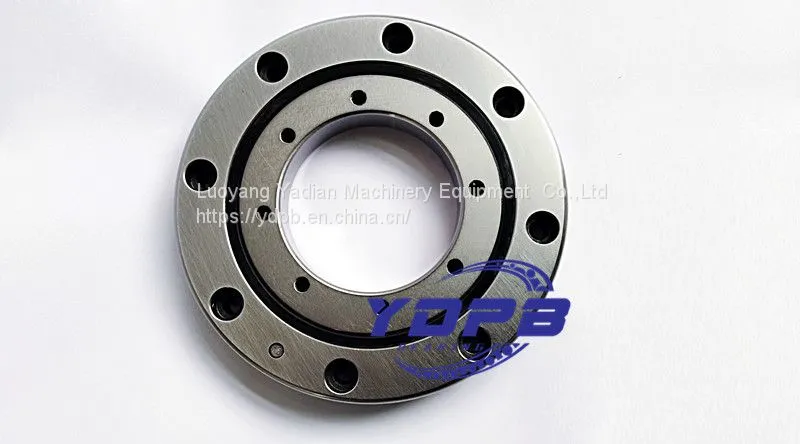

RU124 X UUCCOP5 Crossed Roller Bearings 80x165x22mm thk cross roller ring

FOB Price

US$ 1 - 100000 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Place of Origin	China
Model Number	RU124 X UUCCOP5	Number of Row	Other, multi-row
Precision Rating	P4 P5 P2	Outside Diameter	20, 350
Bore Size	12, 45

Product Description

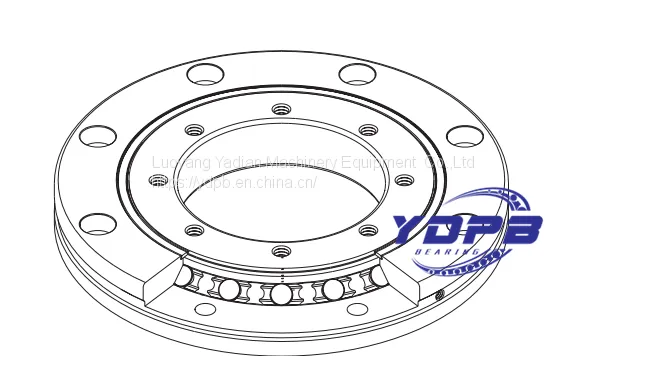

RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Rolling and Plain bearings,accessories RU series, without gear teeth,Sealed on both sides.

Series Models:

RU42,RU66,RU85(G)(X),RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)

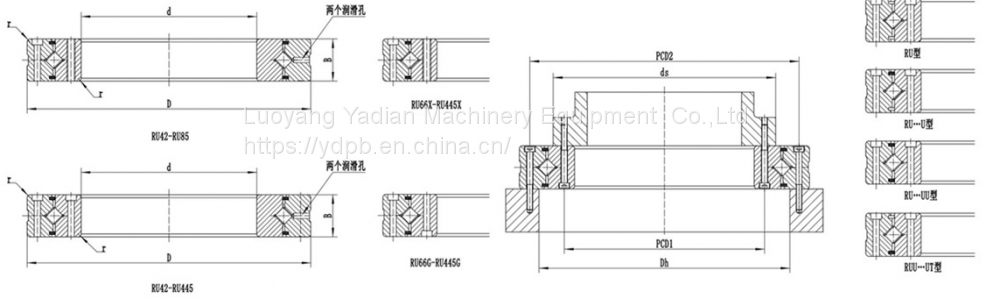

Description of Cross Roller Bearings holes

No symbol: counterbore holes of the inner and outer rings face the same direction

G: counterbore holes of the inner and outer rings face opposite directions

X: tapped hole on the inner ring (through hole)

Variety choose

Precision can be P5 P4 P2,clearance can be CCO or CO

If you want anti-rust ,pls contact us

Note: CRBF series structure and parameters same as our Ru series ,if need special ,pls contact us .

Main Parameters for RU124 X UUCCOP5

Bearings Model

Boundary Dimensions

Shoulder height

Basic load rating（radial）

Relation between the mounting holes

Weight

PCD

Oil hole

rmin

Inner ring

Outer ring

Cr/kN

Cor/kN

PCD1

mounting holes

PCD2

mounting holes

RU124X

165

124

3.1

114

134

33.1

50.9

10-M5 through

148

10-ф5.5 throug ф9.5 counterbore depth5.4

2.6
