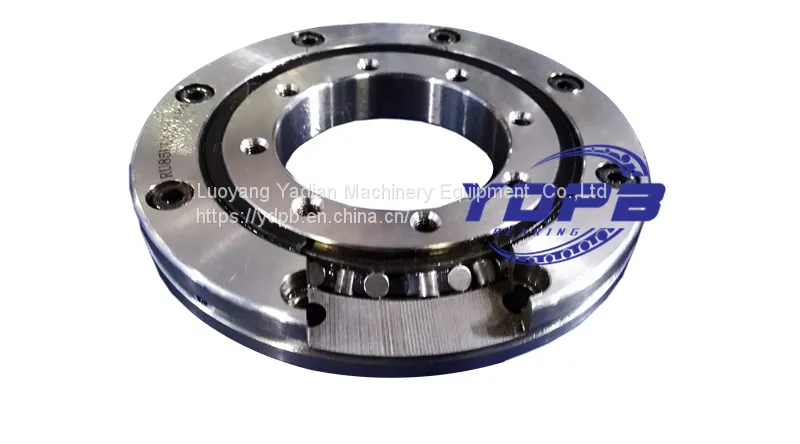

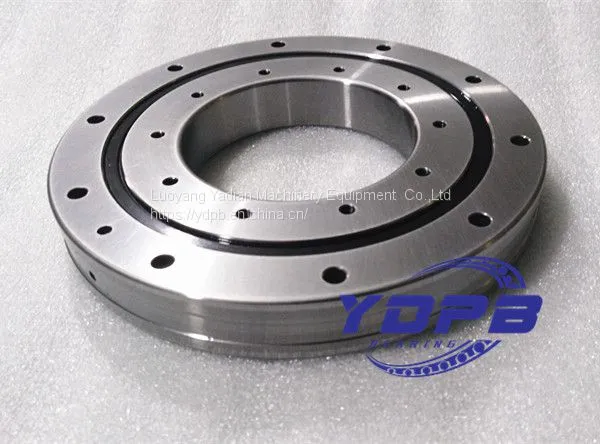

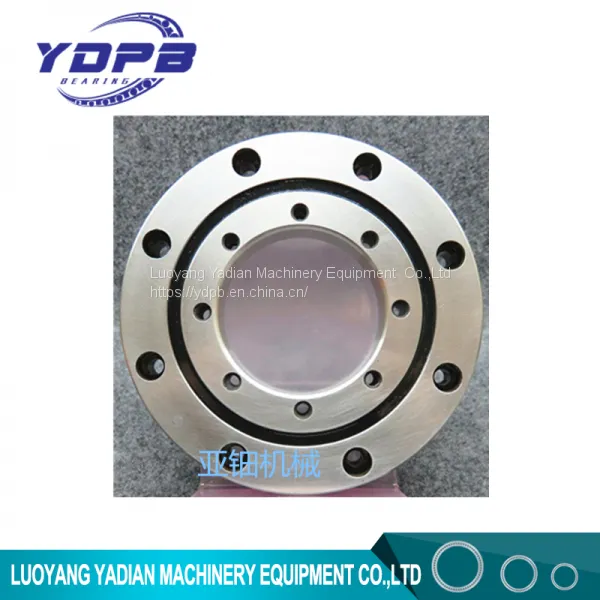

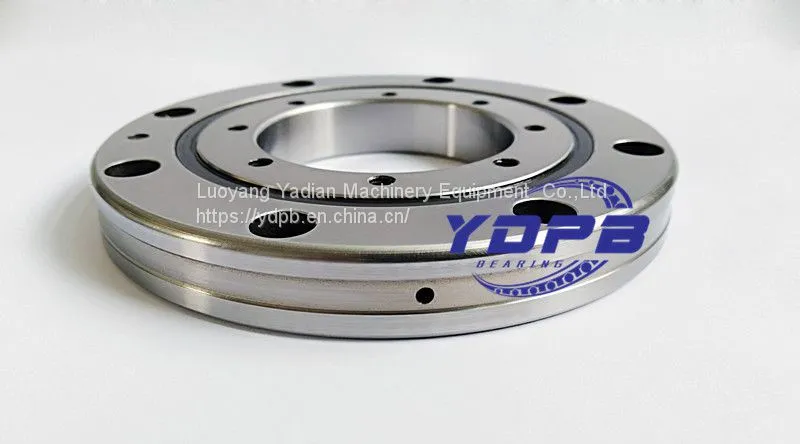

RU148UUCCOP5 Crossed-Roller Rings Thk Bearings High Rigidity

FOB Price

US$ 1 - 100000 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Place of Origin	China
Model Number	RU148UUCCOP5	Number of Row	Other, multi-row
Precision Rating	P4 P5 P2	Outside Diameter	20, 350
Bore Size	12, 45

Product Description

RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Rolling and Plain bearings,accessories RU series, without gear teeth,Sealed on both sides.

Series Models:

RU42,RU66,RU85(G)(X),RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)

Description of Cross Roller Bearings holes

No symbol: counterbore holes of the inner and outer rings face the same direction

G: counterbore holes of the inner and outer rings face opposite directions

X: tapped hole on the inner ring (through hole)

Variety choose

Precision can be P5 P4 P2,clearance can be CCO or CO

If you want anti-rust ,pls contact us

Note: CRBF series structure and parameters same as our Ru series ,if need special ,pls contact us .

Main Parameters for RU148UUCCOP5

Bearings Model

Boundary Dimensions

Shoulder height

Basic load rating（radial）

Relation between the mounting holes

Weight

PCD

Oil hole

rmin

Inner ring

Outer ring

Cr/kN

Cor/kN

PCD1

mounting holes

PCD2

mounting holes

RU148(G)

210

147.5

3.1

1.5

133

162

49.1

76.8

112

12-ф9 throug
ф14 counterbore depth 8.6

187

12-ф9 throug
ф14 counterbore depth 8.6

4.9

RU148X

12-M8 through
