Product Details
Brand Name: | SUPOHEER | Place of Origin: | China |
Product Description
One-way Traction AGV agv manufacturing autonomous guided vehicle automatic guided vehicle system
Product Description
Automatic guided transport vehicle-introduction
Automated Guided Vehicle-AGV (Automated Guided Vehicle) refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices that can travel along a prescribed guide path, with safety protection and various transfer functions. AGV belongs to The category of Wheeled Mobile Robot (WMR-Wheeled Mobile Robot). A truck that does not require a driver in industrial applications, and uses a rechargeable battery as its power source. Generally, it can be controlled through a computer to control its travel route and behavior, or use an electromagnetic path-following system to set up its travel path. The electromagnetic track is glued to the floor, and the driverless follows the electromagnetic track. The message carries the transporter that moves and moves.
The automatic guided transport vehicle-the guidance method of AGV
1. Electromagnetic induction guidance. The electromagnetic field formed by the low-frequency guide cable and the electromagnetic sensing device are used to guide the operation of the unmanned guided vehicle.
2. Laser guidance. The laser scanner is used to identify several fixed signs set in its range of motion to determine its coordinate position, thereby guiding the operation of the AGV.
3. Magnet-gyro guidance. Use a special magnetic position sensor to detect small magnets installed on the ground, and then use gyroscope technology to continuously control the running direction of the unmanned truck.
Let robot smarter service for world.
AGV customized electric remote control rail transfer car is designed for transporting heavy cargoes or equipment from one bay to anther in factory, It can be used indoor or outdoor the fields include metallurgy,foundry, new factory construction and ship building and soon with different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Product introduction

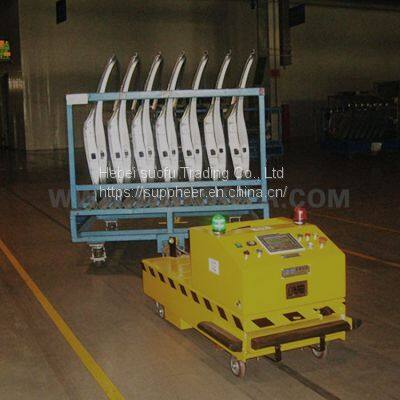

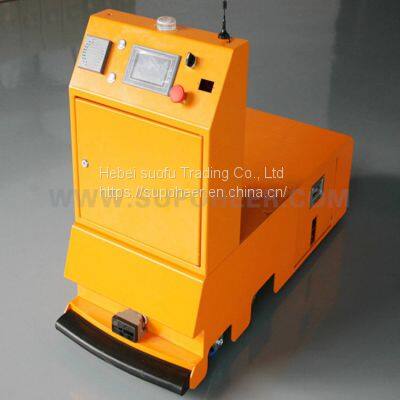

The one-way traction AGV can replace the artificially driven electric tractor with a traction capacity of more than 5T. The height of the car body is suitable for manual operation, and the road has strong adaptability. It can be used even if there is a slope, a groove or a water pavement.
automatic guided transport features
1. One-way operation, can tow 500KG~5000KG cargo
2. Magnetic navigation, high cost performance, accurate positioning and high reliability
3. Equipped with magnetic navigation landmarks for site docking
4. Four safety protection (laser safety protection; mechanical anti-collision device; sound and light alarm; emergency stop button)
Product Technical Parameters
Dimensions (mm) | 1200*560*700 |
Navigation type | Magnetic navigation |
Drive mode | Differential wheel / steering wheel |
Direction of travel | Forward/Turn/Back |
specified load (kgs) | 500~5000 |
Running speed (m/mins) | 6~48 |
Power supply | Lithium battery / lead acid battery |
charging mode | Automatic online/manual offline |
Turning radius(mm) | R800 |
Guidance accuracy(mm) | ±10 |
Stop accuracy(mm) | ±10 |
Operation method | Automatic/manual remote control |
SUOFU is a professional foreign trade company engaged in import and export trade. The company's main business scope includes handheld laser welding machine, automated guided vehicle AGV, etc.
If you want to know more, please click the link below.
/medium-agv-tractor/one-way-traction-agv.html
