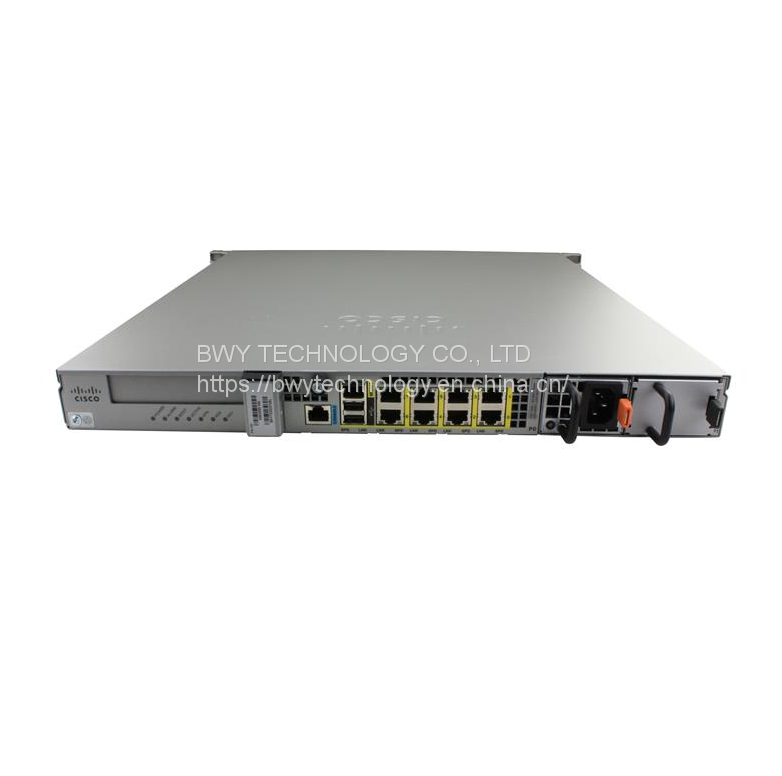

ASA5555-FPWR-K9 Overview
The ASA5555-FPWR-K9 is the ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD.
- ASA5555-FPWR-K9 Specification
ASA5555-FPWR-K9 Specification Product Number
ASA5555-FPWR-K9
Product Description
ASA 5555-X with FirePOWER Services, 8GE data, AC, 3DES/AES, 2 SSD
Throughput:
Application Control (AVC)
1,750 Mbps
Throughput:
Application Control (AVC) and IPS
1,250 Mbps
Maximum concurrent sessions
1,000,000
Maximum New Connections per second
50,000
Supported applications
More than 3,000
URL categories
80+
Number of URLs categorized
More than 280 million
Centralized configuration, logging, monitoring, and reporting
Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management
ASDM
Stateful inspection throughput (maximum)
4 Gbps
Stateful inspection throughput (multiprotocol)
2 Gbps
Triple Data Encryption Standard/
Advanced Encryption Standard (3DES/AES) VPN throughput700 Mbps
Users/nodes
Unlimited
IPsec site-to-site VPN peers
5000
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections
5000
Virtual interfaces (VLANs)
500
Security contexts(included; maximum)
2; 100
High availability
Active/Active and Active/Standby
Integrated Wireless Access Point
(See Cisco AP 702 datasheet for WiFi technical details)
N/A
Expansion slot
1 interface card
User-accessible Flash slot
0
USB 2.0 ports
2
Integrated I/O
8 GE copper
Expansion I/O
6 GE copper or
6 GE SFP
Dedicated management port
Yes (1 GE)
Serial ports
1 RJ-45 console
Solid-state drive
2 slots, RAID 1
120 GB MLC SED
Memory
16 GB
System flash
8 GB
System bus
Multibus architecture
Temperature
23 to 104°F (-5 to 40°C)
Relative humidity
90 percent
Altitude
Designed and tested for 0 to 10,000 ft (3050 m)
Acoustic
noise67.9 dBA max
Temperature
-13 to 158ºF (-25 to 70ºC)
Relative humidity
10 to 90 percent
Altitude
Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage
100 to 240 VAC
AC normal line voltage
100 to 240 VAC
AC current
5A, 100 to 120V
2.5A, 200 to 240V
AC frequency
50/60 Hz
Dual-power supplies
Yes
DC domestic line voltage
-40.5 to 56 VDC
(-48 VDC nominal)
DC international line voltage
-55 to -72 VDC
(-60 VDC nominal)
DC current
15A (maximum input)
Steady state
90W
Maximum
peak134W
Maximum
heat dissipation458 Btu/hr
Form factor
1RU, 19-in. rack-mountable
Dimensions(H x W x D)
1.67 x 16.7 x 19.1 in.(4.24 x 42.9 x 48.4 cm)
Weight (with AC power supply)
16.82 lb (7.63 kg) with single power supply
18.86 lb (8.61 kg) with dual power supply
