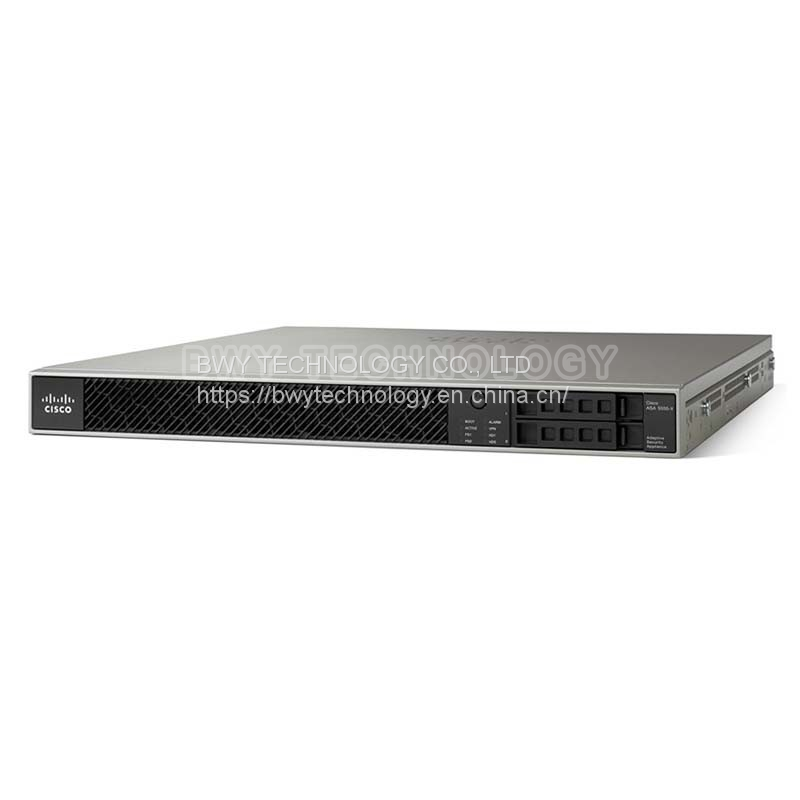

ASA5512-K9 Overview
Cisco ASA 5512-K9 delivers superior performance with up to 1 Gbps stateful inspection throughput, 250 IPsec VPN peers, 100,000 concurrent connections and 1 expansion slot makes it ideally suited for the small, mid-size enterprises or branch offices while delivering enterprise-strength security. ASA 5512-K9 needs Security PLus license to support Active/Active and Active/Standby.
ASA5512-K9 Specification
| ASA5512-K9 Specifications | |
Feature | Cisco ASA 5512-X; Security Plus |
Stateful Inspection Throughput (Maximum) | 1 Gbps |
Stateful Inspection Throughput (Multiprotocol) | 500 Mbps |
IPS Throughput | 250 Mbps(Extra hardware not required) |
Next-Generation Throughput(Multiprotocol) | 200 Mbps |
3DES/AES VPN Throughput | 200 Mbps |
Users/Nodes | Unlimited |
IPsec VPN Peers | 250 |
Cisco Cloud Web Security Users | 100 |
Premium AnyConnect VPN Peers(Included/Maximum) | 2/250 |
Concurrent Connections | 100,000 |
New Connections/Second | 10,000 |
Virtual Interfaces (VLANs) | 50; 100 |
Security Contexts (Included/Maximum) | 0,0; 2,5 |
High Availability | Not supported; Active/Active and Active/Standby |
Expansion Slot | 1 interface card |
User-Accessible Flash Slot | No |
USB 2.0 Ports | 2 |
Integrated I/O | 6 GE Copper |
Expansion I/O | 6 GE Copper or 6 GE SFP |
Serial Ports | 1 RJ-45 console |
Solid State Drive | 1 slot, 120 GB MLC SED |
Memory | 4 GB |
Minimum System Flash | 4 GB |
System Bus | Multibus architecture |
Temperature | 23 to 104°F (-5 to 40°C) |
Relative Humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572m) |
Shock | 70G, 4.22 m/sec |
Vibration | 0.41 Grms2 (3 to 500 Hz) random input |
Acoustic Noise | 64.2 dBa max |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative Humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4570m) |
Shock | 70G, 4.22 m/sec |
Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
AC Range Line Voltage | 100 to 240 VAC |
AC Normal Line Voltage | 100 to 240 VAC |
AC Current | 4.85A |
AC Frequency | 50/60 Hz |
Dual-Power Supplies | None |
DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
DC International Line Voltage | -55 to -72 VDC (-60 VDC nominal) |
DC Current | 15A (maximum input) |
Steady State | 51W |
Maximum Peak | 56W |
Maximum Heat Dissipation | 192 BTU/hr |
Form Factor | 1 RU, 19-in. rack-mountable |
Dimensions (H x W x D) | 1.67 x 16.7 x 15.6 In (4.24 x 42.9 x 39.5 cm) |
Weight (with AC Power Supply) | 13.39 lb (6.07 kg) |
Safety | IEC 60950-1: 2005, 2nd |
Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; |
Industry Certifications | In process |
