Industrial Wastewater Treatment Equipment MBR Membrane Bioreactor

MBR Membrane Bio-reactor

The membrane bio-reactor process (MBR process) is the new type waste water treatment technology, which combines membrane separation technology with biotechnology. It uses membrane separation equipment to intercept activated sludge and macromolecular organic matter in biochemical reaction tank and save secondary sedimentation tank. As a result, the concentration of activated sludge is greatly increased. The hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled separately, while the refractory substances are continuously reacted and degraded in the reactor. Therefore, membrane-bioreactor technology greatly strengthens the function of bioreactor through membrane separation technology. Compared with traditional biological treatment method, it has the advantages of high biochemical efficiency, strong resistance to load impact, stable effluent quality, small area, long sludge discharge period and easy to realize automatic control. It is the most advanced one at present. One of the new technologies for waste water treatment. Since the 1990s, it has been widely studied and applied in Japan, France, Canada and other countries.

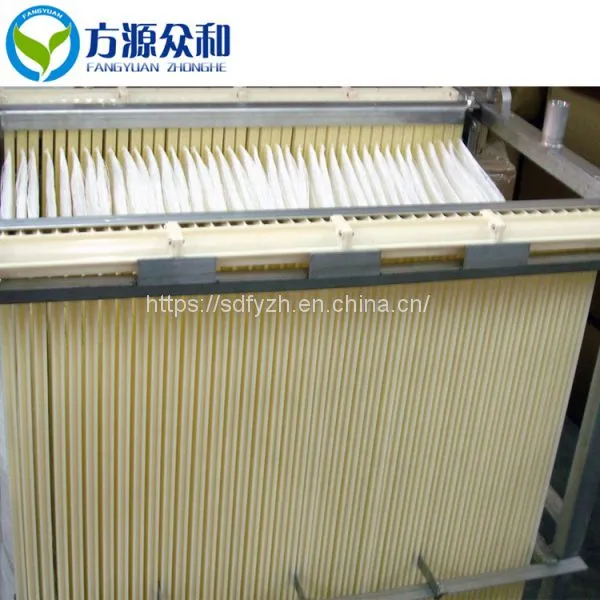

The main performance indicators of the latest generation of CSMBR series membrane modules with high pollution resistance and no backwashing are as follows:

Membrane Material: Imported PP or UVDF+Imported Composites (High Antipollution)

Membrane diameter: 350 um

Membrane wall thickness: 40-50 um

Membrane aperture: 0.1 to. 02 um

Permeability: > 7.5 *10(cm_/cm_s.cmHg)

Longitudinal strength: 120 MPa

Porosity: 40-50%

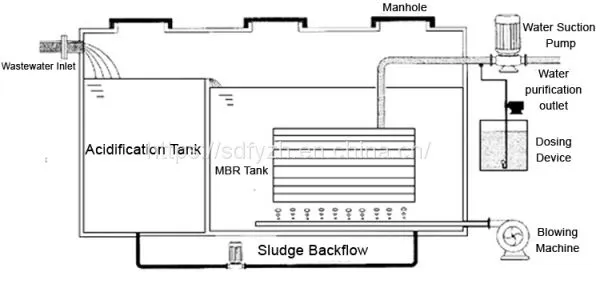

MBR Series Intelligent Integrated Membrane Bio-reactor is a set of integrated water treatment equipment which combines membrane separation technology with biological treatment technology and intelligent control technology. It overcomes the disadvantages of traditional sewage treatment process, such as long process, large area, complex operation and management, and has compact structure and beautiful appearance. It has the advantages of small occupation area, low operation cost, stable and reliable, high automation, easy maintenance and operation, etc. Especially the effluent quality is better than the standard of reclaimed water quality. It is suitable for medium and small scale wastewater treatment and reuse.

Processing Capacity: 1-500 m3/d

Scope of application:

Industrial and mining enterprises:

1. Food wastewater treatment

2. Treatment of high concentration organic wastewater such as pharmacy, sugar making, alcohol, leather, paper making, printing and dyeing. The effluent of this kind of wastewater can not meet the requirements of discharge standards by conventional treatment methods, but A2-MBR can be effectively treated with its technical advantages, and the effluent can even meet the reuse standards.

3. - - Animal husbandry sewage treatment

4. - - The original sewage treatment stations of all kinds of enterprises have been revamped to meet the standards, water capacity increase, reuse and so on.

Civil buildings:

1. - - Sewage treatment or reclaimed water reuse system for office buildings, residential districts, hospitals, hotels, schools, stadiums and other civil buildings.

2. Domestic sewage treatment in areas without drainage network, such as tourist attractions, vacation areas, villas, hotels, small residents, stations, toll stations, temporary construction sites, etc.

3. Washing garage, laundry recycling treatment, etc.

Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, sewage treatment equipment,such as MBR Membrane Bio-reactor and crescent type tissue paper machine, with high technical content, it has reached the domestic advanced level in the same industry.

Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The MBR Membrane Bio-reactor we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.

With the rapid development of the national economy and the requirement of the sustainable development and harmonious development, environmental protection is playing a more and more important role. China's environmental protection industry is facing unprecedented opportunities for development. To improve the living environment of mankind and write a brilliant chapter of Chinese environmental protection industry, we will make unremitting efforts and have succeeded in carrying out an assignment. Our company warmly welcomes friends and business colleagues all over the world to come and guide us in creating a better future for environmental protection.

Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for 20 years' experience

Q2. How to proceed an order for the MBR Membrane Bio-reactor from factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q4. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be finished before the guarantee date.

Q5: Do you offer guarantee for the MBR Membrane Bio-reactor?
A: Yes, under the right condition , we offer different time warranty for our products.

Q6. How to pack the MBR Membrane Bio-reactor?
A: Standard oversea packages or according to customer's requirement will be used.
If you have special package requirements, we will pack as required, but the fees will be paid by
customers.

Q7. How to install after the MBR Membrane Bio-reactor arriving destination?
A: We will provide detailed drawings to you. If it is necessary, we will send technical engineers to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
