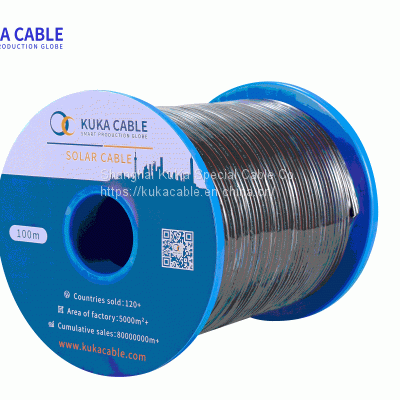

Help CenterExport Over 100 Million Meters of Photovoltaic Cables，KUKA
Related Products
-
Lawn Mower Cable Conforming to TUVUS$ 0.3 - 0.6MOQ: 100 Meters -
TUV Single Core 4mm2 6mm2 Solar Cable PV Wires For Solar PV SystemUS$ 0.3 - 0.6MOQ: 1 Meter
-
China Manufacturer Tinned Coper Conductor 4mm Solar Cable ac Cable for pv PanelUS$ 0.3 - 0.6MOQ: 1 Meter
-
TUV Certificate 1000V 1500V 4mm2 6mm2 10mm2 Xlpe Sheath dc pv Solar CableUS$ 0.3 - 0.6MOQ: 1 Meter
-
Best Price Tuv Approved 4mm2 pv Solar Cable Pv1-fUS$ 0.3 - 0.6MOQ: 1 Meter

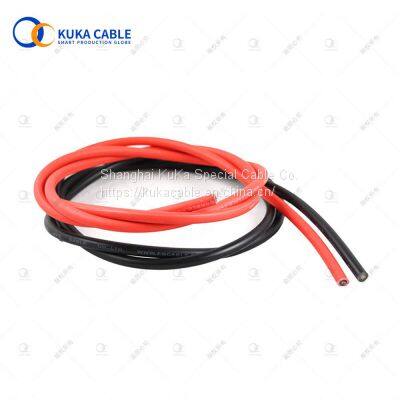

Basic information：
Item No.: BY1-C0200
Size:6.0 mm2
Conductor:84/0.285
Insulation dia.(mm):4.2
Insulation color: Black
Nominal Jacket dia. (mm):6.5
Jacket color: Red
Rated current at 60℃ A:41
1.Application
FOLLOWRAY SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
2. Cable design
(1) Conductor: fine wire strands of tinned copper wires, according to IEC 60228, Class 5
(2) Insulation: halogen-free PE,electron beam cross-linked
Colors: black
(3) Outer jacket: halogen-free and flame retardant PE, electron beam cross-linked
resistance against water, UV resistant
Jacket color: black, red
3.Temperature range
Max, the temperature at conductor -40℃ up to +120℃
Temperature range -40℃ up to +90℃(min. 25 years)
4. Electrical characteristics
Nominal voltage U0/U AC 600/1000V, DC 1500V
Mat.DC voltage 1800V(conductor-conductor,
the non-earthed system, circuit not under load)
AC-test-voltage 6.5KV
Min. Surface resistance of sheath 109Ώ
Other tests according to EN 50395
5.Mechanical Characteristics
Min. bending radius 5 x cable diameter
Tensile strength and elongation according to EN 60811-1-1
Cold bending according to EN 60811-1-4
Thermal endurance properties according to EN60216-2
6. Environmental characteristics
Halogen-free according to TUV 2PFG 1169/08.2007 Annex B
Ozone resistance according to EN 50396
UV resistance according to HD 605/A1
Flame characteristics according to IEC 60332-1-2
7.Marking
TÜV 2 PFG 1169 PV1-F 1×6.0 mm2 NINGBO FOLLOW RAY SPECIAL CABLE CO., LTD.
8.Industry Standards
TUV 2pfg 1169/08.2007
