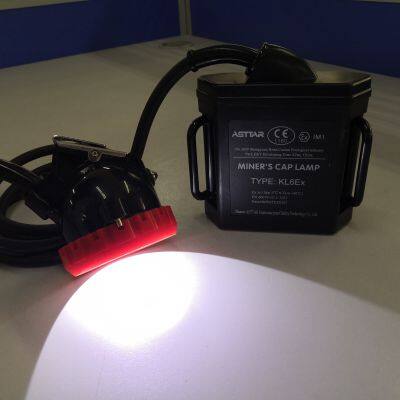

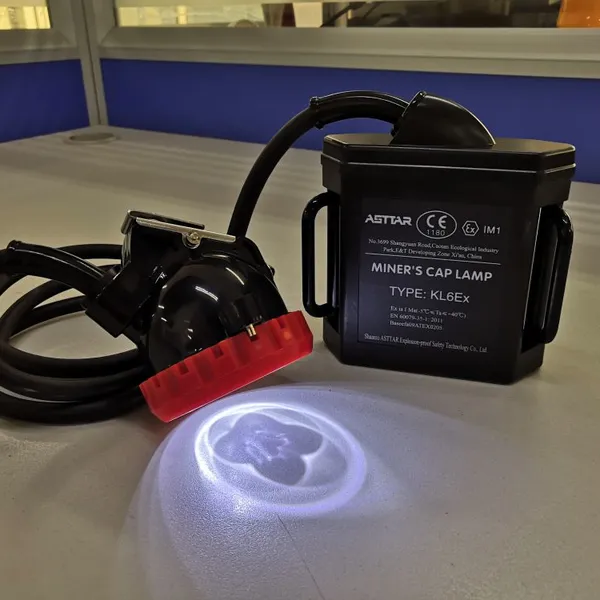

KL6Ex ATEX IP65 Rechargeable LED Corded Mining Cap Light
KL6Ex ATEX certified rechargeable LED corded miners cap lamp
Product Description
• ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012, EN 60079-11: 2012, EN 60079-35-1: 2011, EN 50303:2000
• This lamp is specially designed for use in underground mining operations, tunneling.
• Adopts 6000mAh capacity li-ion batteries, the batteries are sealed in a high impact-resist and water-resistant ABS enclosure, maintenance for free.
• Adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 17 hours.

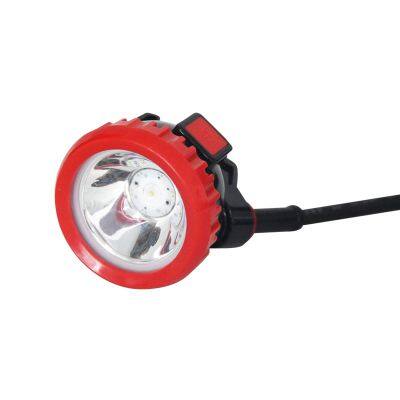

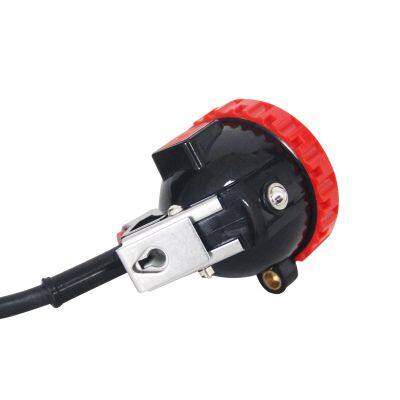

• The headpiece and battery box are connected by a cable with length of 1.45 meters, the head piece with a stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.
Main specification
Item | KL6Ex | ||
Battery style | Li-ion | ||
Rated capacity | 6Ah | ||
Rated voltage | 3.7V | ||
Lighting time | >16h | ||
Main light source | Working current | 0.28 A | |
Max luminance (1m apart from the lamp) | When lighting begins | >7000lx | |
After lighting for 11h | >6000lx | ||
Sub-light source rated power | 0.2W | ||
Life of cap lamp | 2 years | ||
Charging Voltage | (6-8)V | ||
Charging time | ≤10h | ||
Explosion protection | Ex ia I Ma | ||
Protection grade | IP65 | ||
Dimensions | Headpiece: Ø71x75 mm, Battery pack: (120x130x105)mm | ||
Weight | 0.63kg | ||
Chargers
Packaging
Our service
Company Information
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. CE approved chemical oxygen self-rescuer
2. Compressed oxygen self-rescuer
3. Filter self-rescuer
4. ATEX approved LED miner's cap lamp
5. Methane alarm LED miner's cap lamp
6. LED Flame-proof laneway lamp
7. Mechanical and electronic anemometer
8. Isolated positive pressure oxygen breathing apparatus
9. Automatic resuscitator
10. Optical interference type methane detector
11. Portable multi-parameter gas detector
12. Infrared thermometer
13. Laser distance meter
14. Laser guider
