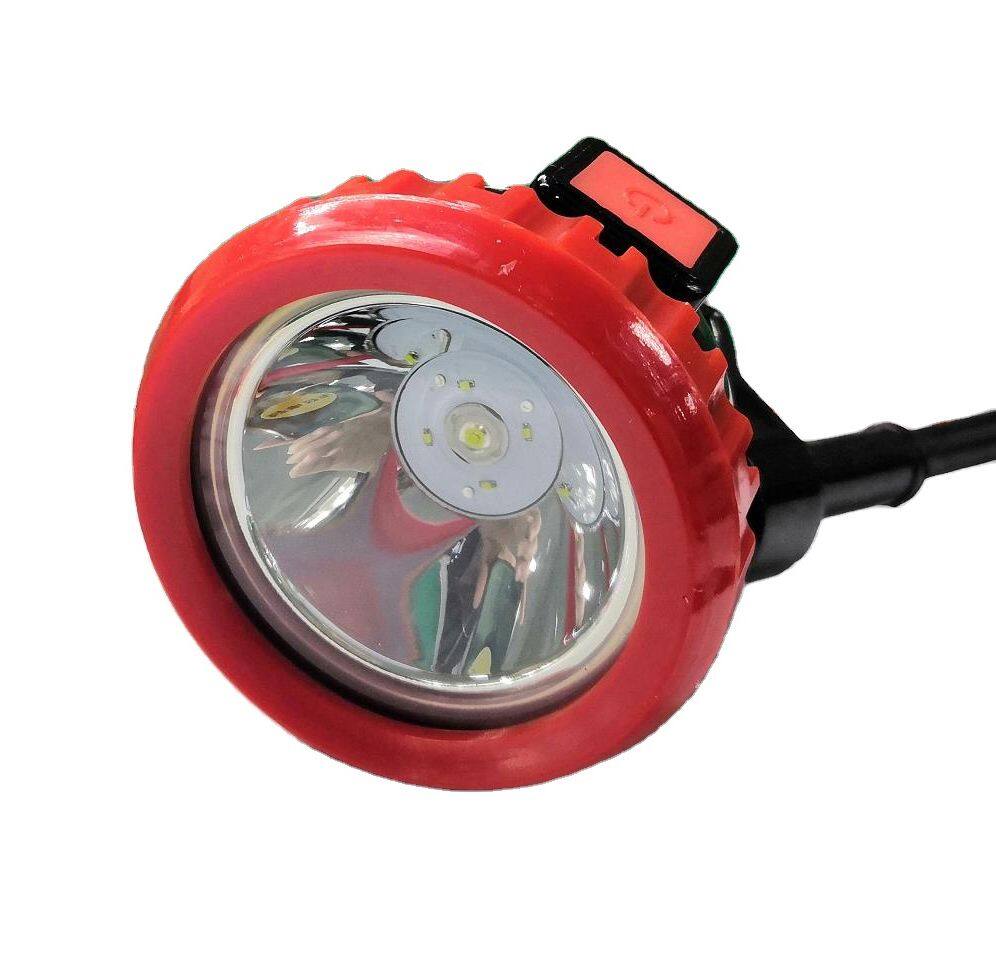

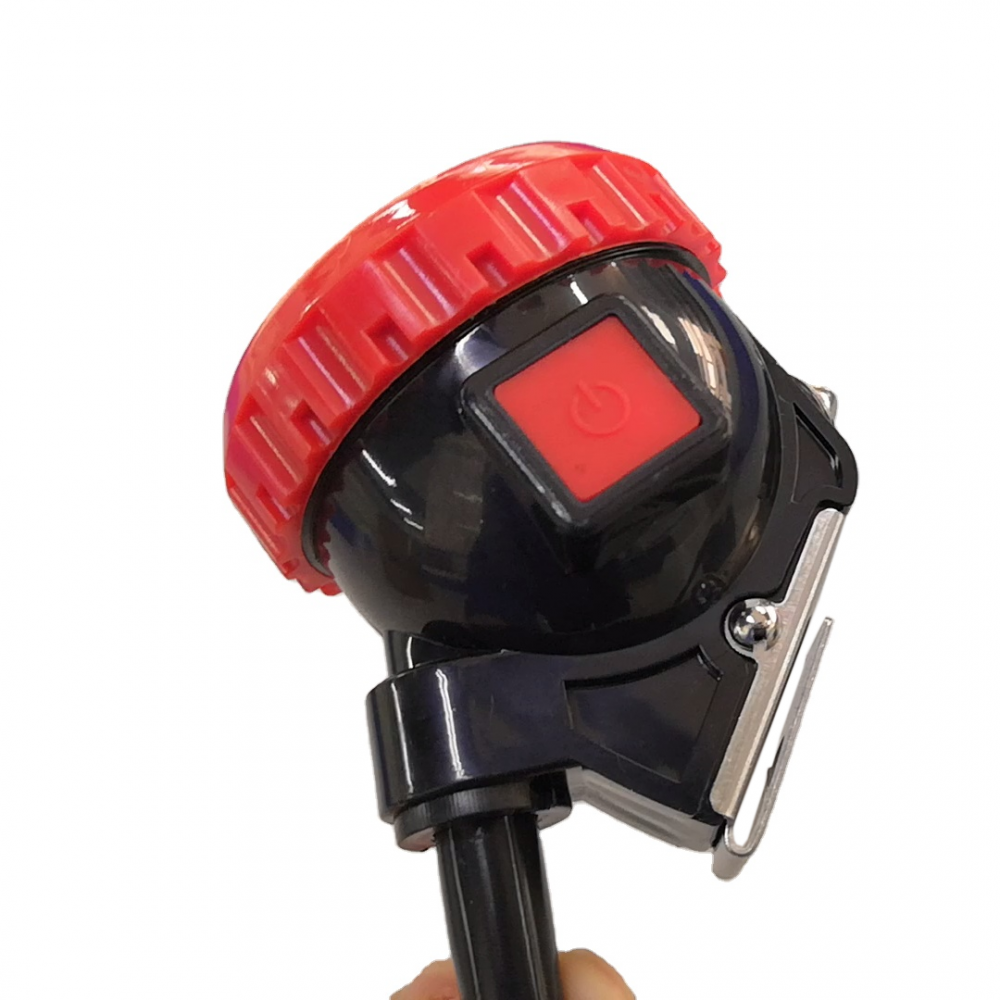

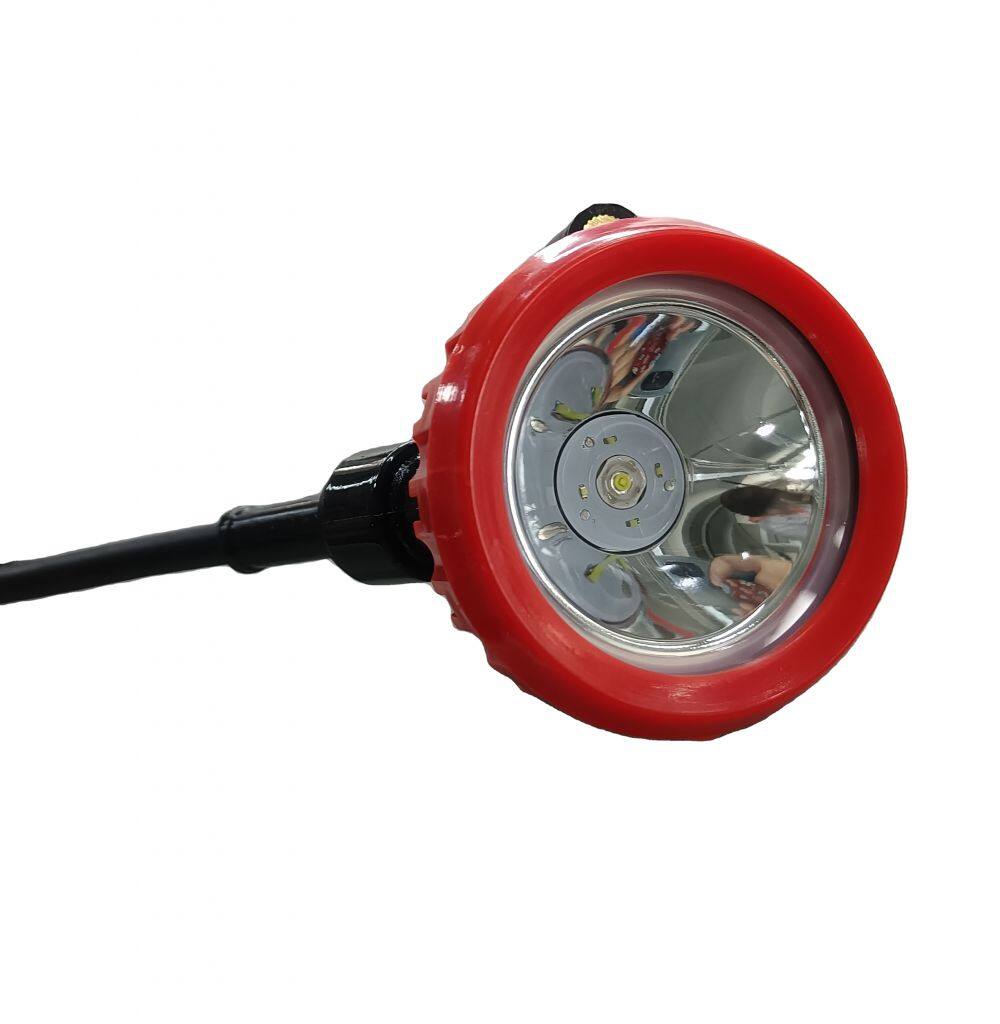

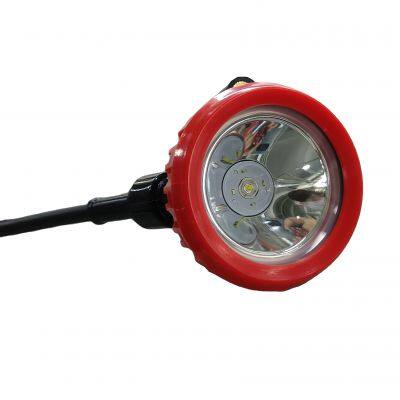

KL6Ex ATEX certified LED Miner’s Cap Lamp
• ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012, EN 60079-11: 2012, EN 60079-35-1: 2011, EN 50303:2000
• This lamp is specially designed for use in underground mining operations, tunneling.
• Adopts 6000mAh capacity li-ion batteries, the batteries are sealed in a high impact-resist and water-resistant ABS enclosure, maintenance for free.
• Adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 16 hours.

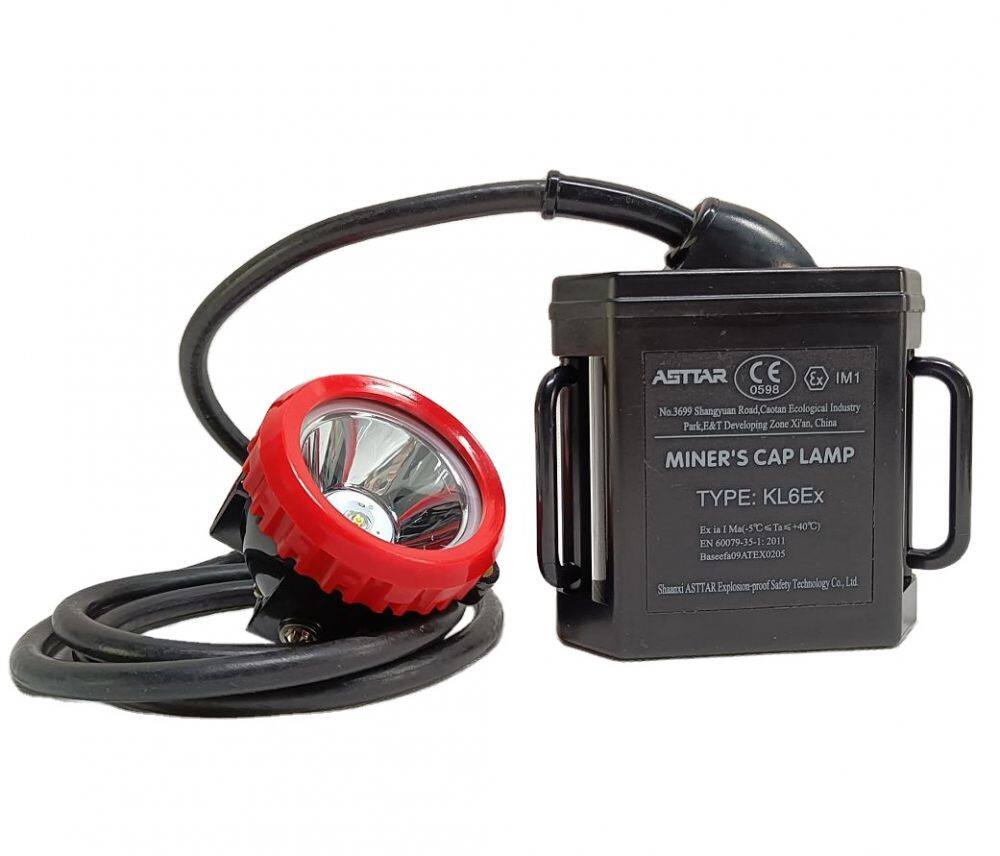

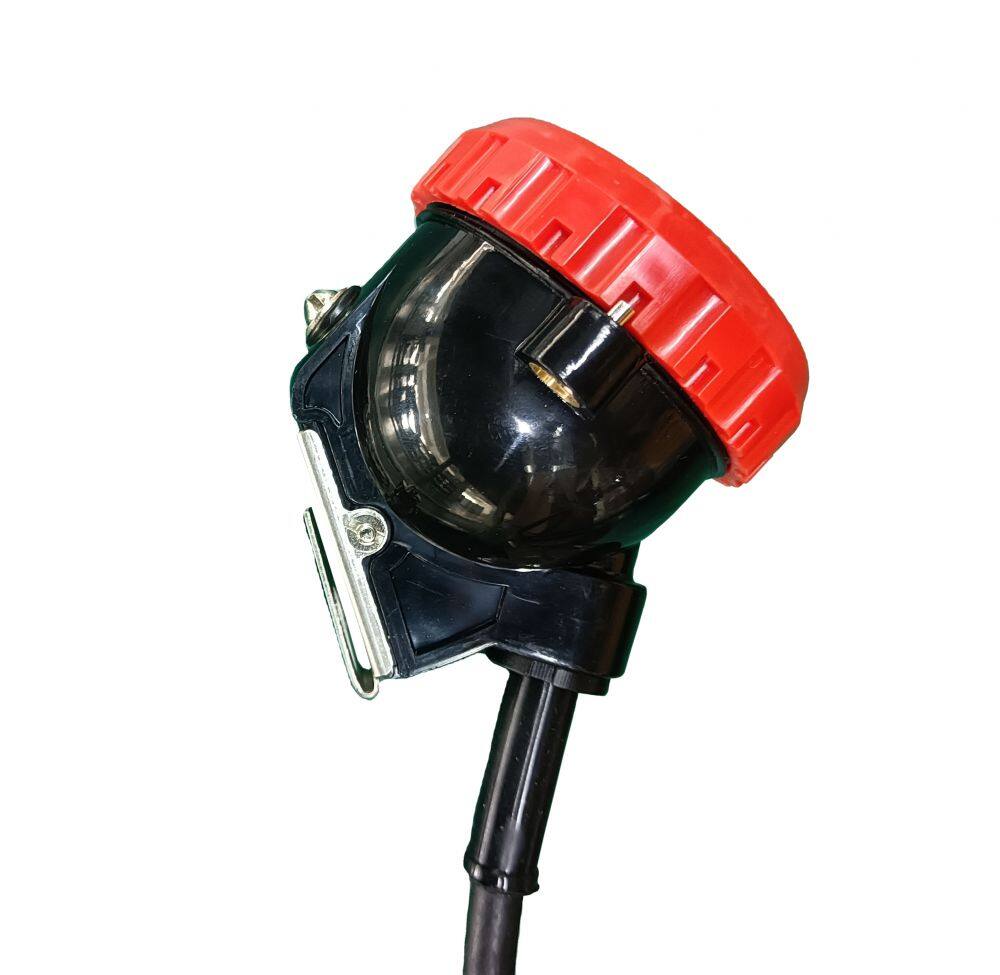

• The headpiece and battery box are connected by a cable with length of 1.45 meters, the head piece with a stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.
Main specification
KL6Ex |
|||
Battery style |
Li-ion |
||
Rated capacity |
6Ah |
||
Rated voltage |
3.7V |
||
Lighting time |
>16h |
||
Main light source |
Working current |
0.28 A |
|
|
Max luminance (1m apart from the lamp) |
When lighting begins |
>7000lx |
|
After lighting for 11h |
>6000lx |
||
Sub-light source rated power |
0.2W |
||
Life of cap lamp |
2 years |
||
Charging Voltage |
(6-8)V |
||
Charging time |
≤10h |
||
Explosion protection |
Ex ia I Ma |
||
Protection grade |
IP65 |
||
Dimensions of battery case |
Headpiece: Ø71x75 mm, Battery pack: (120x130x105)mm |
||
Weight |
0.63kg |
||
