Help CenterCustom Made HYRT950 Larger Nylon Cage Rotary Table Bearings for Vertical and Horizontal Boring Machine
Related Products
-
Custom Made ZRT950 Larger Nylon Cage Rotary Table Bearings for Industrial Robot Joints and RotationUS$ 100 - 15000MOQ: 1 Piece -
YDRT150 High Precision 3-row Cylindrical Roller Bearings RT for Combined Axial Radial Loads Machine Tool BearingsUS$ 100 - 15000MOQ: 1 Piece
-
Turntable Bearings Suppliers Custom Made Bearing HYRT850US$ 100 - 15000MOQ: 1 Piece
-
Turntable Bearing Suppliers Precision Cylindrical Roller Bearings For NC Rotary Tables YRT1030US$ 100 - 15000MOQ: 1 Piece
-
Rotary Table Thin Bearings YRT50US$ 100 - 15000MOQ: 1 Piece
YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

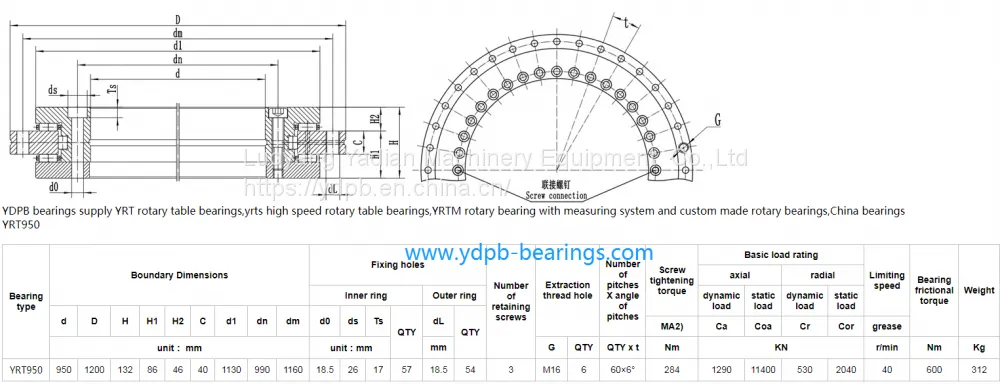

YRT950 Parameters
Custom made items
1.Cage materials: Brass/ nylon
2. Dimension
3. Ring materials
4. Precision:P4 P2
5.Rotate speed: standard / High speed
Crossed roller bearings many in stock
