Product Spotlights

1. Three-row roller combined structure, integrate axial load, radial load and positioning in one unit
2.Compact integrated structure, save installation space for machine tools
3.Built-in preload design, easy installation, no extra pre-tension adjustment needed
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Bearing Steel
Separated:
Unseparated
Rolling Body:
Roller Bearings
Contact Supplier Request Quote Chat Now
Luoyang Yadian Machinery Equipment Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Bearing Steel
Separated Unseparated
Rolling Body Roller Bearings
The Number of Rows Multi-column
Outer Dimension Other, ID 50mm~1200mm
Spherical Non-Aligning Bearings
Load Direction Other, Axial Radial and Tilting Moment
Transport Package Carton/wooden cases
Specification 395x525x65
Trademark YDPB
Origin China

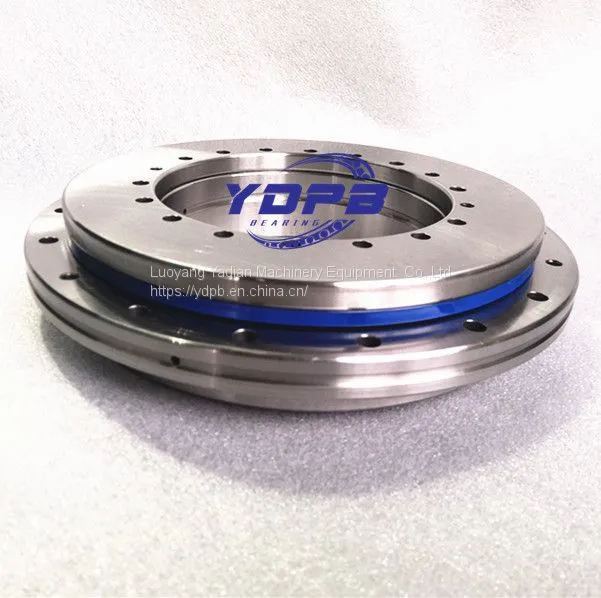

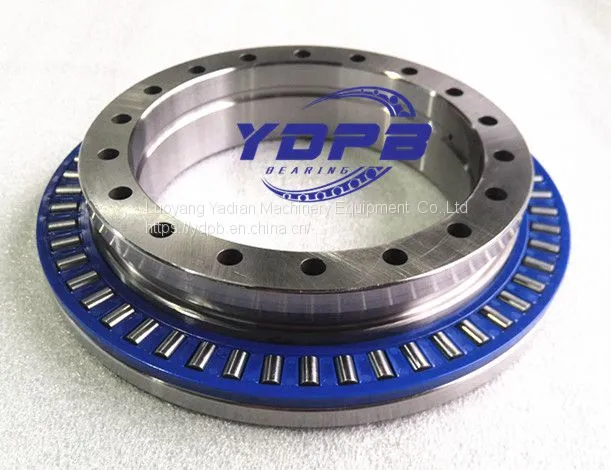

YRT bearings (rotary table bearings) axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.

YRT bearing precsion include P5  P4  P2 and VSP

We also have YRTS(High speed rotary table bearings),YRTM( with angle measuring systems) and dimension custom made.

Applications:

•Precision machine tools

•precision Turntable, NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

•Indexing plate of other precision machines etc

Main Models

YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.



Main parameters

Bearing

Model number

 Boundary dimensions Basic load rating(KN)

Limiting

Speed

(Grease)

Bearing frictional torque

(Nm)

Weight

(kg)

Axial/Radial

Runout

(μm)









Axial load Radial load














d D H H1 C D1 J J1 dynamic static dynamic static




unit: mm Ｃａ Coa Cr Cor r/min










YRT50 50 126 30 20 10 105 63 116 38 158 28.5 49.5 440 2.5 1.6 2
YRT80 80 146 35 23.35 12 130 92 138 56 255 42.5 100 530 3 2.4 3
YRT100 100 185 38 25 12 160 112 170 76.5 415 47.5 120 430 3 4.0 3
YRT120 120 210 40 26 12 184 135 195 102 540 52 143 340 7 5.3 3
YRT150 150 240 40 26 12 214 165 225 112 630 56 170 320 10 6.2 3
YRT180 180 280 43 29 15 244 194 260 118 710 69.5 200 280 12 7.7 4
YRT200 200 300 45 30 15 274 215 285 120 765 81.5 220 260 14 9.7 4
YRT260 260 385 55 36.5 18 345 280 365 160 1060 93 290 200 20 18.3 6
YRT325 325 450 60 40 20 415 342 430 275 1930 120 345 170 40 25 6
YRT395 395 525 65 42.5 20 486 415 505 300 2280 186 655 140 55 33 6
YRT460 460 600 70 46 22 560 482 580 355 2800 200 765 120 70 45 6
YRT580 580 750 90 60 30 700 610 720 490 4250 228 965 80 140 89 10
YRT650 650 870 122 78 34 800 680 830 1040 8000 490 1800 65 200 170 10
YRT850 850 1095 124 80.5 37 1018 890 1055 1000 8650 455 1730 50 300 253 12
YRT950 950 1200 132 86 40 1130 990 1160 1290 11400 530 2040 40 600 312 12
YRT1030 1030 1300 145 92.5 40 1215 1075 1255 1380 12000 620 2650 39 800 375 15


Product Tags: YRT395 rotary table bearing , YRT395 bearing , YRT395S rotary table bearing
