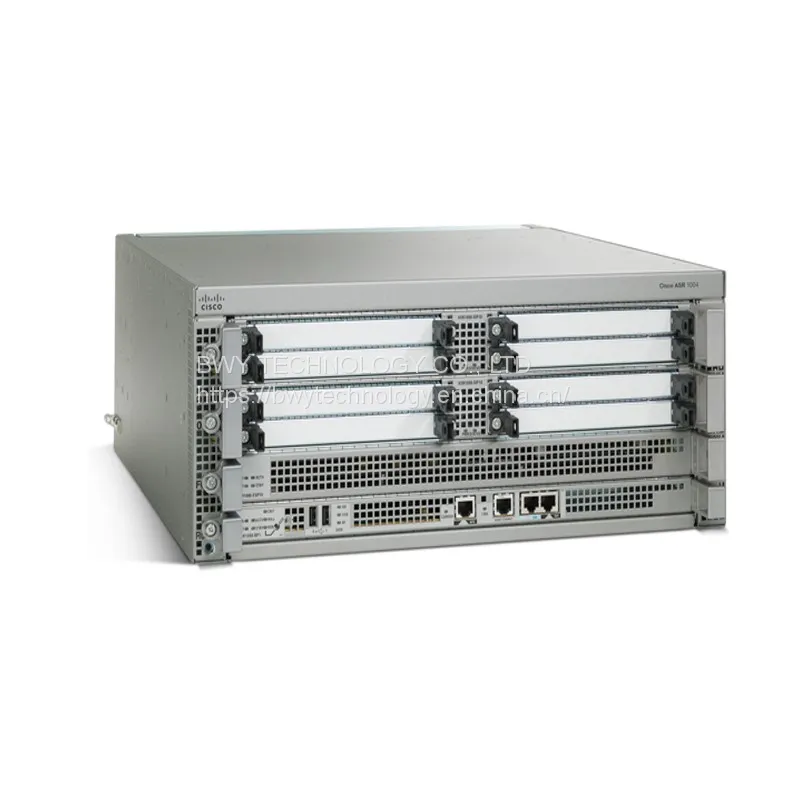

Brand New Cisco Original Router ASR1004 Chassis Network Router ASR1004

This product is Cisco ASR 1004 Chassis, Dual P/S. Before the router operates, necessary components must be installed. About its configuration

Cisco ASR 1004 Router system consists of the following system level components:

· Two Cisco ASR 1000 Series SPA Interface Processor

· One Cisco ASR 1000 Series Embedded Services Processor

· One Cisco ASR 1000 Series Route Processor

· Dual (redundant) AC and DC power supplies

This ASR1004 is similar with the ASR1004=.  The ASR1004= is a spare one.

• ASR1004 Specification

• ASR1004 Specifications
  Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details.	Height: 7 in. (177.8 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ●  68.7 lb (31.16 kg) (with dual AC power supply, SPA blank covers, Cisco ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], Cisco ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
  Default memory	4-GB DRAM RP1 8-GB DRAM RP2
  Number of SIPs or Ethernet line cards supported	2
  Shared port adapters	8 SPA slots
  Ethernet port adapters	N/A
  Cisco ASR 1000 Series ESP	1 ESP slot
  Route processor	1 route-processor slot
  Redundancy	Software: Yes
  Built-in Gigabit Ethernet ports	0
  Built-in 10 Gigabit Ethernet port	No
  Network interface module	No
  Cisco ASR 1000 Series	Cisco ASR 1004
  ESP support	Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), and Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40)
  ESP bandwidth	10 to 40 Gbps
  ESP memory	Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2‑GB DRAM default; 2‑GB DRAM maximum Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4‑GB DRAM default; 4‑GB DRAM maximum
  SIPs and Ethernet line cards	Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Cards; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)
  Embedded hardware-based encryption	Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps and on Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)
  Minimum Cisco IOS XE Software release	Cisco IOS XE Software Release 2.1
  Rack-mounting	Yes: 19-inch
  Wall-mounting	No
  External USB flash memory	1-GB USB flash-memory support
  Redundant power supply	Same as for Cisco ASR 1002
  Power input	Same as for Cisco ASR 1002
  Power consumption	●  Maximum (DC): 1020W ●  Maximum (AC): 960W ●  Maximum (out): 765W
  Airflow	Front-to-back
  Operating temperature (nominal)	32 to 104°F (0 to 40°C)
  Operating temperature (short-term)	32 to 122°F (0 to 50°C)
  Operating humidity (nominal) (relative humidity)	10 to 85%
  Operating humidity (short-term)	5 to 90%
  Storage temperature	-40 to 150°F (-40 to 70°C)
  Storage humidity (relative humidity)	5 to 95%
  Operating altitude	-500 to 10,000 feet (152 to 3048 meters)
  Network Equipment Building Standards (NEBS)	GR-1089 and GR-63
  EMC standards	●  FCC 47 CFR Part 15 Class A ●  VCCI Class A ●  AS/NSZ Class A ●  ICES-003 Class A ●  EN55022/CISPR 22 Information Technology Equipment (Emissions) ●  EN55024/CISPR 24 Information Technology Equipment (Immunity) ●  EN300 386 Telecommunications Network Equipment ●  (EMC) ●  EN50082-1/EN61000-6-1 Generic Immunity Standard
  Safety Standard	UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1
