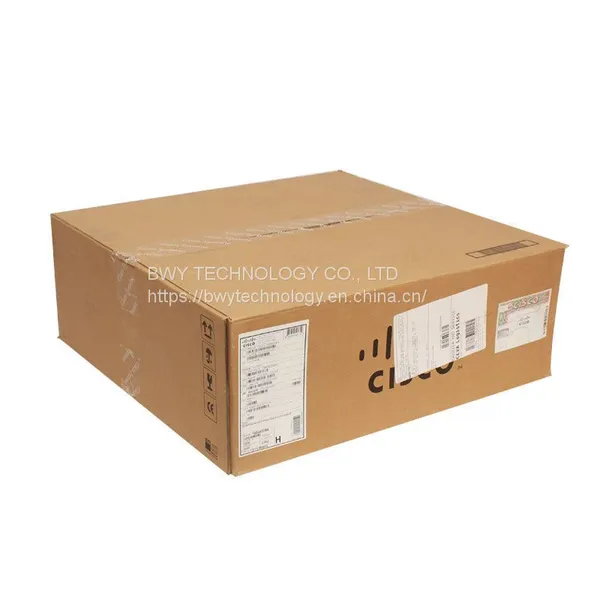

Help CenterOriginal Cisco Router 4331 Series 3 WAN Port Network Router ISR4331/K9
Related Products
-
ISR4331-V/K9 Cisco Gigabit Wired Router With Security Voice BundleNegotiableMOQ: 1 Unit -
Cisco New Original ISR4321/K9 ISR 4321 2GE 2NIM 4G FLASH 4G DRAM RouterNegotiableMOQ: 1 Unit
-
ISR4221-SEC/K9 Cisco ISR 4221 Router SEC Bundle With SEC LicenseNegotiableMOQ: 1 Unit
-
Brand New Sealed Cisco ISR 4431 Security Router ISR4431-SEC/K9 With Security/SEC LicenseNegotiableMOQ: 1 Unit
-
ISR4351/K9 Cisco Orignal Sealed ISR 4000 Series 4351 Integrated Services RouterNegotiableMOQ: 1 Unit
ISR4331/K9 Overview
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
ISR4331/K9 Specification
| Cisco ISR4331/K9 Specification | |
Aggregate Throughput |
100 Mbps to 300 Mbps |
Total onboard WAN or LAN 10/100/1000 ports |
3 |
RJ-45-based ports |
2 |
SFP-based ports |
2 |
Enhanced service-module slots |
1 |
Doublewide service-module slots |
0 |
NIM slots |
2 |
OIR (all I/O modules) |
Yes |
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
16 GB |
Default memory DDR3 ECC DRAM (data plane) |
NA |
Maximum memory DDR3 ECC DRAM (data plane) |
NA |
Default memory DDR3 ECC DRAM (control/services plane) |
NA |
Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
Default flash memory |
4 GB |
Maximum flash memory |
16 GB |
External USB 2.0 slots (type A) |
1 |
USB console port -type B mini (up to 115.2 kbps) |
1 |
Serial console port - RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
Power-supply options |
Internal: AC and PoE |
Redundant power supply |
N/A |
AC input voltage |
100 to 240 VAC autoranging |
AC input frequency |
47 to 63 Hz |
AC input current range, AC power supply (maximum) |
3 to 1.3A |
AC input surge current |
60 A peak and less than 5 Arms per half cycle |
Typical power (no modules) (watts) |
42 |
Maximum power with AC power supply (watts) |
250 |
Maximum power with PoE power supply (platform only) (watts) |
530 |
Maximum endpoint PoE power available from PoE power supply (watts) |
250 |
