Product summary:

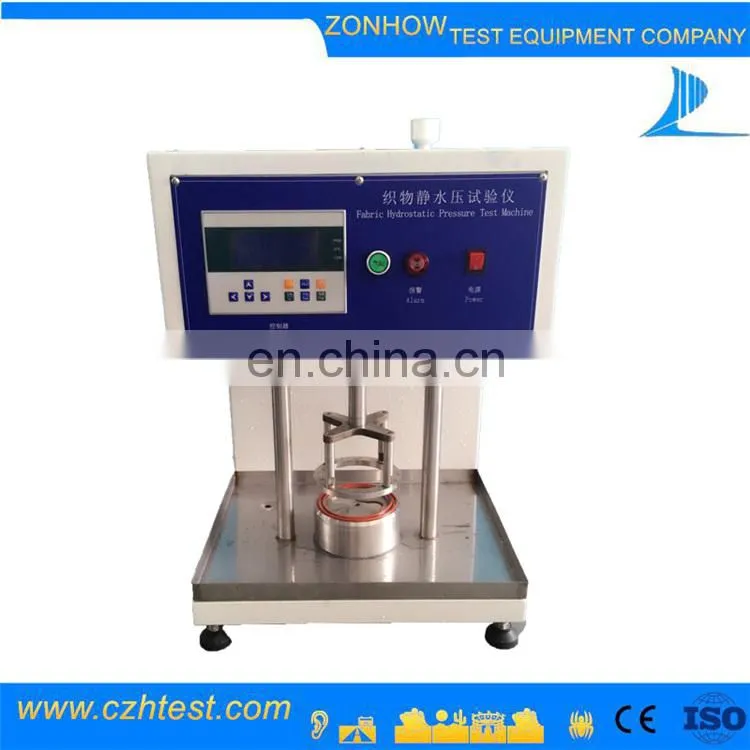

Fabric Hydrostatic Head Pressure Test Machine used to measure a variety of waterproof fabric resistance to water, such as canvas, tarps, tent cloth, sheet, rain clothing fabric and geotextile materials.
Main features:
1. This instrument computer control, with five test functions, Park arc nice shape.

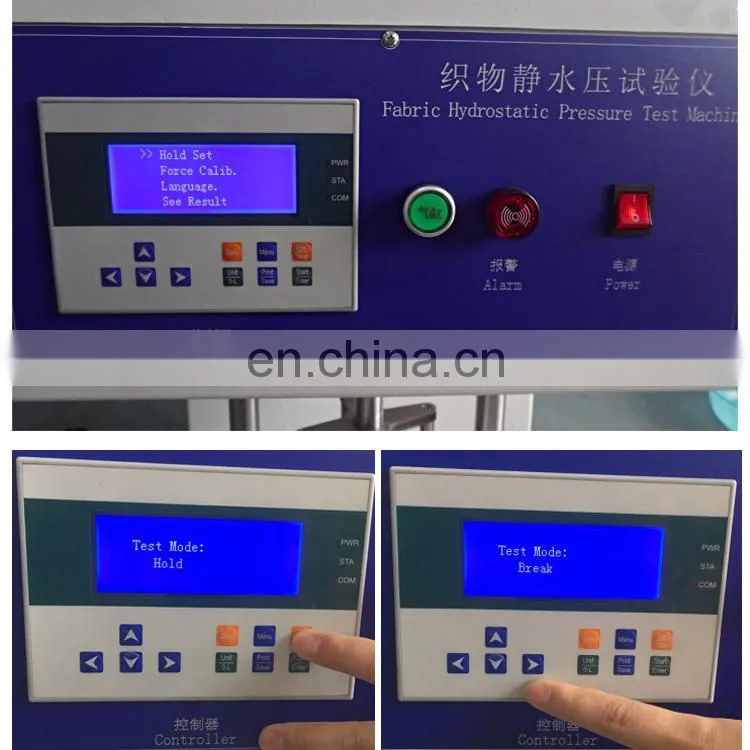

2. using widescreen LCD display, full Chinese menu, simple operation.
3. selection of high precision pressure sensor, accurate and stable measurement node, and reproducible.
4. with built-in water tank, and a button prompt and effective, fault self-test functions.
Applicable industry:
Fabric Hydrostatic Head Pressure Test Machine used for working closely fabrics, such as canvas, tarps, tent cloth, sheet, non-woven fabric and waterproof clothing fabrics, coated fabrics and other performance testing of water permeability.
Meet the criteria:
1, GB/T4744-1997 "Determination of resistance to water Textiles - Hydrostatic pressure test"
2, FZT01004-91 "coated fabrics Determination of resistance to water penetration - Hydrostatic pressure test"
3, ISO 811-1981 "Determination of Textiles hydrostatic testing water permeability".
Technical parameters:
| Model | Accuracy | Rising rate of water pressure | Area of specimen grip holder | Measuring range |
| -5 | 1pa | 1kpa~20kpa | 100cm² | 500pa~50kpa |
| -20 | 3pa | 1kpa~30kpa | 100cm² | 500pa~200kpa |
| -50 | 8pa | 1kpa~100kpa | 8cm² | 5kpa~500kpa |
Operating mode |
5 kinds |
||
Power supply |
AC220V±10%, 50Hz, 100W |
||
Size |
550*400*500mm |
||
Weight |
About 50kg |
||
More imagines:
Professional manufacture Fabric Hydrostatic Head Pressure Test Machine, Water Penetrate Testing Machine for textile for many years. Multiple model can be selected.
Fabric Hydrostatic Pressure Testing Equipment, Water Penetration TesterDigital Fabric Water Permeability Testing Machine, Fabric Hydrostatic Head TesterLaboratory fabric hydrostatic pressure tester water penetration testingFabric Hydrostatic Head Pressure Testing Machine
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
