Auto Mask Measurement Sensor Gun Range Monitor Scanner Infrared Thermometer
Summary:

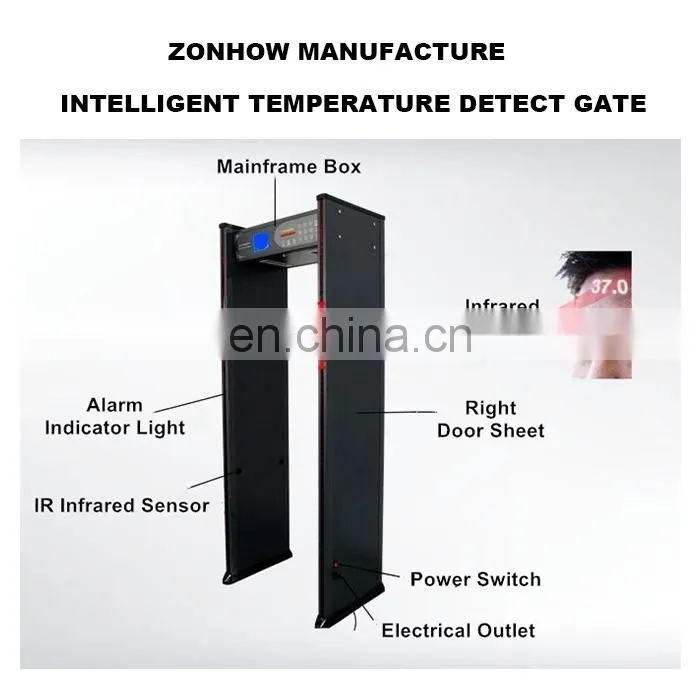

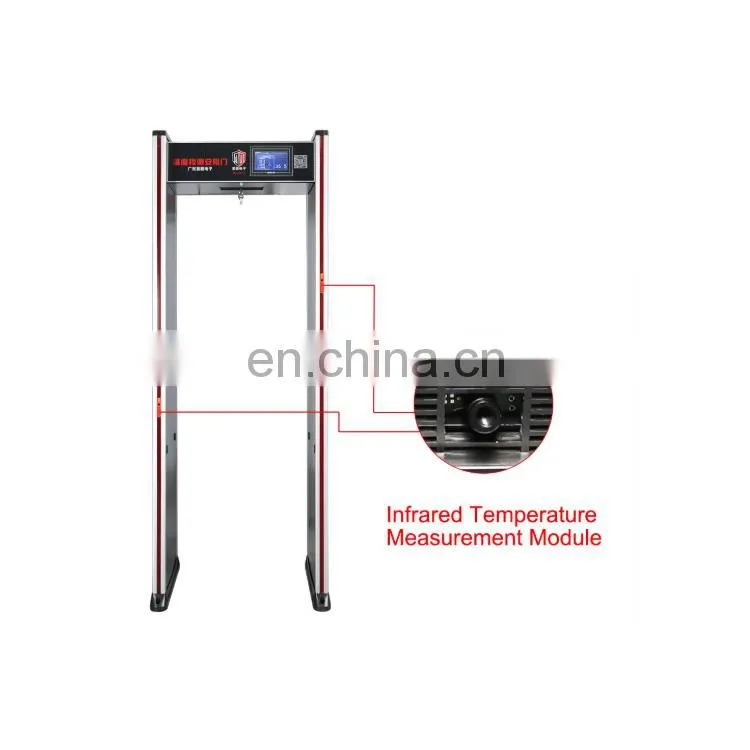

The Intelligent Temperature Detect Gate uses a high-precision infrared temperature sensor with a sensingdistance of 0.5-1 meters. It has high precision and high resolution and is immune to the environment andsunlight. The measurement error at room temperature is ± 0.5 ° C, and the resolution is 0.02 ° C. Theinitial temperature setting is 37.3 ° C (adjustable). The actual body temperature of the human body isdisplayed when the detection door is in operation. An alarm is issued when the temperature exceeds 37.3 ° C.
Non-contact initial screening for abnormal body temperature, fast detection speed, can prevent personnel contact with cross-infection.It has a 7-inch LCD screen, which can display the information of measuring temperature, alarm temperature, alarm times, number of people passing through, compensation parameters and so on.
Main Parameters:
| Items |
Quick Detect Infrared Human Body Temperature Security Door, Intelligent Temperature Detect Gate |
| Response time/ Probe time | 0.1S/0.5S-1.5S |
| Measure Range | 30℃~42℃ |
| Temperature Measure Accuracy | ±0.5℃ |
| Repeated accuracy | ±0.2℃ |
| Temperature sensor module | MELEXIS |
| Measure Position and Distance | Forehead, Wrist / 5~15cm |
| Display Screen | 7 inch colour touch screen |
| Frame Dimension | 2202*820*550mm (H*W*D) |
| Channel Dimension | 2000*700*550mm (H*W*D) |
| Power | 110~240V |

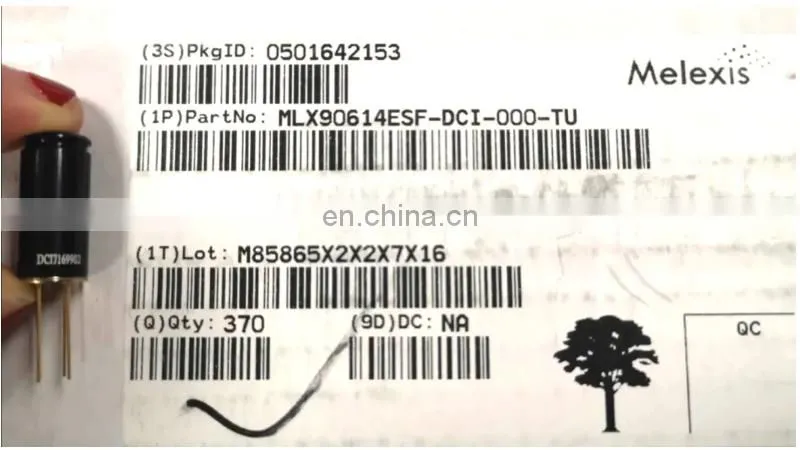

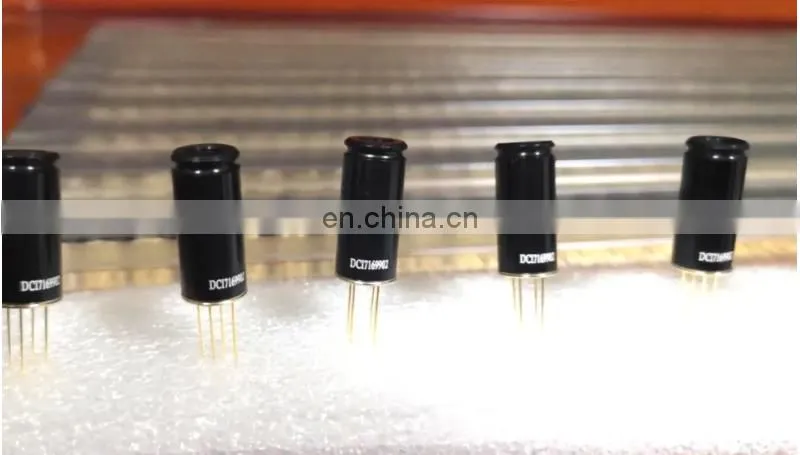

Original Imported MELEXIS Sensors
Features:
• Sensing probe: imported infrared probe;
• High pass rate: measure the palm, back of the hand, or forehead;
• Prevention of missed inspection: The product design conforms to ergonomics, which can ensure that the inspected person cannot escape the probe and avoid inspection; When a person passes, the temperature of the human body will be automatically broadcasted. When the humanbody reaches a fever temperature (37.3 ℃), it will automatically alarm;
• Detection accuracy: The detection result can be accurate to one digit after the decimal point.
• Temperature error atnormal room temperature ±0.1 ℃;
• System function: After the test is completed, there are reminder and voice readings, there is alarm and voice
readings when the temperature is high;
Auto Mask Measurement Sensor Gun Range Monitor Scanner Infrared Thermometer
Auto Mask Measurement Sensor Gun Range Monitor Scanner Infrared Thermometer
Auto Mask Measurement Sensor Gun Range Monitor Scanner Infrared Thermometer
Please Send your inquiry Details in the below for our quotation,Click "Send" Now !
