Product description

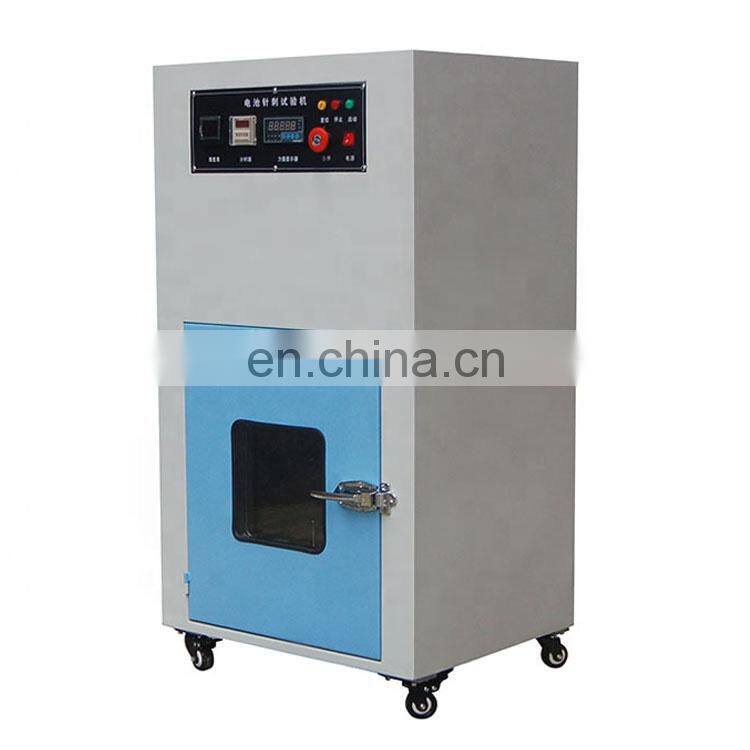

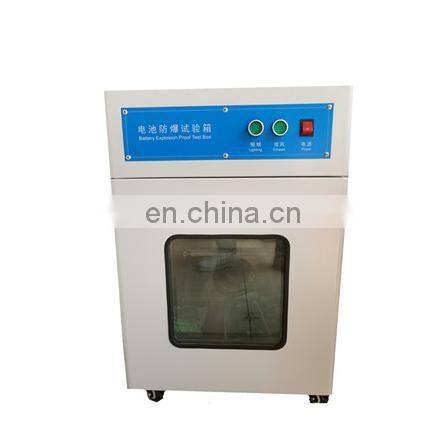

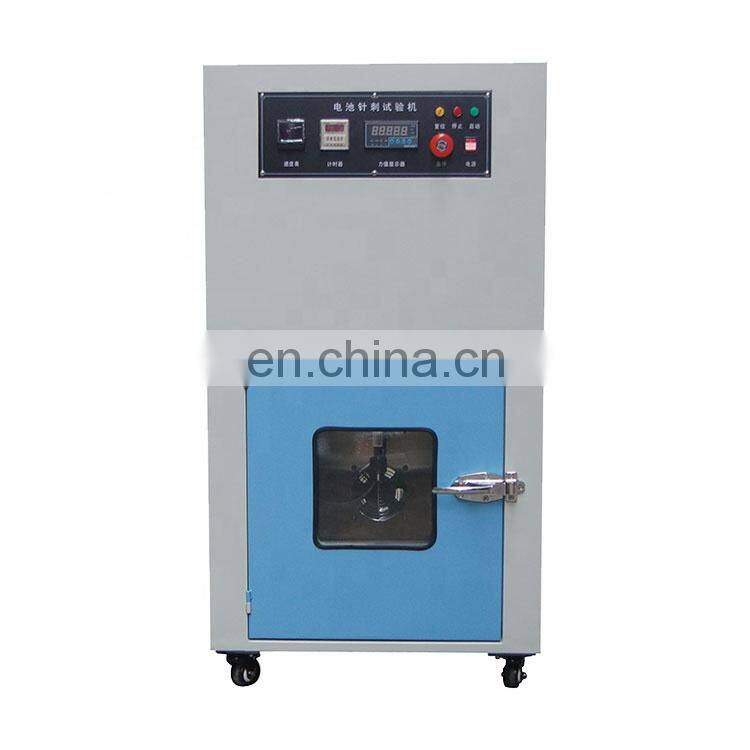

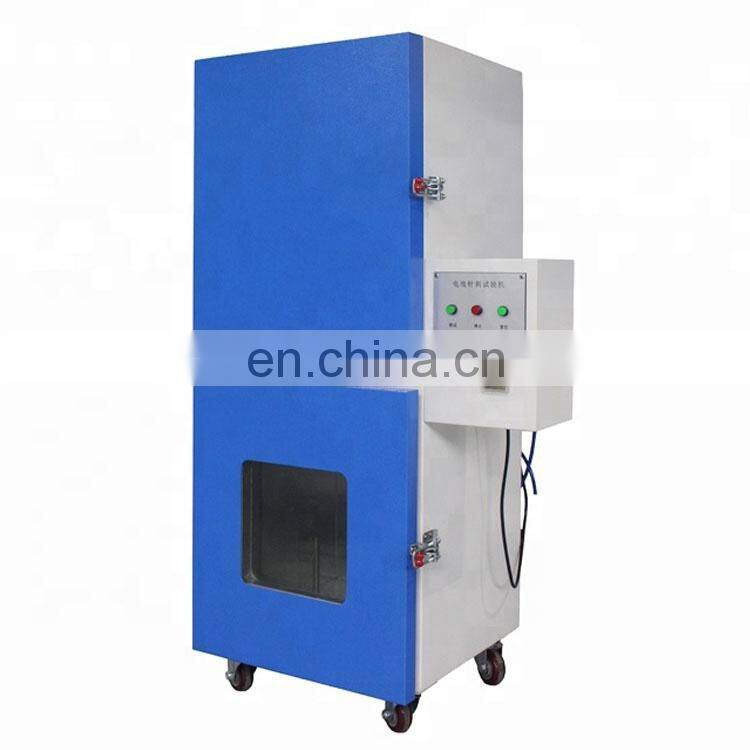

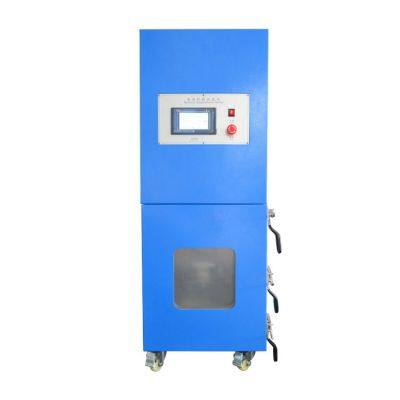

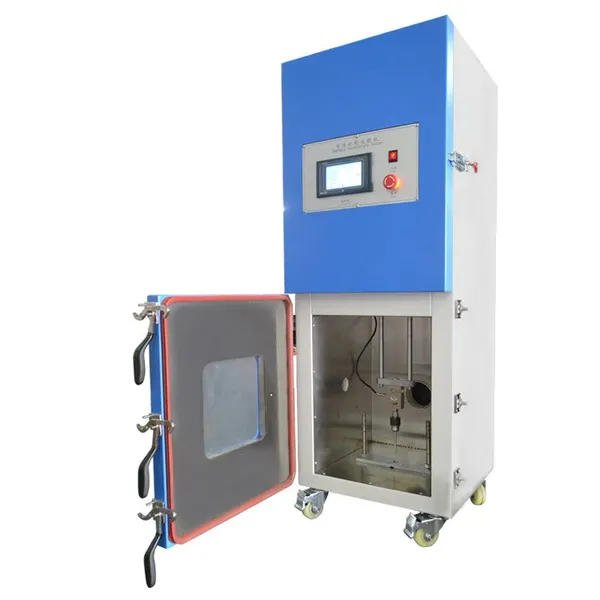

Digital Phone Lithium Battery Nail Puncture Tester is suitable for simulation of various types of batteries in the
transport, storage process by acupuncture. The test shall be carried out at an ambient temperature of 20 ° C
± 5 ° C. The battery of the thermocouple (the contact surface of the thermocouple is fixed on the large surface
of the battery) shall be placed in a fume hood with a stainless steel with a diameter of 2-8 mm The needle at
10mm / s ~ 40mm / s speed piercing the battery maximum surface of the central position, to maintain any time
and observe the test results, the battery does not explode, do not fire for qualified.
Corresponding standard
GB 31241-2014,GB/T 8897.4-2008,YD/T 2344.1-2011,GB/T 21966-2008,MT/T 1051-2007,YD 1268-2003,GB/T 19521.11-2005,YDB 032-2009,UL 1642,UL 2054,IEC 62281,IEC 60086
Product Name |
Digital Phone Lithium Battery Nail Puncture Tester |
steel needle |
φ3mm ~ φ8mm high temperature steel needle, length of 100mm (can be specified). |
acupuncture stroke |
200mm or 300mm |
can clip the battery distance |
200mm |
the unit conversion |
Kg, N, LB |
acupuncture speed |
10 ~ 40mm / s (can be specified) |
acupuncture power |
1 ~ 300Kg (optional) |
force value display |
LCD display or touch screen display |
measuring accuracy |
± 1% |
drive |
cylinder drive or hydraulic drive |
box material |
stainless steel box, stainless steel box cold-rolled steel plate spray treatment |
features |
he rear side of the box design with exhaust and pressure relief device, the box is equipped with lights |
weight |
about 100kg |
power |
single phase, 220V, 50HZ |

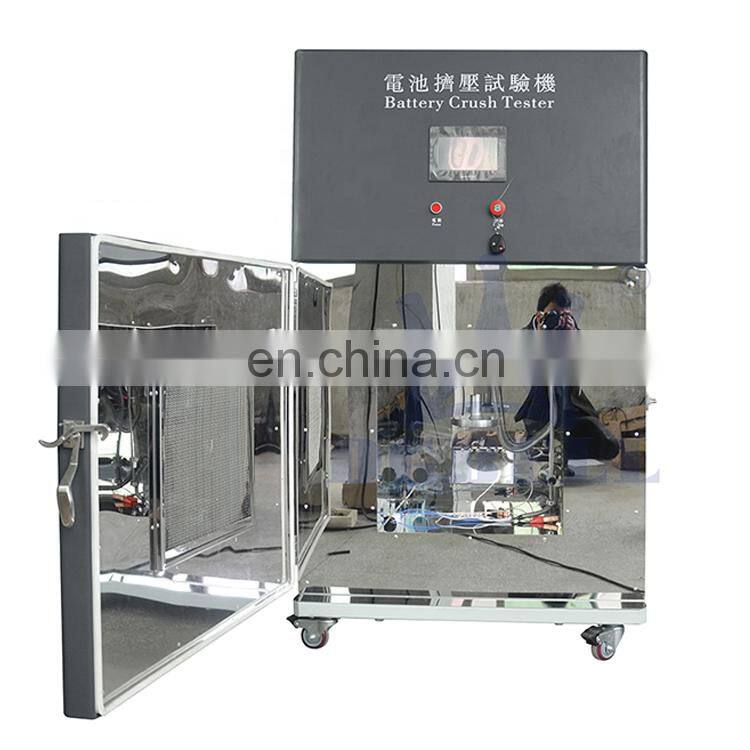

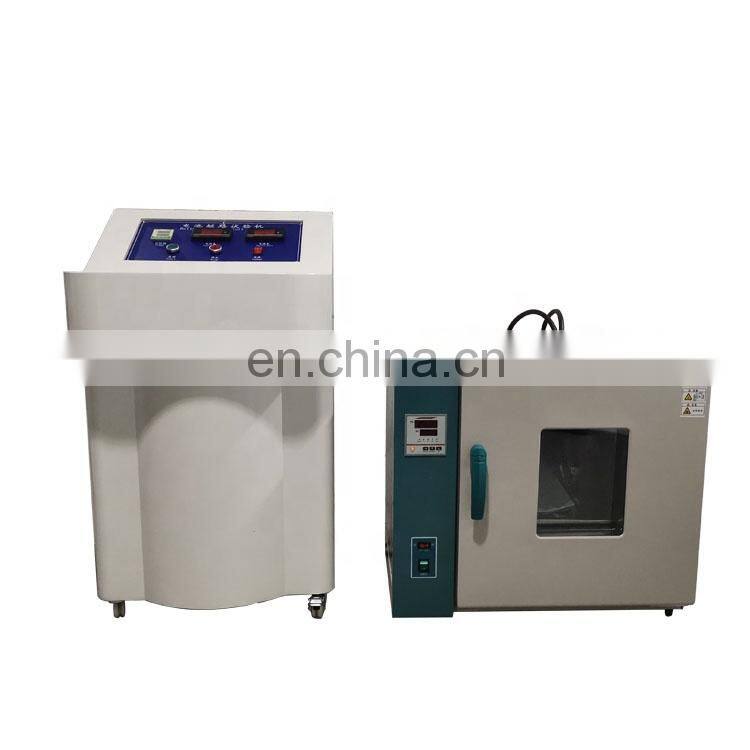

Battery Overcharge Tester Battery squeeze tester

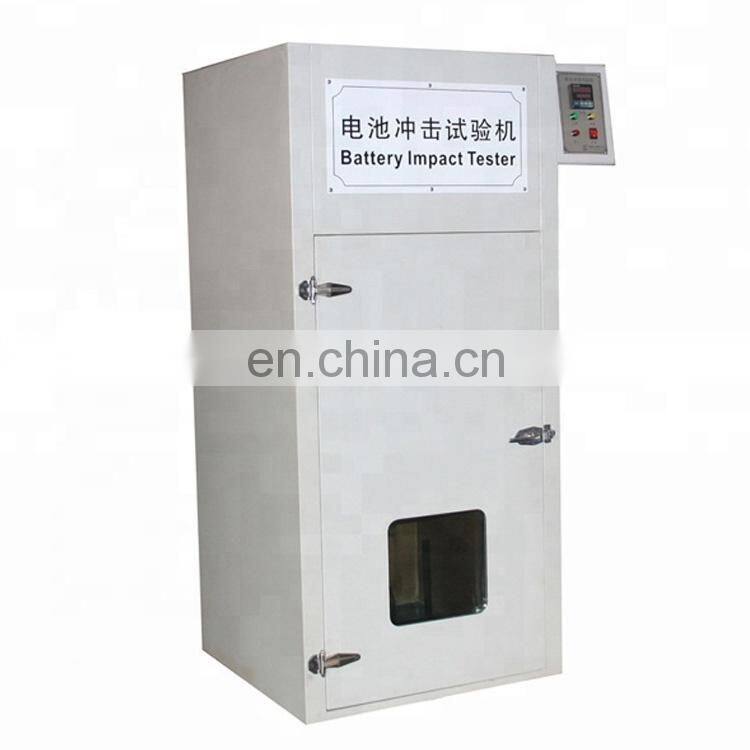

Battery Impact Tester Battery short-circuit tester Battery altitude test chamber
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
