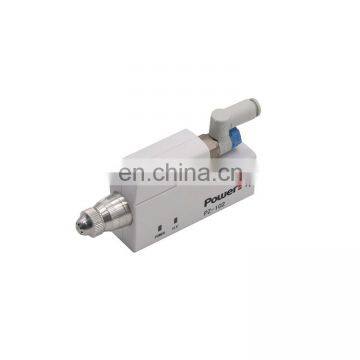

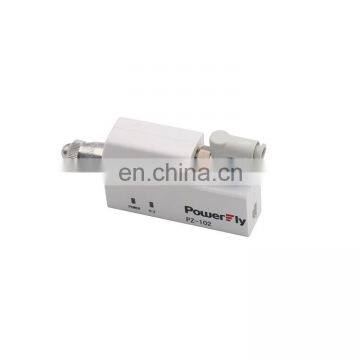

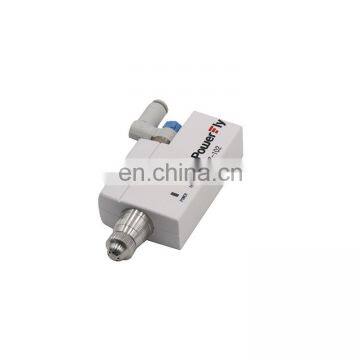

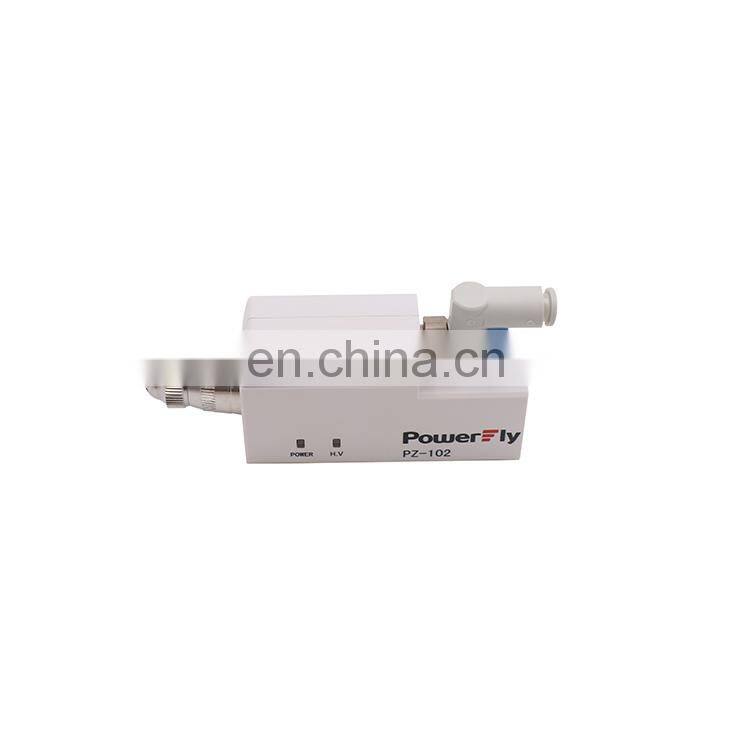

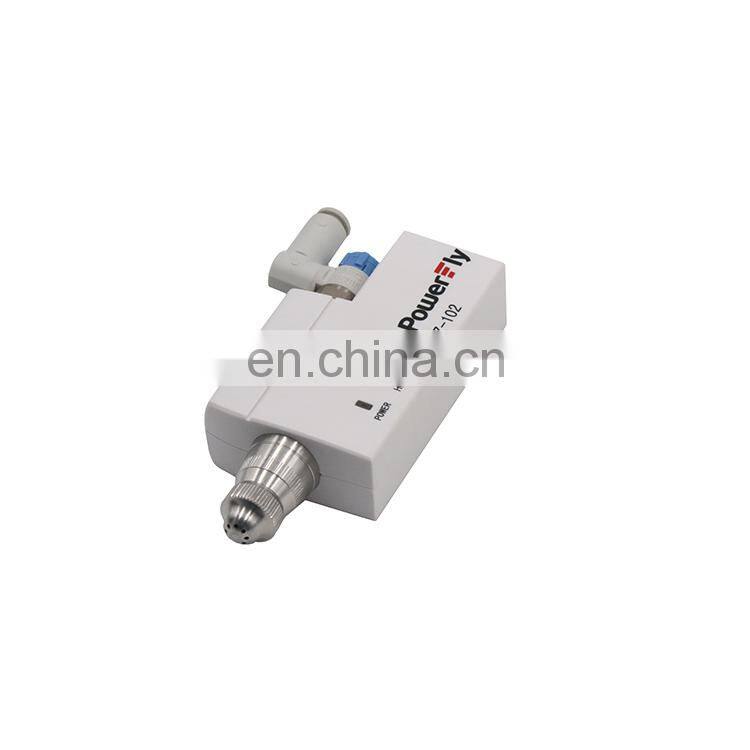

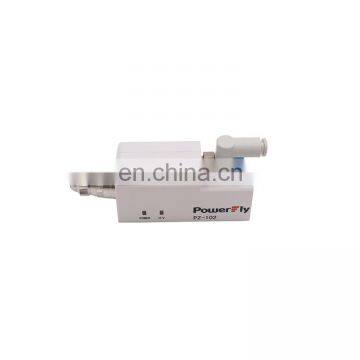

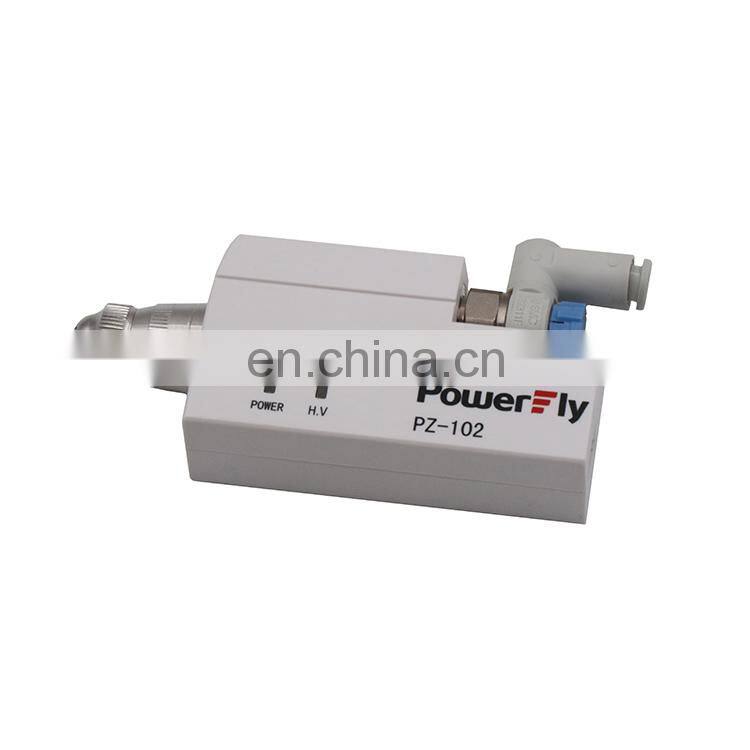

Help CenterElectrostatic Discharge Equipment Ionizing Nozzle
Related Products
-
Coating Bending Apparatus Putty Flexibility TesterUS$ 200 - 550MOQ: 1 Set -
ZONHOW Office and Outdoor Furniture Chair Sandbag Seat Surface Impact Tester Look for Oversea AgentsUS$ 6,090 - 6,990MOQ: 1 Set
-
ZONHOW Office Chair Armrest Back Fatigue Testing Machine/Office Chair Rotating Durability Tester/Chair Fatigue TesterUS$ 6,090 - 6,990MOQ: 1 Set
-
Image Measuring Instrument,video Measuring SystemUS$ 6,290 - 6,990MOQ: 1 Set
-
Portable High Accuracy Industry Instrument Industrial ColorimeterUS$ 300 - 700MOQ: 1 Set
| Technical Parameter | |||
| Product Model | PZ-102 | ||
| High Voltage Input | 2200V | ||
| Current Consumption | 500MA | ||
| LED Indicator | Destaticizing normal operation indicator light | If destaticizing operation is normal, the green indicator light is on. | |
| Destaticizing abnormal operation indicator light | If destaticizing operation is abnormal, the red indicator light is on. | ||
| Airflow Applied | Air (clean air without water or oil) | ||
| Air Pressure Application Range | 0.05-0.5Mpa | ||
| Applied Environment Temperature | 0-40°C (no condensation) | ||
| Applied Environment humidity | 30-70%RH (no water drop condensation) | ||
| Ion Generating Mode | High Frequency AC Corona Discharge Mode | ||
| Ion Balance | 0±10V | ||
| Ozone Concentration | Below 0.03ppm (distance 200mm) | ||
| Piping Connection Caliber | φ6 windpipe | ||
| Size (mm) | 105x57x23mm | ||
| Weight (kg) | 0.1KG | ||
| Test Conditions for Electricity Removal | |||
| Operating Voltage: DC24V Testing Voltage: ±1000V-±100V Environment Temperature: 23°C±2°C | |||
| Distance | 150mm | 300mm | |
| Electrostatic Elimination Time | Positive | 0.5S | 0.8S |
| Negative | 0.6S | 0.9S | |
| Residual voltage | Positive | <0±10V | |
| Negative | |||
Feature:
1.With automatic ion equilibrium system, and ion equilibrium within 0±10v.2.
2.Designed as integrated circuit, for more stable and efficient output of high voltage system.
3..Spray point made by tungsten alloy can be used for a long term with no abrasion and easy change for free maintenance.
4. It has the function of cleaning and reminding the discharge ction:1.The ion generation mode is a high frequency AC corona discharge method.2.The input voltage is 2200v.3.If destaticizing operation is normal, the green indicator light is on.If destaticizing operation is abnormal, the red indicator light is on.4.Compressed air can be used. The range of application of air pressure is 0.05-0.5 Mpa
5.Ozone concentration below 0.003ppm (distance 200mm).6.The ion balance can reach 0±10v.
1.Are your company a trading one or a factory ?
Factory + trade (integration),15 years focusing on test instruments field,7 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
