coating thickness measuring gauge car paint thickness gauge automatic thickness gauge
Overview-coating thickness measuring gauge car paint thickness gauge automatic thickness gauge
ED instrument is a portable,non-destructive,rapid and accurate measurement of coating thickness precision instruments.Widely used in anti-corrosion, electroplating,chemical, automotive,shipbuilding,aviation,light industry,suitable for laboratory,factory and outdoor field use.This product complies with GB/T4957-2003 standards.
The magnetic thickness gage,according to magnetic induction principle,to detect the magnetic metal substrate without damage. ( such as: iron , steel, and the hard magnetic alloy steel, etc.) On the thickness of the non -magnetic coating (such as: zinc , aluminum, chromium, copper , paint, Lang , rubber, paint, etc. ) .
According to the vortex theory,vortex thickness gauge detect the non-magnetic metal without damage.(such as:aluminum , copper, zinc , tin, etc. ) On thickness of the non-conductive coating ( such as paints, the anodic oxide film , ceramics, plastics, rubber, etc. ) .

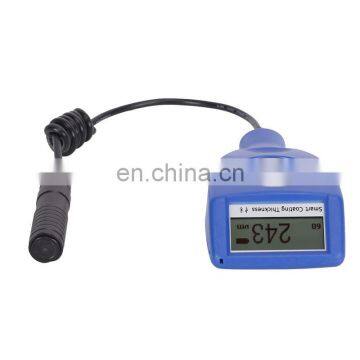

Probe structure-coating thickness measuring gauge car paint thickness gauge automatic thickness gauge

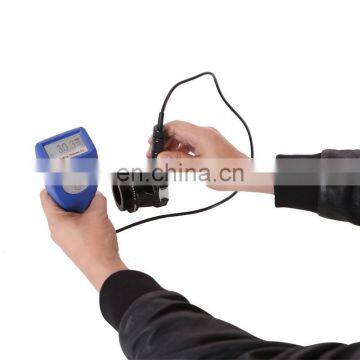

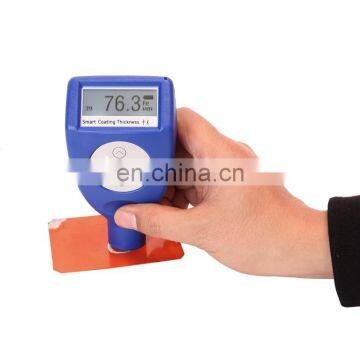

All probes are installed in the casing, in order to ensure safe and stable probe positioning and the probe is touch with pressure probe moderately. V -groove end of the pin can ensure accurate on the convex.You must hold the tube on the probe when measuring, keeping the probe axis perpendicular to the test surface . Tip of the probe,which made of durable hard materials.
Parameter-coating thickness measuring gauge car paint thickness gauge automatic thickness gauge
| Measuring range | F type:0~3000μm |
| error | ±1μm or ±2~4% |
| The minimum radius of curvature | 5mm(convex);25mm(concave) |
| Minimum measuring area | φ20mm |
| Minimum substrate thickness | 0.5mm(F);50μm(N) |
| Display | 4 digi display,Optional backlit |
| Measuring unit | Um-mils optional |
| Calibration methods | standard,1point,2point |
| Power | 2AA batteries |
108Lprogrammable stainles Plastic and Rubber Melt Flow Computer Control dial type Mobile Phones
steel Salt SprayTest Index Mfi universal testing machine Wear Resistance
Apparatus
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information
Our Service
24 Hours online service for your consult. Help choose right model,and a series of service,person,advise.
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
--18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
