Summary: ZONHOW wire flexing swing tester Cable bend Test Machine
-

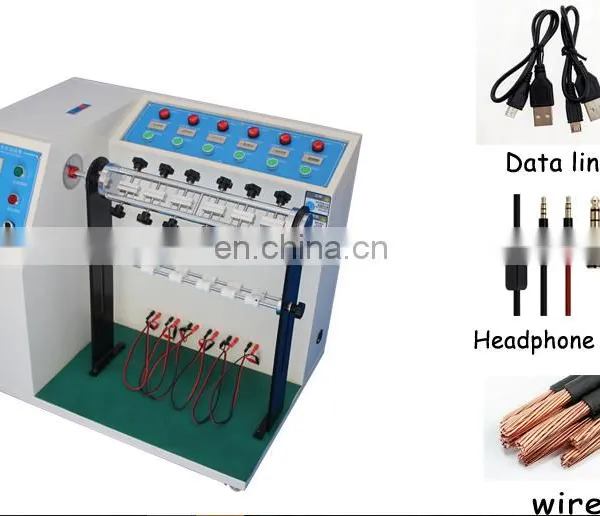

ZONHOW wire flexing swing tester Cable bend Test Machine is suitable for the plug pinouts, power cord
USB cable, headph-one cable, audio cable, headphone cable and other products wire rod
bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and
through a few times, its outage, and view the total number of oscillations, it can automatically count, try to
bend to break when not powering on, and automatically stop operation.
-
Native UL817 related standards such as "cords General safety requirements for components and power supply
cords" provisions and general technical requirements for the headphone wire bending tests of the
standard GB/T14471-93.
Specifications—ZONHOW wire flexing swing tester Cable bend Test Machine
| Product name | ZONHOW wire flexing swing tester Cable bend Test Machine |
| Test stations | 6 groups |
| Bending angle | 0-180 ° adjustable |
| Test speed | 10-60/min |
| Control system | Digital with LCD screen |
| Counter | 0-999999 |
| Load weight | 50, 100, 200, 300, 500g |
| Machine weight | Approx 100kg |
| Power | AC220V, 50HZ |

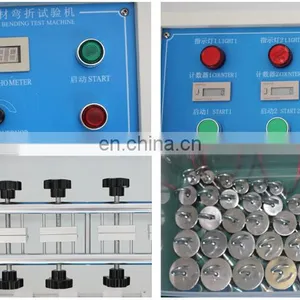

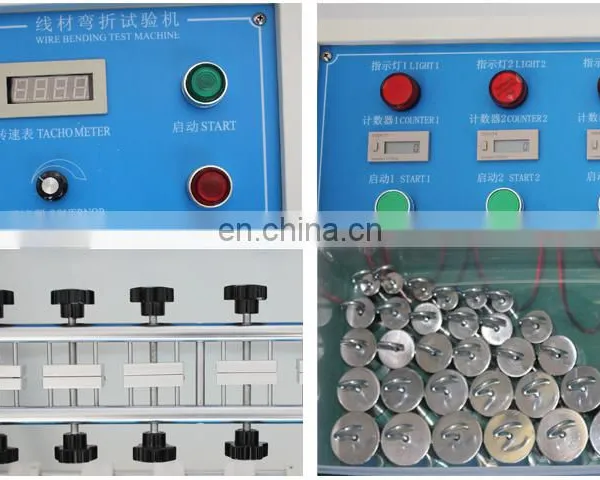

Features —ZONHOW wire flexing swing tester Cable bend Test Machine
1.The Cabinet with electrostatic paint treatment, according to various standards of design, machine design is reasonable, Fastening structure, safe, stable and accurate;
2.Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with power off memory function, convenient and practical;
3.Speed knob adjustable, LCD display, set customers according to their requirements, the user friendly design;
4.Manually adjustable bending angle, indicates the needle indicates the scale dial, to better regulation;
5.Six stations while working independently, respectively, counting, one line, the corresponding counter; stop counting machine as usual test, improve testing efficiency;
6.Six groups of nonslip, easy to damage materials specially designed handle, clamping products more convenient, fast;
7.Test rods can be adjusted up and down, according to the standard requirements, and test better;
8.The distribution of weights with hook loading, multiple stacking, hanging more convenient.
Real imagines-ZONHOW wire flexing swing tester Cable bend Test Machine
Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
