Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test

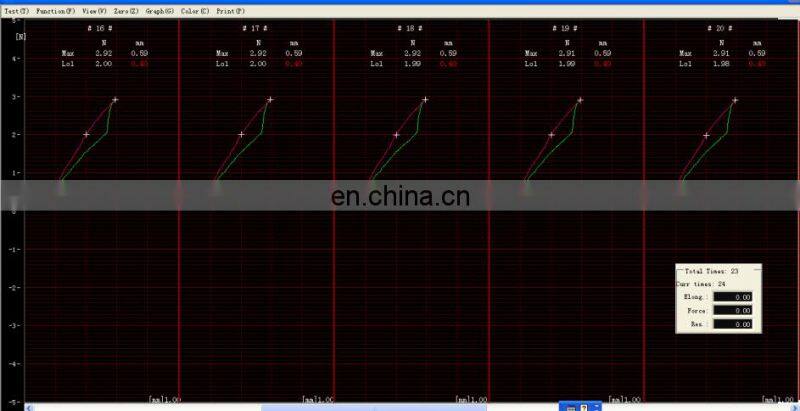

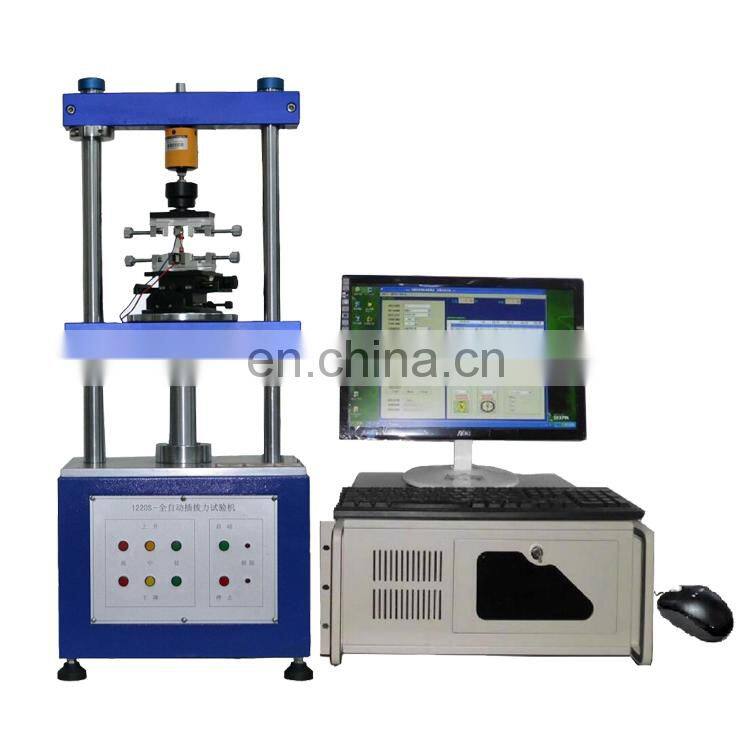

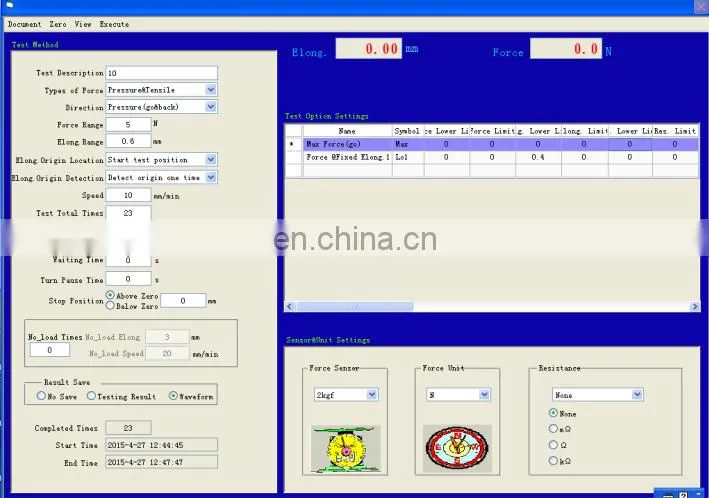

1.All the testing informations are setting by the computer and it can automatically store: testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.
2. High precise:Load resolution:0.01gf,Displacement:0.001mm
3. Adopting high precision explosion Load Cell,Repeated errors:0.01%
4. High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can eliminate noise and resonance.
5.Can enter the upper and lower limit conditions and automatically rebel the test results Passed or Fail, the maximum, minimum, average and standard deviation, etc.
Specifications:
Load capacity | 2kg, 5kg, 20kg, 50kg(optional) | |
Unit switch over | gf, kgf, lbf, N | |
Resolution | 0.001kg | |
Load precision | ±0.2% | |
Maximum travel | 150mm | |
Test speed | 0~200mm/min | |
Speed precision | 0.5% | |

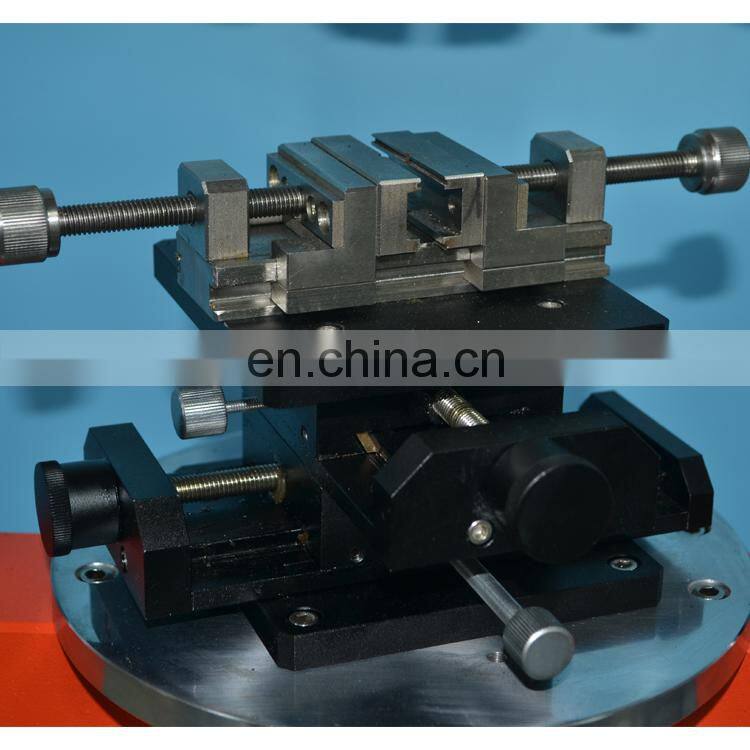

X,Y axis movement range | 0~75mm | |
Displacement resolution | 0.01mm | |
Dynamical System | Panasonic servo motor | |
Size | 360*260*940mm | |
Weight | 70kg | |
Power | 220V,50HZ / Customized | |
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
