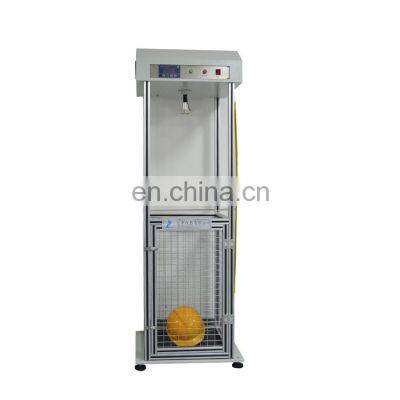

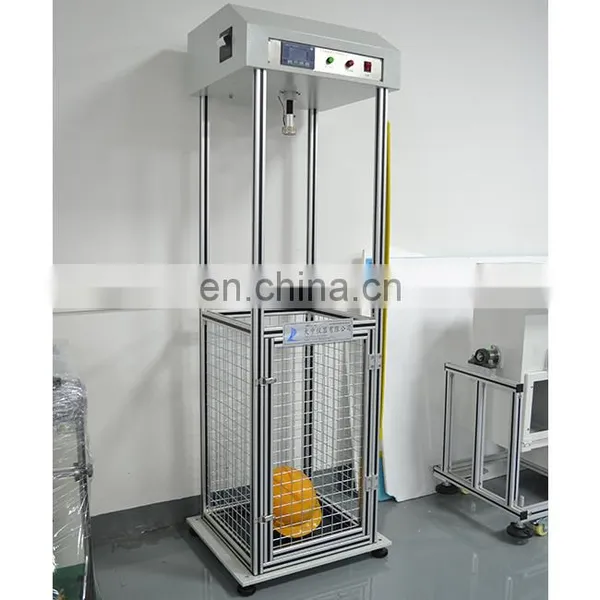

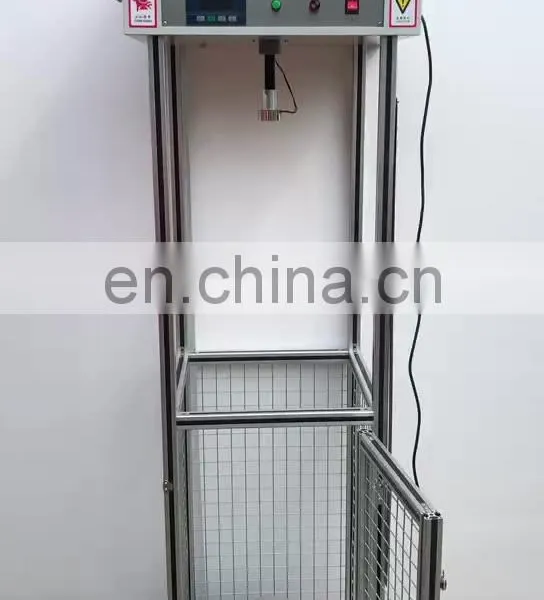

Safty Helmet Impact Test Safety Helmet With High Impact Resistance Safety Helmet Testing Machines
US$ 2,190 - 2,890
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZONHOW
Place of Origin:
Guangdong, China
Model Number:
DZ-800
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Helmet Drop Impact Equipment Helmet Antistatic Tester Crash Helmet TesterUS$ 2,190 - 2,890MOQ: 1 Set -
Safety Helmet Impact Tester Safety Helmet Impact Test Safety Helmet Impact Resistance TesterUS$ 2,370 - 2,970MOQ: 1 Set
-
Industrial Conveyor Belt Metal Detector Price, Good Price Non Ferrous / Ferrous / SUS DetectorUS$ 2,500 - 4,190MOQ: 1 Set
-
High Precision Intelligent Arch Foil Packing Food Metal Detector FactoryUS$ 2,500 - 4,190MOQ: 1 Set
-
Safety Gloves Cutting Resistance Testing MachineUS$ 2,570 - 3,270MOQ: 1 Set
Brand Name
ZONHOW
Place of Origin
Guangdong, China
Model Number
DZ-800
Product Description
Safty helmet impact test safety helmet with high impact resistance safety helmet testing machines
Summary:

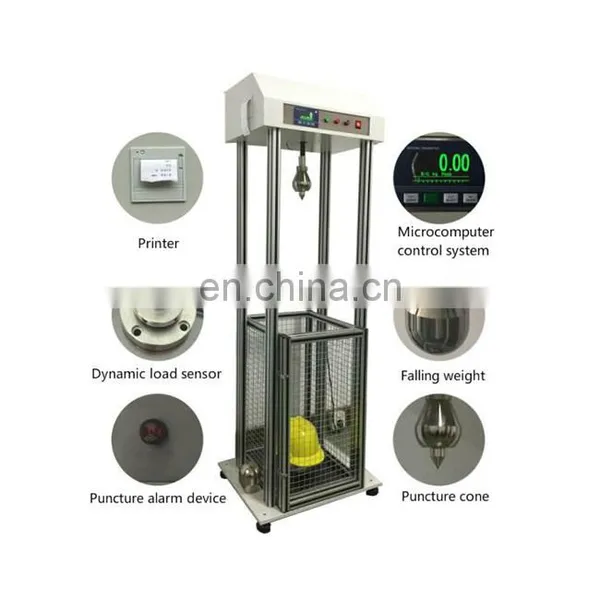

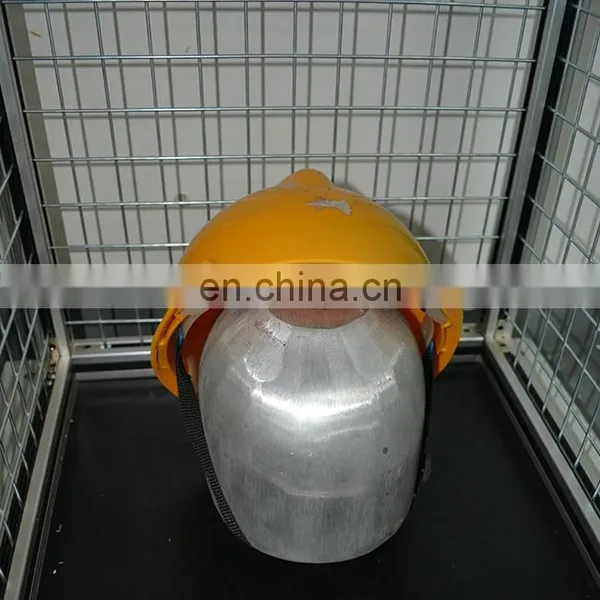

This machine specially test fire helmets impact resistance performance, can also do the anti-penetration properties test. Determination of fire helmets impact resistance performance, put the special head model with a good helmet (aluminium magnesium alloy materials) installed in the high sensitivity of the sensor, then use the 5kg hammer from 1 m height of impact, and the high sensitivity strength induction device detect the impact instantaneous force value to judge helmet shock absorption performance is good or bad.
Principle:
Determination of the helmet antipenetration properties test, first fix the head model on the base, make head model,Steel cone and electrical contact display device to form a closed circuit, then put 3kg steel cone from 1 m height fall to puncture helmet, after puncture observation electrical contact display device. Judge helmet anti-penetration properties is good or bad.
Specifications:
| Item | Safety Helmet Impact Puncture Tester |
| Drop Hammer | Impact Hammber, Puncture Hammber |
| Impact Hammber Weight | 5 + 0.01kg |
| Radius of Impact Hammer | R=48mm |
| Material of Impact Hammer | 45 # steel |
| Force Sensor | 20KN |
| Test Range | 2%-100%FS |
| Min. Reading | 1N |
| Puncture Hammer Weight | 3 + 0.05kg |
| Puncture Hammer Cone Angle | 60 ° |
| Radius of Puncture Hammer Cone | R=0.5mm |
| Length of Puncture Hammer | 40mm |
| Max. Diameter of Puncture Hammer | 28mm |
| Drop Height | 1000mm±5mm |
| Power | 220V, 50Hz |
Standard:
GB / T 2812-2006: Test method for safety helmet
ISO 3873: Industrial safety helmets
GB2811-2007: Safety Helmet
Other international Safety Helmet Test Method
Features:
1, Drop hammer and hammer to replace simple operation.
2,With automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.
3, The puncture hammer adopt a closed circuit, will alarm after puncture
4, wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.
5, LED digital display, auto-save maximum force.
6, The height of impact hammer and puncture hammber can be adjustable.
