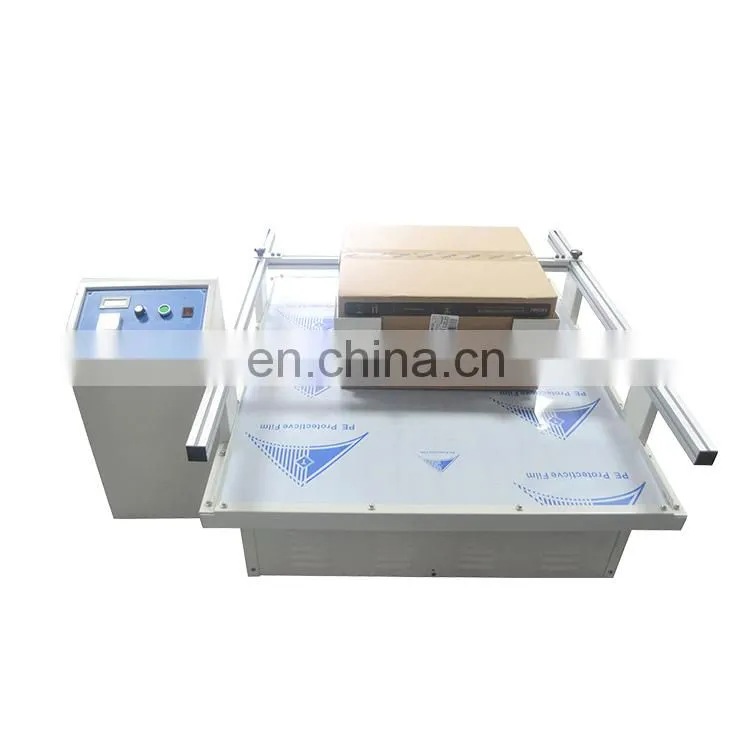

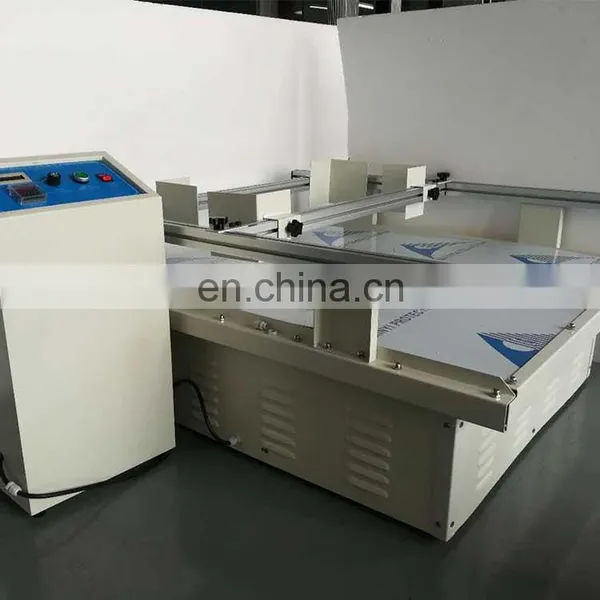

Carton Transportation Vibration Test Table/ Vibrating Table Manufacturer
Usage-- Carton Transportation Vibration Test Table/ Vibrating Table
Package Transport Vibration Stability Tester is according to the United States and the European transport standards, and reference to the similar equipment improvement. Using eccentric bearing in rotating elliptical trajectory to simulate the vehicle or ship goods produced in the process of transportation vibration and impact.
Will test platform is fixed on the eccentric bearing, when eccentric bearing rotation, the test platform of the
whole plane will produce elliptic fluctuation before and after exercise, adjustment with eccentric shaft rotation
speed is equal to the speed of car or ship.
Features-- Carton Transportation Vibration Test Table/ Vibrating Table
- Have the cushion start function, in the work the noise is extremely low.

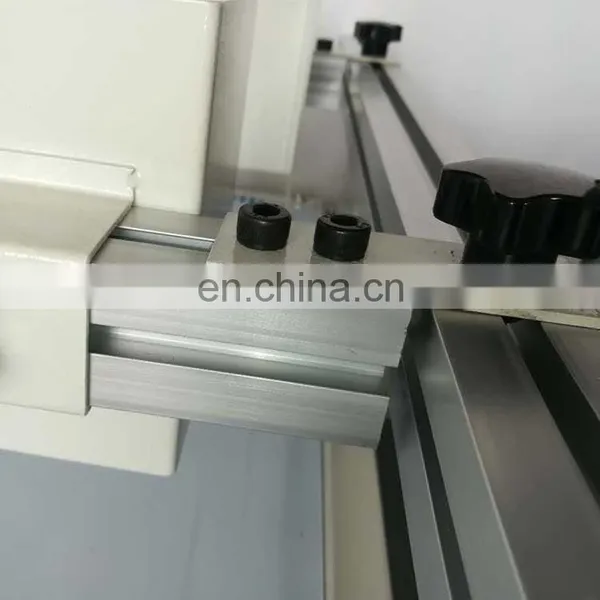

- Unique slideway structure makes clamping specimen conveniently and reliably.

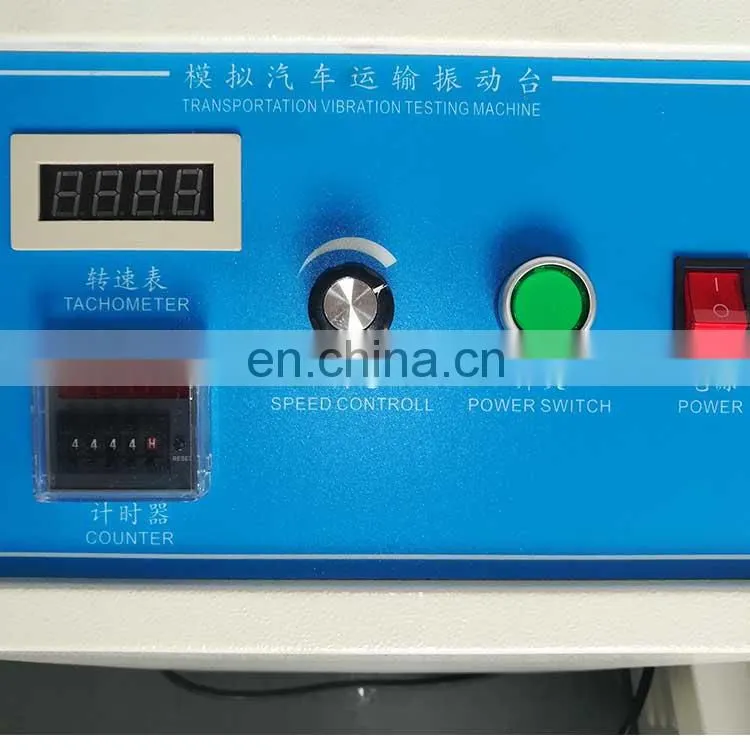

- Digit display controller is precise and simple.
- Timer fuction is elegent appearance.
Speed |
100-300RPM |
Speed display |
0.1RPM |
Vibration method |
reciprocation type |
Vibration amplitude |
1 inch(25.4mm) +15%, to agree with ISTA/EN71 transportation standard |
Max load |
100KG |
Effective test area |
1000×1200mm |
Speed accuracy |
≤ ±3RPM |
Time setting range |
0~99.99hour |
Motor power |
1HP |
Max current |
5A |
Power |
220V 50Hz single phase |
Dimention |
130×140×70cm |
Carton Compression Tester Bursting Strength Tester Edge Ring Crush Tester Simulated Transport Vibration Tester
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
