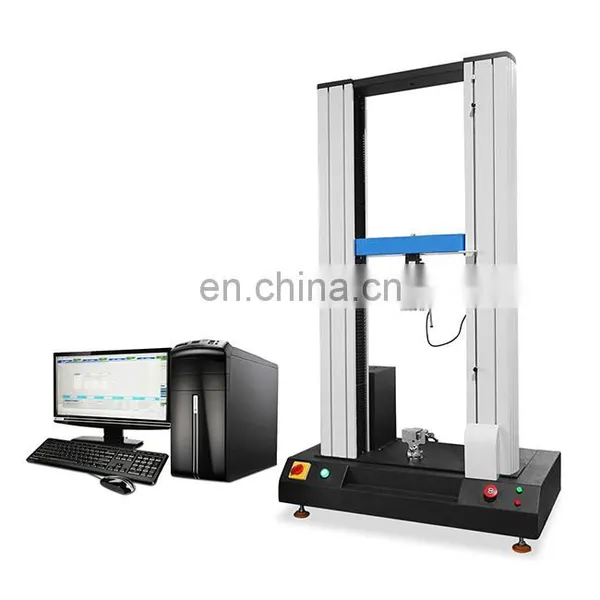

Imada pull tester

Name: Imada pull tester
Brand: Haida
Price: USD $4,000 - 4,000 / Set

FOB Price

USD $4,000 - $4,000 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Haida	Place of Origin:	Guangdong, China	Model Number:	HD-B604B-S
Power:	Electronic

Product Description

Imada pull tester

Product details

Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy, 2000kg (500,1000kg are opti
Load accuracy	0.5% F.S
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1200mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~500mm/min (adjustable)
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Product Keywords	imada pull tester,hounsfield tensile strength testing machine,horizontal tensile test equipment

Tensile testing machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials

Standard Features

Item	Description
Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional)
Load accuracy	0.5% F.S
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1200mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm²) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
