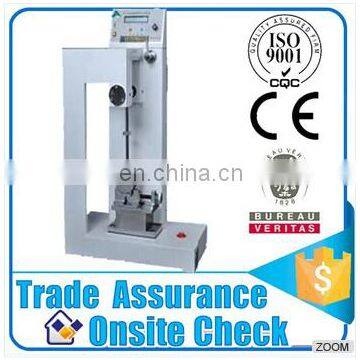

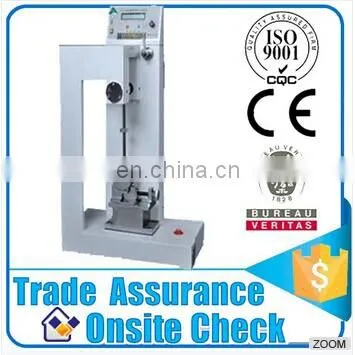

Charpy Impact Test Equipment / Charpy Impact Tester / Impact Testing Machine
The usage:
Izod& Charpy Impact Tester is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber reinforced plastics, ceramics, cast stone, insulation material and other non-metal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.
Specification of Izod& Charpy Impact Tester:
Impact speed |
3.4m/s |
Impact energy |
5.5J,4.0J |
Pendulum angle |
150° |
Impact center distance |
0.332m |
Pendulum power distance |
Pd5.5=2.8355N.m |
Distance between impact blade and jaw |
22mm±0.2mm |
Blade filleted radius |
R=0.8mm±0.2mm
|
Energy loss |
4.0J ≤0.05J;5.5J ≤0.10J |
Temperature |
15—35°C |
Power |
220V/50Hz/200W |
Standard:
ISO 180,ASTM-D256,JIS-K7110,JB/T 8761.
Maintenance of Izod& Charpy Impact Tester :
a. Clean: keep the machine clear and clean it with the cotton fabric before using every time.
b. Rust resistance: spray a layer of rust-resistant oil on the metal part of the machine every week. (and clean it after 2 hours )
c. Lube: fill lube (common one) at the rotating part of the machine (screw) every month regularly.
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
