Single-Wing Carton Drop Testing Machine / Package Carton Box Drop Impact Tester price
Design standard:
ASTM D5276-98, ISTA 1A (free drop)
Description:

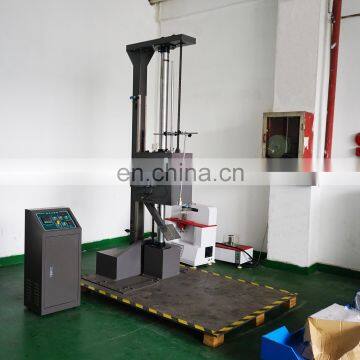

Carton Drop Testing Machinecomprises an impact base plate and an electric cabinet, wherein a steel vertical frame is arranged on the impact base plate; a screw rod is arranged in the vertical frame; a lifting seat is arranged outside the screw rod in a penetrating manner; a connecting rod is arranged on the lifting seat; a fixed plate is arranged on the connecting rod; a lifting bar is arranged on the fixed plate; an E-shaped support frame capable of moving up and down is arranged on the lower side of the lifting bar; a U-shaped fender rod is also arranged on the vertical frame; and a display screen is arranged on the electric cabinet. When the zero-drop test machine is in use, the electric cabinet is controlled to enable a package part fixed between the lifting bar and the support frame to drop to the impact base plate, so as to carry out impact test on edges, corners and planes; the height of the lifting bar can be adjusted according to actual needs, so as to acquire test parameters in different situations; the package part has low probability of slippage during tests; and the zero-drop test machine is particularly suitable for doing drop tests on cubic package parts, and is cleaner, more environment-friendly and space-saving than the traditional hydraulic lifting structure. The utility model discloses a zero-drop test machine.
The principle:
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Purpose:
Carton Drop Testing Machine is designed to test the product packaging fall by the damage, and evaluation of the transportation handling the Wings Drop Testing Machines in China process of impact resistance strength.
Characteristics:
Carton Drop Testing Machine can be a face of packaging, horn, edges as free drop test, equipped with digital display highly display and using decoder the high tracking, which can accurately gives products drop height, and the drop height error less than 2% or 10 mm. The machine adopts single arm double column frame structure, with electric reset, electric control drop and electric lift device, easy to use; Unique hydraulic buffer device to greatly improve the machine service life, stability and security. The single arm Settings, can be easily placed products, drop impact Angle face and floor plane Angle error is less than or equal to 5 º.
Specifications:
1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sale
Main technical parameters:
Max. sample weight | 100KG |
Sample size | Three kinds of carton size in your file ”Inq Haida” |
Drop platform area | As per three kinds of carton size in your file “Inq Haida” |
Drop height | 100-1000mm |
Drop test | Corners, edges , faces of sample |
Drive mode | Motor drive |
Protection device | Induction type protection device |
Panel material | 45# steel, solid steel plate |
Arm material | 45# steel |
Height display | Digital |
Operate mode | PLC |
Driving mode | Taiwan Linear slider and copper guide |
Drop method | Electromagnetic and pneumatic comprehensive support |
Machine dimension (L×W×H) | 2000*1900*2450mm including control box (estimated) |
Package | Strong wooden case |
Package Dimension (L×W×H) | 2300*2200*2650mm (estimated) |
Package Weight | 800KG |
Power | Single phase, 220V, 50/60 Hz |

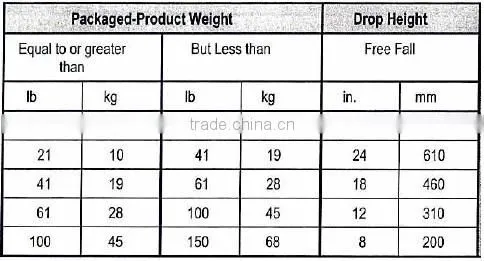

ISTA 1A:
Relationship of weight and drop height
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
