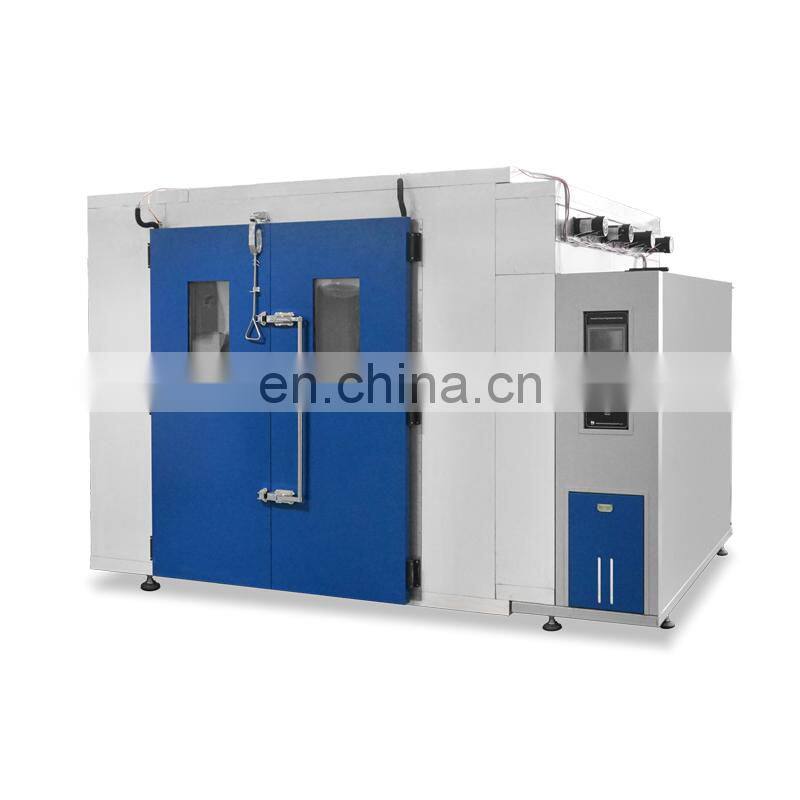

Environment test equipment Walk-IN Temperature And Humidity Test Chamber/Testing Room
Walk-in Chamber
Specifications
specification |
HD-E705-7-1 |
temperature range |
-50C TO +100C |
humidity range |
40% TO 98% RH |
dimension (internal) (w x d x h) |
1500 X 1500 X 3000 MM |
dimension (external) (w x d x h) |
2850 X 1700 X 3200 MM |
ramp |
variable, temp. 0~5c / min & humidity 0~5%/min in average, no load |
accuracy |
temp. ±1c, humidity ±2.5%rh |
interior walls |
stainless steel 304 |
exterior walls |
cold rolled stell plate with baking finish |
temperature & humidity measurement and controller |
32 bit control and monitoring system. interface facility with rs232 programmable temp. humid. controller |
viewing window |
multi pane glass window size |
port holes |
50 mm diameter for wire routing |
power supply requirement |
three phase, ac380 v ± 10 %, 50 hz |
sound pressure level |
<72DB (A) |
condenser cooling |
water cooled |
general technical specification
thermal cyclic chamber

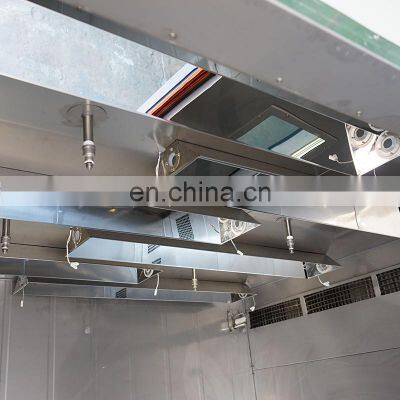

chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space

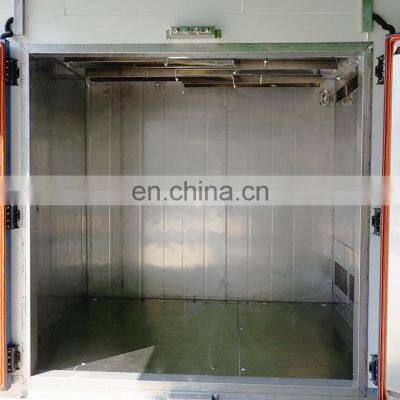

interior
the conditioning with air circulation to maintain uniform temperatur
interior have provision for arranging stainless steel
insulation
insulation is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam
cooling system
cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
door
lockable front opening, with double door latch easy to open
with silicon gasket for perfect sealing
viewing window
viewing interlock is sealed to avoid leakage and provided with heating provision to prevent condensation
illumination
inernallight on viewing windows with external control
temperature measuring and control system
the temperature measuring and control system adopts microprocessor system and provided with touch panel for monitoring and digital display:
supplied with support software
software is capable to visualize and graphical anallyse the measured & recorded value.
graphical representation and digital display and control of set and actual values
digital input and display of temperature in degree centigrade
fault diagnosis system
120 stroage of programmes
have adjustable safety cut-out against high and low temperature
facility to programme temperature measuring using sensor pt100
recorder & pc connectivity
standard rs -232 interface for pc connectivity
rs-232 cable for pc connectivity along with pc connectivity software

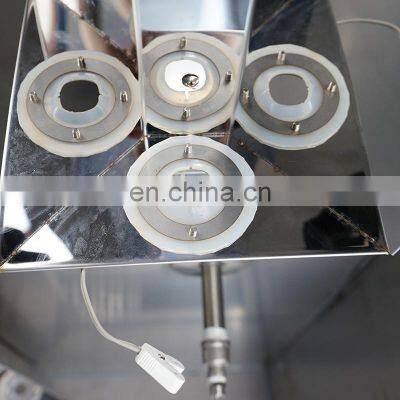

port holes
each port hole provided with silicon sealing bunker (plug)
electrical panel
all power connectors, protection devices power control logic built in the control panel integrated to the chamber
all electrical cables tagged with id number
all electrical function circuit equipped with its own safety device that shuts down the relevant circuit or the entire test chamber if a faulty develops
all electrical systems comply with recognized technical regulation as well as with the accident prevention regulations.
standard protection
protective feature to be provided as follows:
over load trip & earth leakage trip for complete chamber
over load trip for compressors, heaters and motors
over temperature cut-off for compressors
heater be cut off, if air circulation blowers are off
operating system
detailed operating & maintanance manual
operational instruction
complete list parts
preventive maintenance procedure
trouble shooting measures
electrical circuit diagrams
testing sample
solor panels, size 2mh * 1mw * 1md, size 2mh * 1mw * 1md

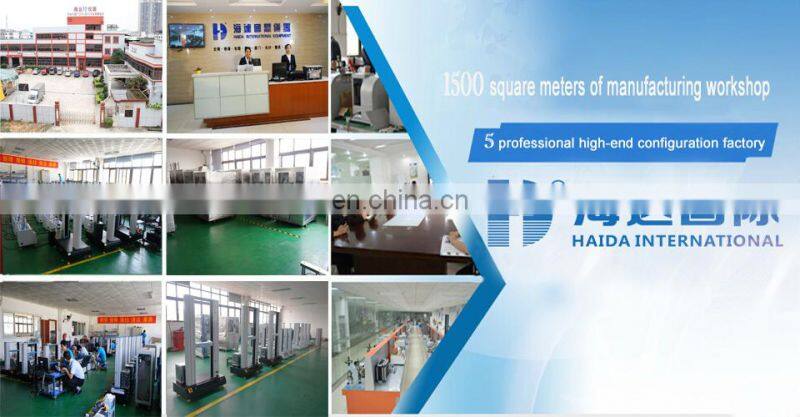

Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing andalso has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
2. Middle service
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
--Maintenance plan
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
